Status Power OK
ASI 2
ASI 4
ASI 6
ASI 1
ASI 3
ASI 5
ETH 2 ETH 1
Top Corner
Status Power OK
ASI 2
ASI 4
ASI 6
ASI 1
ASI 3
ASI 5
ETH 2 ETH 1
Top Corner
The board has other LEDs that may or may not be illuminated. They are intended for
engineering debug only.
Front Switches

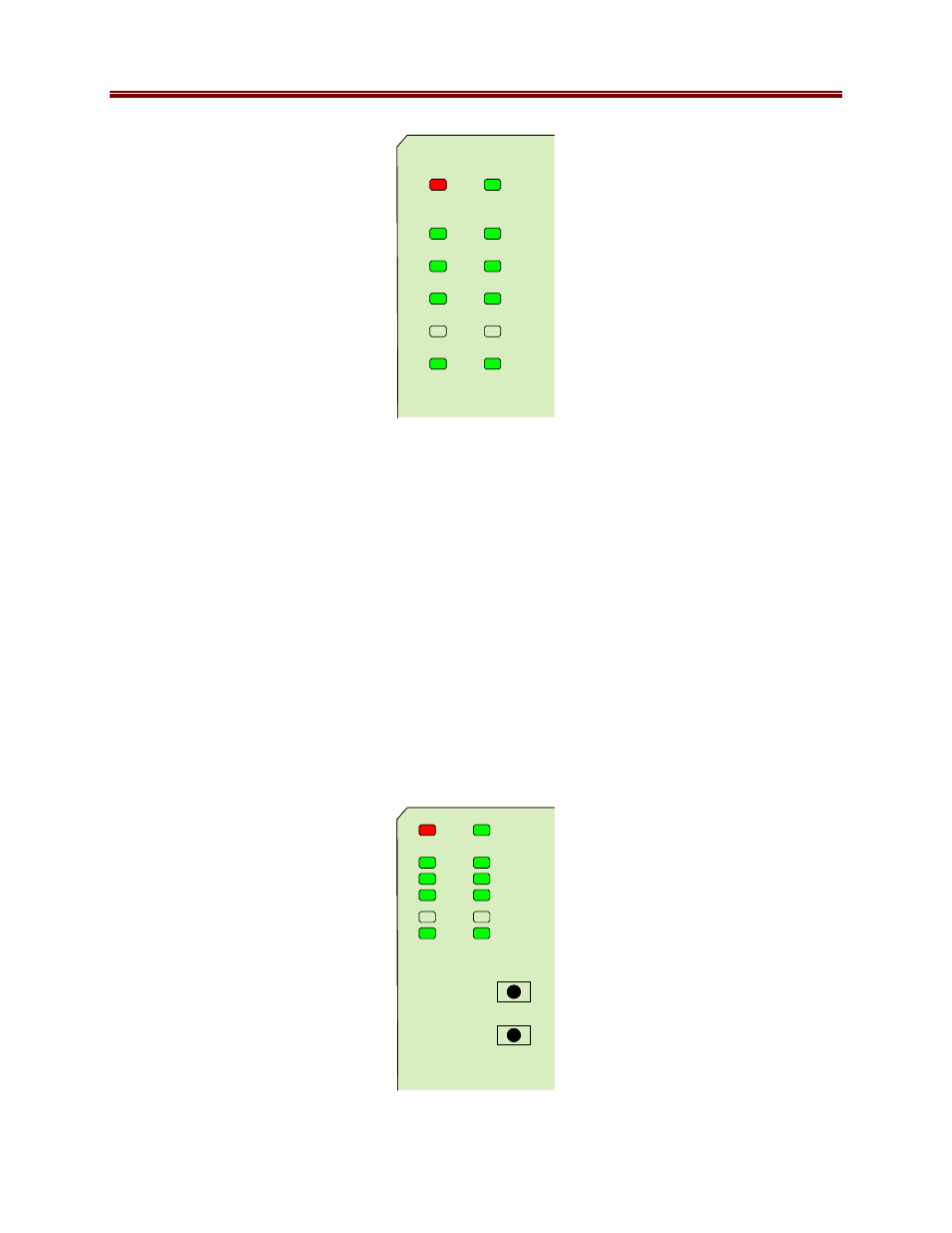

The board has two pushbutton-type switches in the front, just below the LEDs, as depicted
below. Their operation is as follows:
•
Default IP Switch: This switch is used to recover the board in the unlikely case of a
corrupted or broken firmware update. In most cases, the 9220 will detect the error and
automatically fall back into the factory-default firmware load. If it does not, pull the card
out, press and hold this switch, and push the card back into the frame while still holding
the switch. You can release the switch once the Status LED turns orange. This action
causes the card to revert to the factory-default firmware.
•
Reset Switch: Pressing this pushbutton switch causes the card to reset.
Default IP
Reset
Top Corner
Default IP
Reset
Top Corner
