Configuration Tab
Statistics Tab

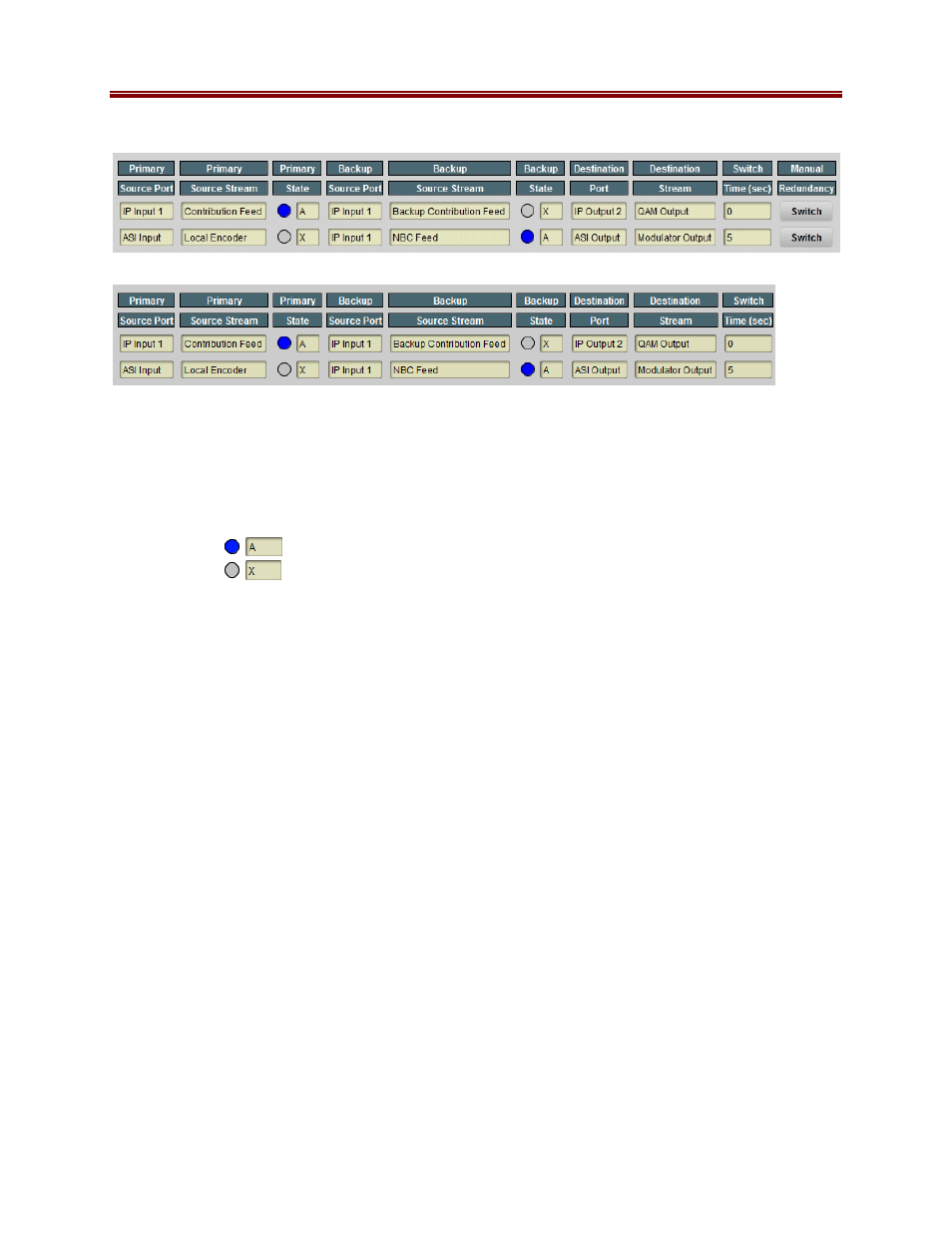

The fields in the table are:
•
Primary/Backup Source Port/Source Stream: These fields contain the configured
port/stream for the primary and backup connection sources.
•
Primary/Backup State: This indicates which setting is online (active) and which setting
is offline. The indicator has the following possible values:
: This indicates that the setting is online (active).
: This indicates that the setting is offline (inactive).
•
Switch Time (sec): This indicates the automatic redundancy switch time, in seconds. If
manual redundancy is configured, the value displayed here is 0 (zero). In the example
above, Port 1/1 is in automatic redundancy with a switch time of 5 seconds, while
Port 1/2 is in manual redundancy.
•
Manual Redundancy Switch: This control is in the configuration tab only. If you click
on this button, a manual redundancy switch is initiated. The button is available for both
manual and automatic redundancy modes. Note that, if the port is in automatic
redundancy mode, and you manually switch it to a stream that is not running, it will
switch back to the running stream after the configured switch time.
