19 9220-UM V1.1
ASI Ports
The 9220 card has 6 ASI ports that can be individually configured as inputs or outputs. Unused
ASI ports can be disabled. This tab is used to configure and manage the ASI Ports.

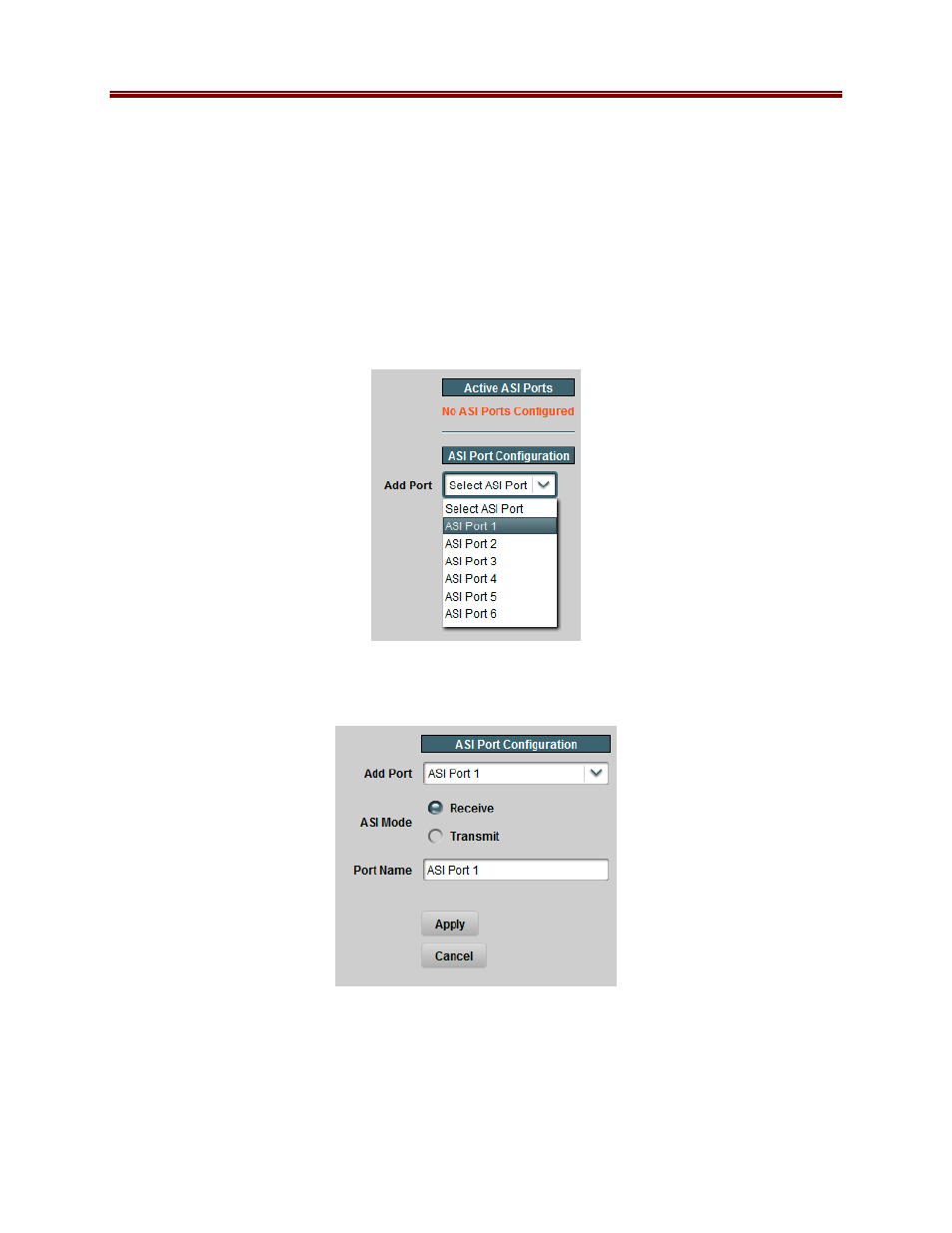

ASI Ports: Configuration Tab
If the 9220 has not yet been configured, all the ASI ports are disabled. The appearance of the
Configuration Tab is:
From the Add Port drop down list, select the port you wish to configure. The port configuration
defaults to Receive (ASI Input):
All 9220 inputs and outputs can be assigned a user-defined Port Name. This name is used to
identify the port later when making connections. Use any descriptive name suitable for your
application, or accept the default.
