IP Output
Parameters
Connection
Parameters
IP Output
Parameters
Connection
Parameters

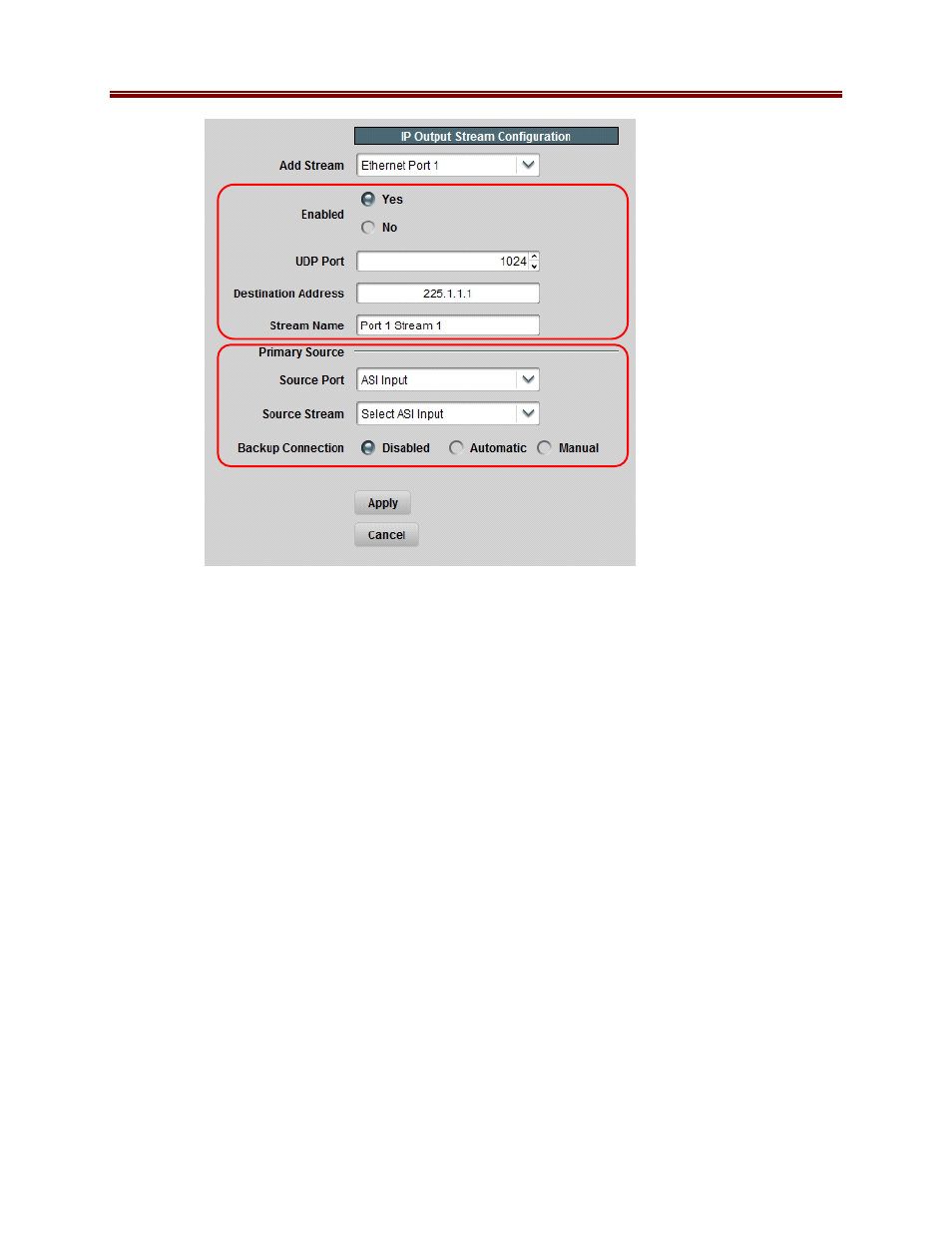

The Basic View configuration parameters are as follows:
•
Enabled: This allows the output stream to be enabled or disabled. If it is disabled, no
packet transmission takes place. This feature is provided for testing purposes (i.e.,
temporarily disable an output for fault-finding). Most users will leave the stream
enabled.
•
UDP Port: selects the UDP port to transmit to. Valid values are between 1 and 65535.
Note that, in traditional IP networks, UDP ports between 1 and 1023 are reserved for
administrative uses. It is recommended to use UDP ports 1024 and higher. The 9220,
however, will accept any legal value.
•
Destination Address: selects the IP address to transmit to. Any unicast or multicast
address can be entered here, with the exception of the loopback range (127.0.0.0 to
127.255.255.255). The 9220 will also accept the broadcast IP address of
255.255.255.255, and will transmit the packets as Ethernet broadcasts. Use of
broadcasts, however, is strongly discouraged.
•
Stream Name: All 9220 input and output ports can be assigned a user-defined name.
This name is used to identify the port later when making connections. Use any
descriptive name suitable for your application, or accept the default.
If the Advanced View is selected, four more parameters are available for configuration:
