46 9220-UM V1.1
Configuration Tab
Statistics Tab
The fields in the table are:
•
Primary/Backup Port: Configured UDP port for primary/backup.
•
Primary/Backup Address: Configured reception IP address for primary/backup.
•
Primary/Backup Source: Configured source IP address for primary/backup. If the
setting is to receive from any source, this field will contain the word Any.
•
Primary/Backup State: This indicates which setting is online (active) and which setting
is offline. The indicator has the following possible values:
: This indicates that the setting is online (active).
: This indicates that the setting is offline (inactive).
•
Switch Time (sec): This indicates the automatic redundancy switch time, in seconds. If
manual redundancy is configured, the value displayed here is 0 (zero). In the example
above, Port 1/1 is in automatic redundancy with a switch time of 5 seconds, while
Port 1/2 is in manual redundancy.
•
Manual Redundancy Switch: This control is in the configuration tab only. If you click
on this button, a manual redundancy switch is initiated. The button is available for both
manual and automatic redundancy modes. Note that, if the port is in automatic
redundancy mode, and you manually switch it to a stream that is not running, it will
switch back to the running stream after the configured switch time.
Connection Redundancy

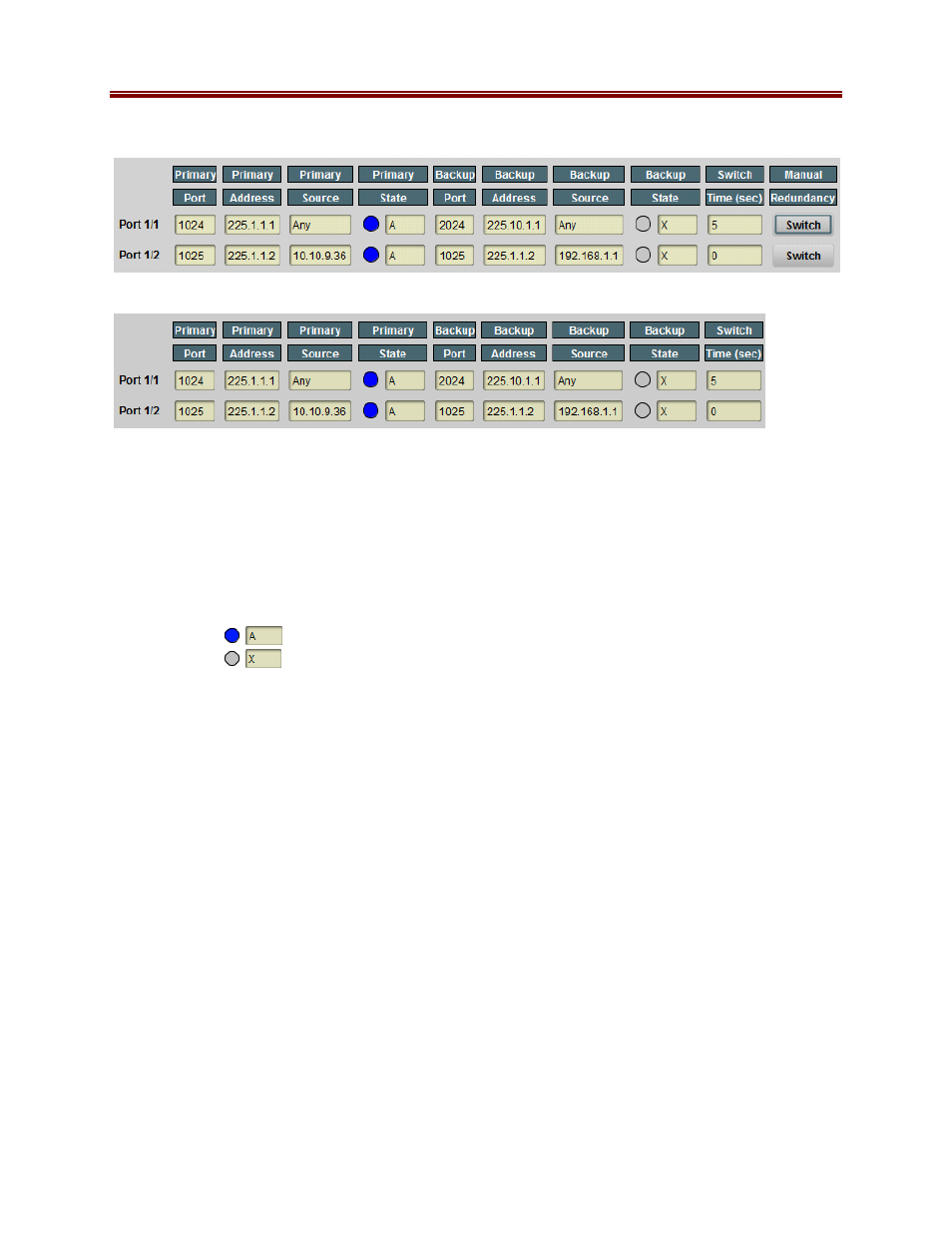

A populated Address/Port Redundancy table is depicted below. The only difference between the
Configuration and Statistics area is that the former includes a Switch button; otherwise they are
the same.
