16 9220-UM V1.1
Network Tab
The Network Tab allows for configuration/monitoring of the two Ethernet ports.

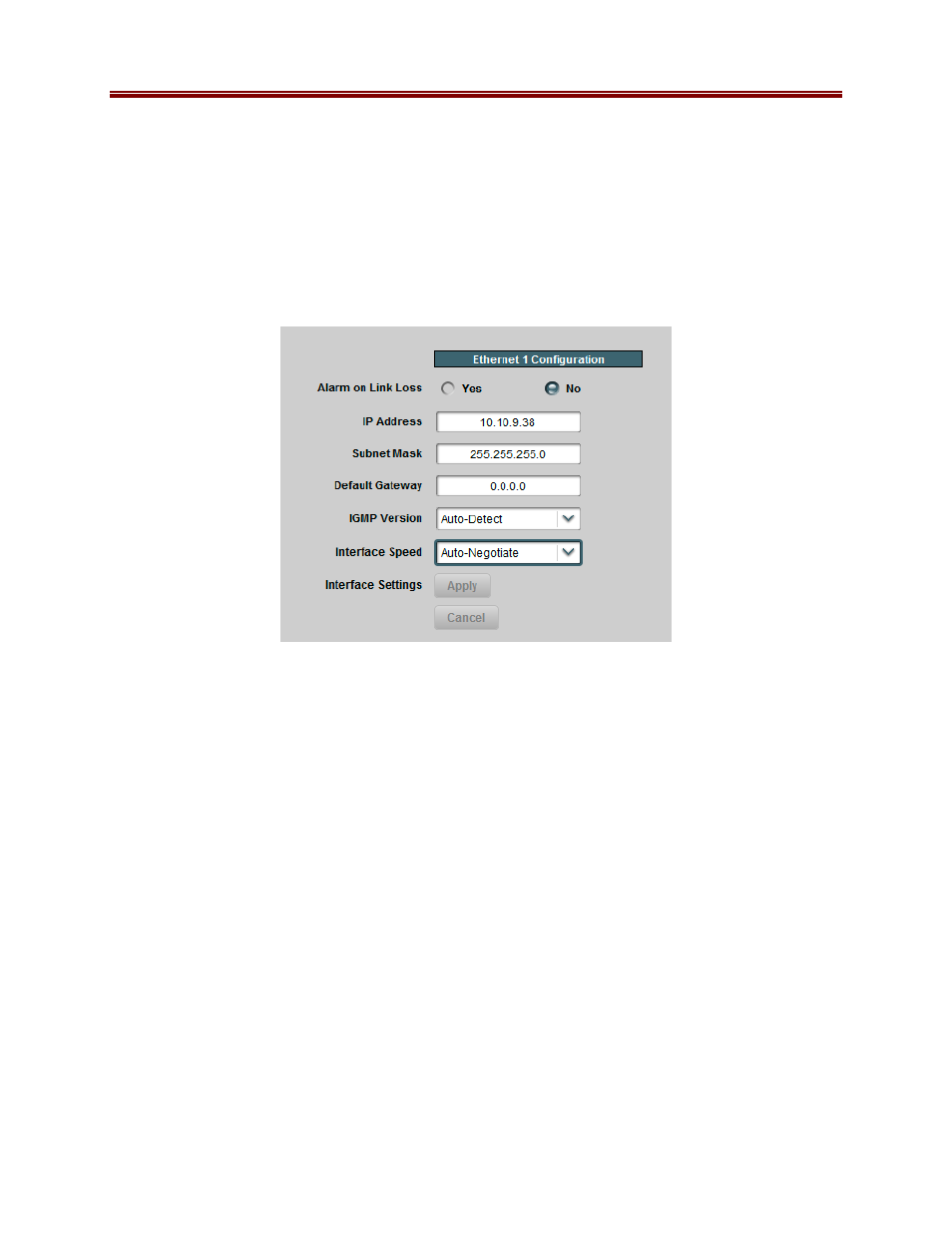

Network Configuration Tab
The Network Configuration Tab is used to set the individual parameters for each of the Ethernet
ports.
The following parameters can be configured:
•
Alarm on Link Loss: If set to Yes, the card will raise an alarm if this Ethernet interface
looses link. The Card State indicator in Dashboard™ and the front Status LED will both
be red. If set to No, the card will still report loss of link in the Statistics page but no
alarm will be raised. It is recommended to turn on the alarm for ports that are in use;
only turn it off if you do not plan to connect that port to a network.
•
IP Address: Enter the desired IP address for this Ethernet port.
•
Subnet Mask: Enter the desired subnet mask for this Ethernet port.
•
Default Gateway: Enter the desired default gateway for this Ethernet port, or 0.0.0.0 if
no gateway is available.
•
Interface Settings: If you make any changes to the IP Address, Subnet Mask and/or
Default Gateway fields, the Apply and Cancel buttons become active. The changes only
take effect when you press the Apply button. Pressing the Cancel button reverts the
fields back to their original values. Note that the 9220 will check the consistency of the
data entered and will reject invalid combinations. Once the Apply button is pressed, a
status message appears just below the Cancel button, as follows:
