Redundancy
The Redundancy Tab provides a unified view of all configured primary/backup pairs, for both
Address/Port Redundancy and Connection Redundancy. The following features are available on
this tab:
•
Display of all primary/backup parameters.
•
For each primary/backup pair, indication of which setting is online (active).
•
Ability to manually switch the redundancy.

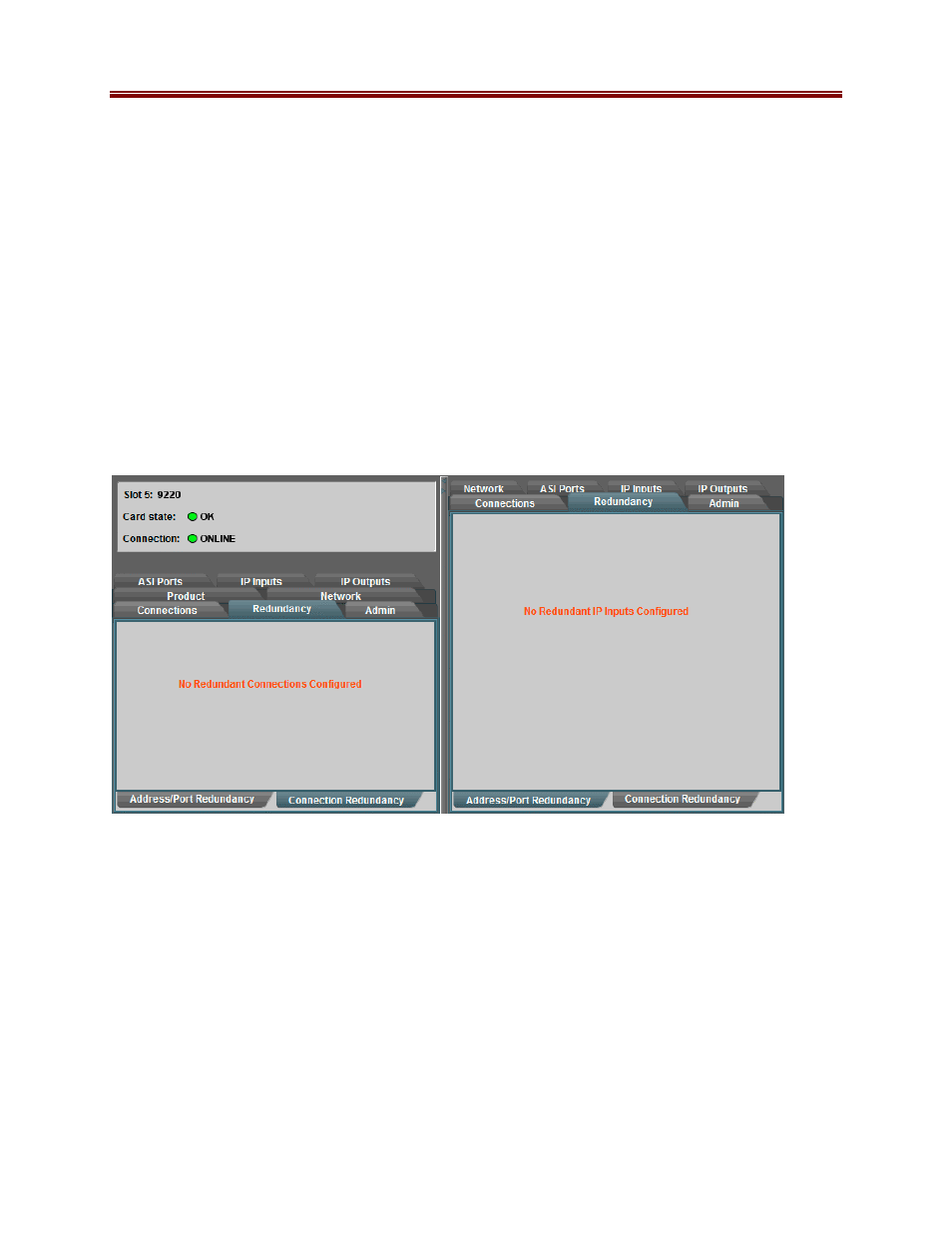

The Configuration and Statistics Redundancy Tabs are depicted below. Note that Address/Port
Redundancy and Connection Redundancy have their own individual tabs, both in the Statistics
and in the Configuration areas.
As redundant address/port and connection pairs are configured, they automatically appear in the
tabs above.
Address/Port Redundancy
A populated Address/Port Redundancy table is depicted below. The only difference between the
Configuration and Statistics area is that the former includes a Switch button; otherwise they are
the same.
