39 9220-UM V1.1
•

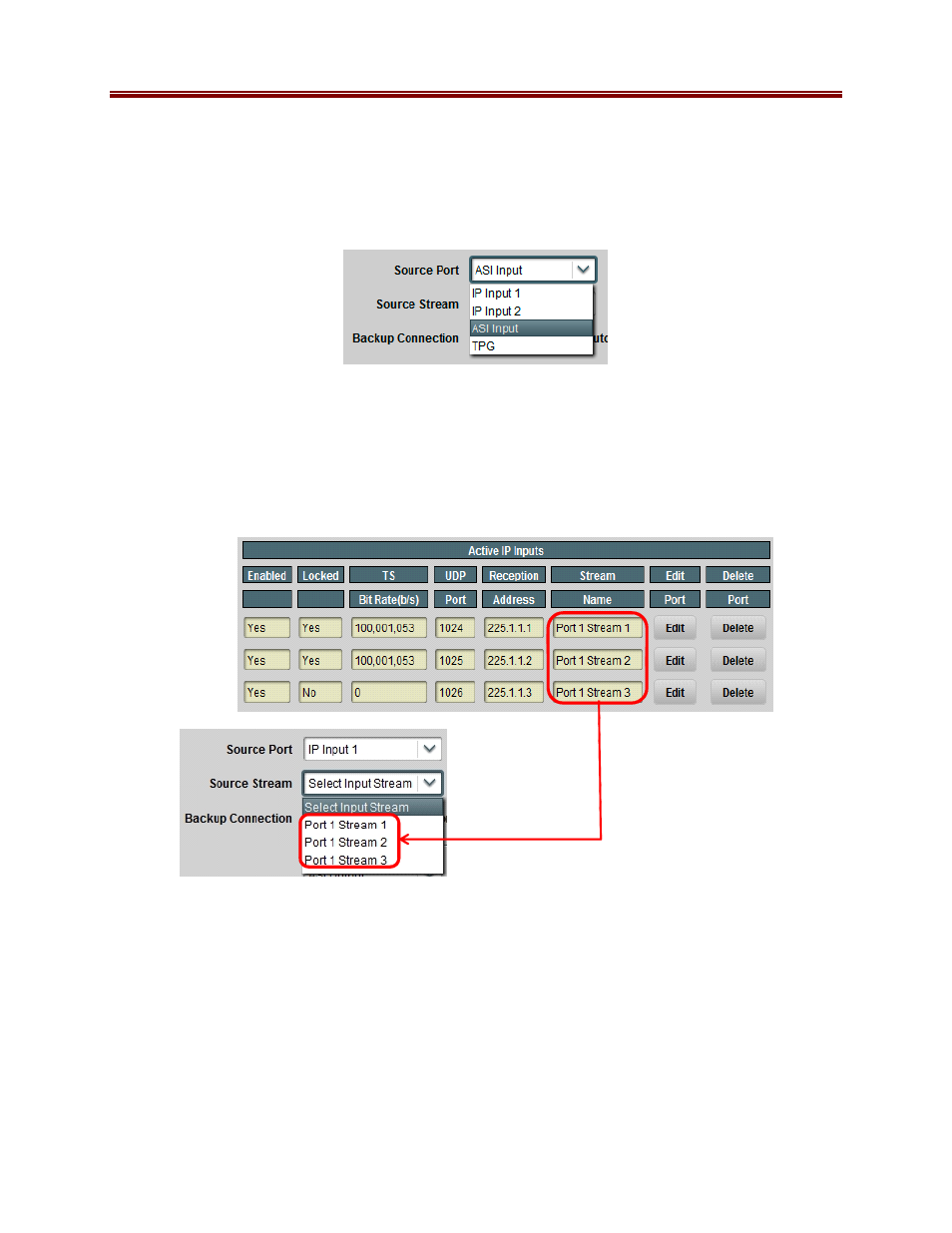

Step 1: Select the port type in the Source Port drop-down list. The options are:
o IP Input 1: UDP/IP Input streams from Ethernet Port 1.
o IP Input 2: UDP/IP Input streams from Ethernet Port 2.
o ASI Input: ASI ports configured as inputs
o TPG: Test Packet Generator (internal test stream).
•
Step 2: Select the individual stream in the Source Stream drop-down list. The names
presented here are the Stream Names configured when the ports were created. If no
streams were configured in that port, no options will be presented. This process is
illustrated below.
Default Names:
