Page 35
30
PNEG-1204 Enclosed Belt Conveyors
Loading

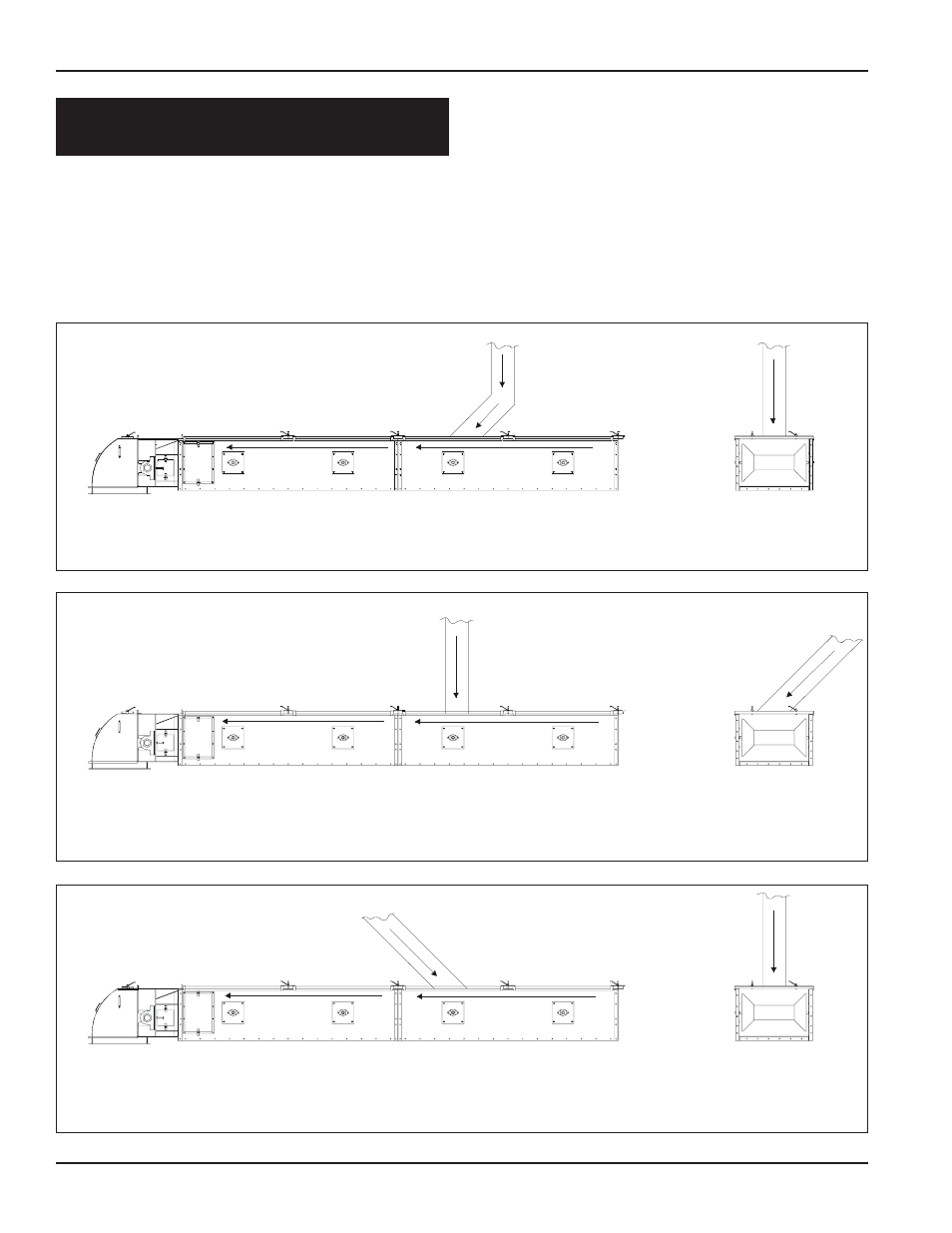

1. Below are the recommended and incorrect
ways to attach spouting to load the conveyor.
Contact the GSI Material Handling Depart-
ment if there are any questions about loading
conditions.
RECOMMENDED
AVOID
INCORRECT
SPOUTING
Grain stream centered on the belt. Grain moving in the
same direction and at the same speed as the belt.
This causes excessive wear of belting and off center
loading on belt which causes spillage. This method of
loading results in grain tumbling on belt.
Grain should be loaded in the same direction
of belt travel and at the same speed.
Grain Flow
Belt Direction
Grain Flow
Belt Direction
Grain Flow
Belt Direction
