PNEG-1204 Enclosed Belt Conveyors

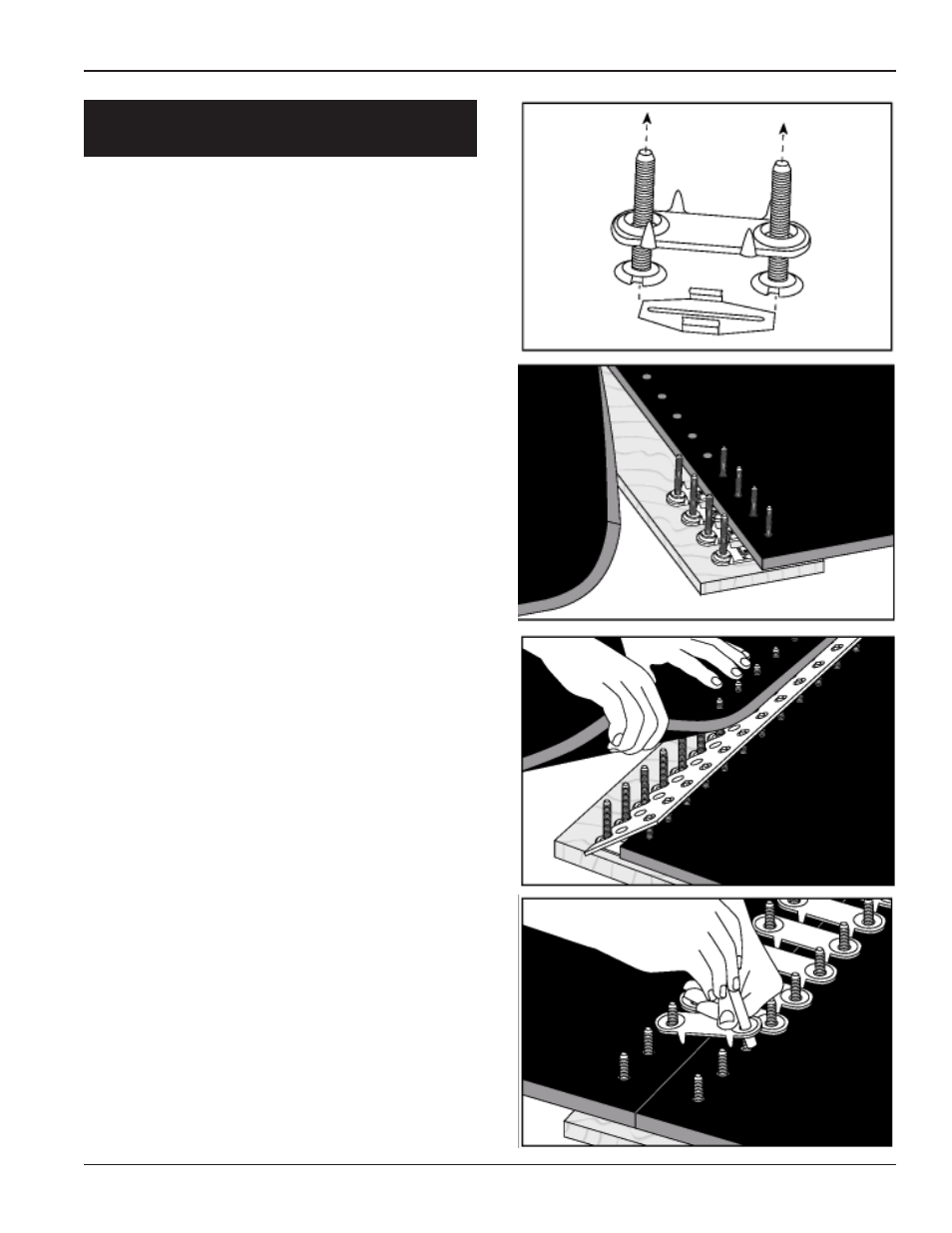

Belting Assembly
3. To assemble bottom plate insert 2 bolts and
attach clip.
4. Fold one belt end back and insert bolts in
one row of holes.
5. Align bolts with template teeth and place the
other belt end over bolts. Remove template.
6. Place top plates over bolts using bolt horn.
SPLICING THE BELT
(Cont.)
3
4
5
6
