15 PNEG-1204 Enclosed Belt Conveyors

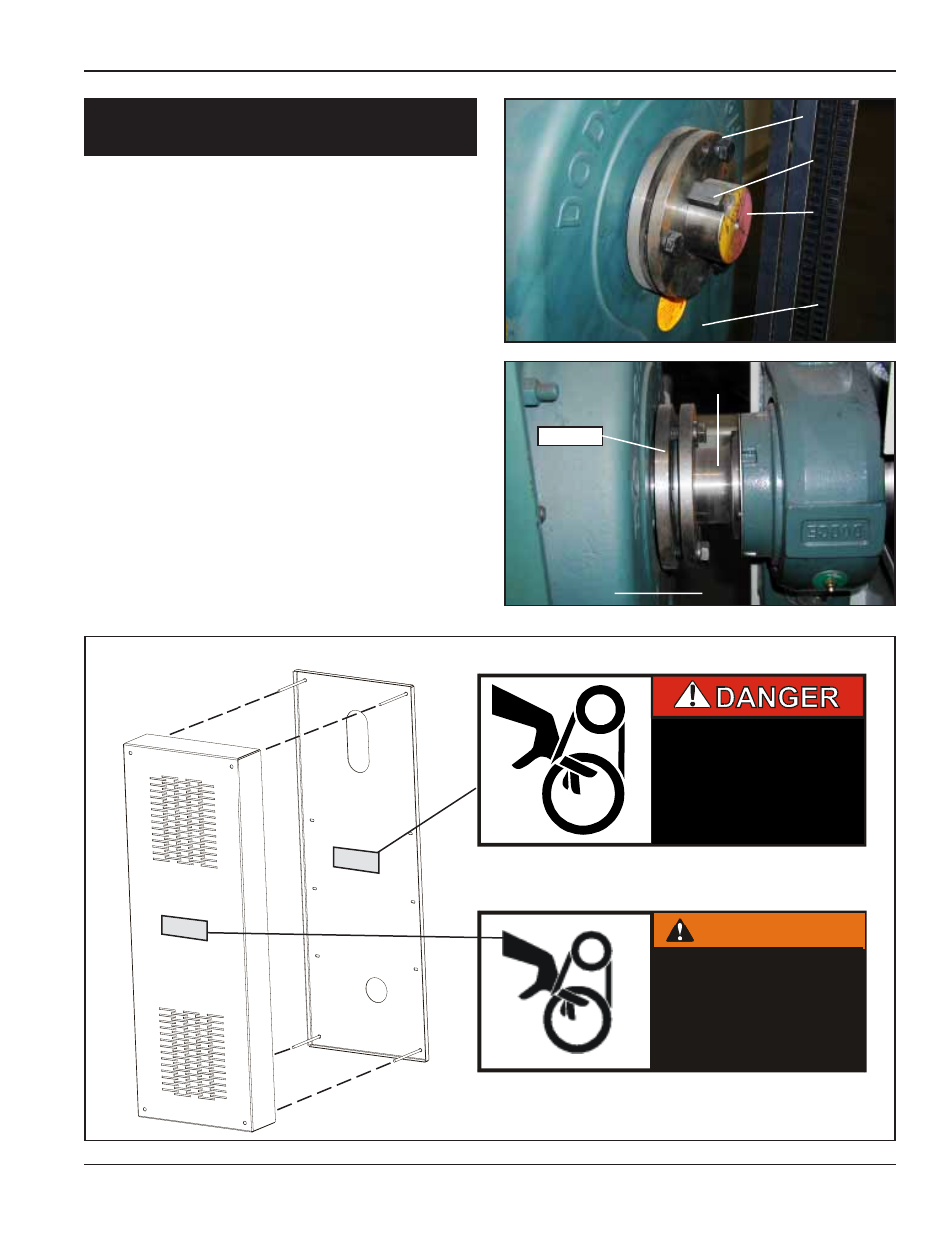

Motor Assembly
MOTOR AND TORQUE ARM II
REDUCER INSTALLATION
1. To aid in the installation of the reducer onto
the shaft, remove any protective coating film
from the shaft.
2. Place key in the keyway on the drive shaft.
3. Attach inside bushing to the reducer drive.
4. Line up the keyway on reducer with key on
shaft and slide the reducer drive onto the
drive shaft.
5. Slide outside bushing onto shaft and attach
to reducer drive. Once reducer drive is in
place, fully tighten both bushings.
(See page 38 for more details.)
Reducer
Shaft
Mount
Reducer
Key
Bushing
Conveyor
Drive
Shaft
Shaft
Mount
Reducer
Bushing
Conveyor
Drive Shaft
WARNING
Shear point. Keep hands
clear of moving parts. Do
not operate with guard
removed. Disconnect
and lockout power before
servicing.
DC-995
SHEAR POINT
Keep hands clear of moving
parts. Do not operate with
guard removed. Disconnect
and lockout power before
servicing.
DC-994
DC-994
DC-995
DC-994
DC-995
BELT GUARD
COVER
