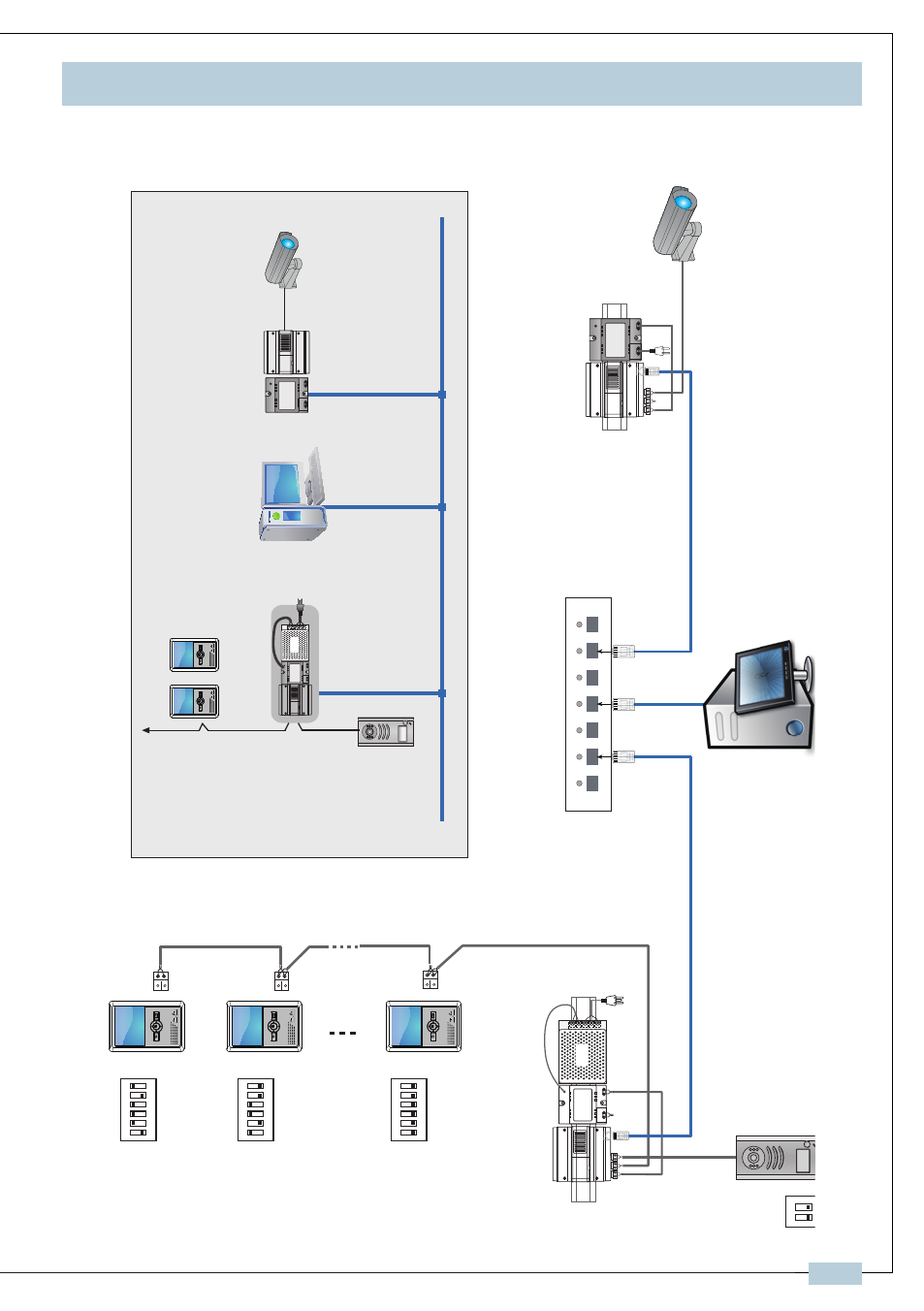

§ 1.5 Wiring Diagram
1.5.1 Connect with PC in single family system
AC~
Code=0, DIP-6=off
1
2
3
4
5
6
ON
Code=13, DIP-6=off
1
2
3
4
5
6
ON
Code=14, DIP-6=on
1
2
3
4
5
6
ON
ID=00
1 2
ON
85~260AC
DPS
PS5
DT-IPC
Ethernet Switcher
CM-IPC
PS4
CM-IPC
MENU
TALK
MONITOR
MENU
TALK
MONITOR
MENU
TALK
MONITOR
PS4
Video Surveilance
IP Home Network
PC
DT-IPC
PS5-24V
DPS
DPS
PS5
MENU
TAL
K
MONIT
OR
MENU
TAL
K
MONIT
OR
-8-
IP-2 wire system technical guide
