V-Tech DT-IP Technical Guide - Manual (Page 6)

2
DT-IPC DT-IPC
2
2
2
DBC-4
DBC-4
PS5-24V DPS
DPS PS5
PS5-24V DPS
DPS PS5
DBC-4 distributor
DBC-4
DBC-4 distributor
DBC-4
MENU TALK MONITOR MENU TALK MONITOR
MENU TALK MONITOR MENU TALK MONITOR
MENU TALK MONITOR MENU TALK MONITOR
MENU TALK MONITOR MENU TALK MONITOR
Ethernet Switcher
2
3
4 4 8
7 6 5 1
IP network: 2-wire system:
1) Max. 6 PC Station (IP-Agent switchboard)
2) Max. 8 IP-G21 Guard Station
3) Max. 200 2-wire system blocks
4) Max. 200 Intercom Point
5) Max. 32 Common Door Station
6) Max. 32 IP network camera controller
7) Max. >10Km distance (By using optical fiber)
*Note: For 3/4/5/6 items, total number < 240 1) Max. 32 Monitors in each block
2) Max. 4 Door Stations in each block
3) Max. 300m distance
4) Max. 6 CCTV cameras
* Note: Refer to DT technical Guide
System Capacity

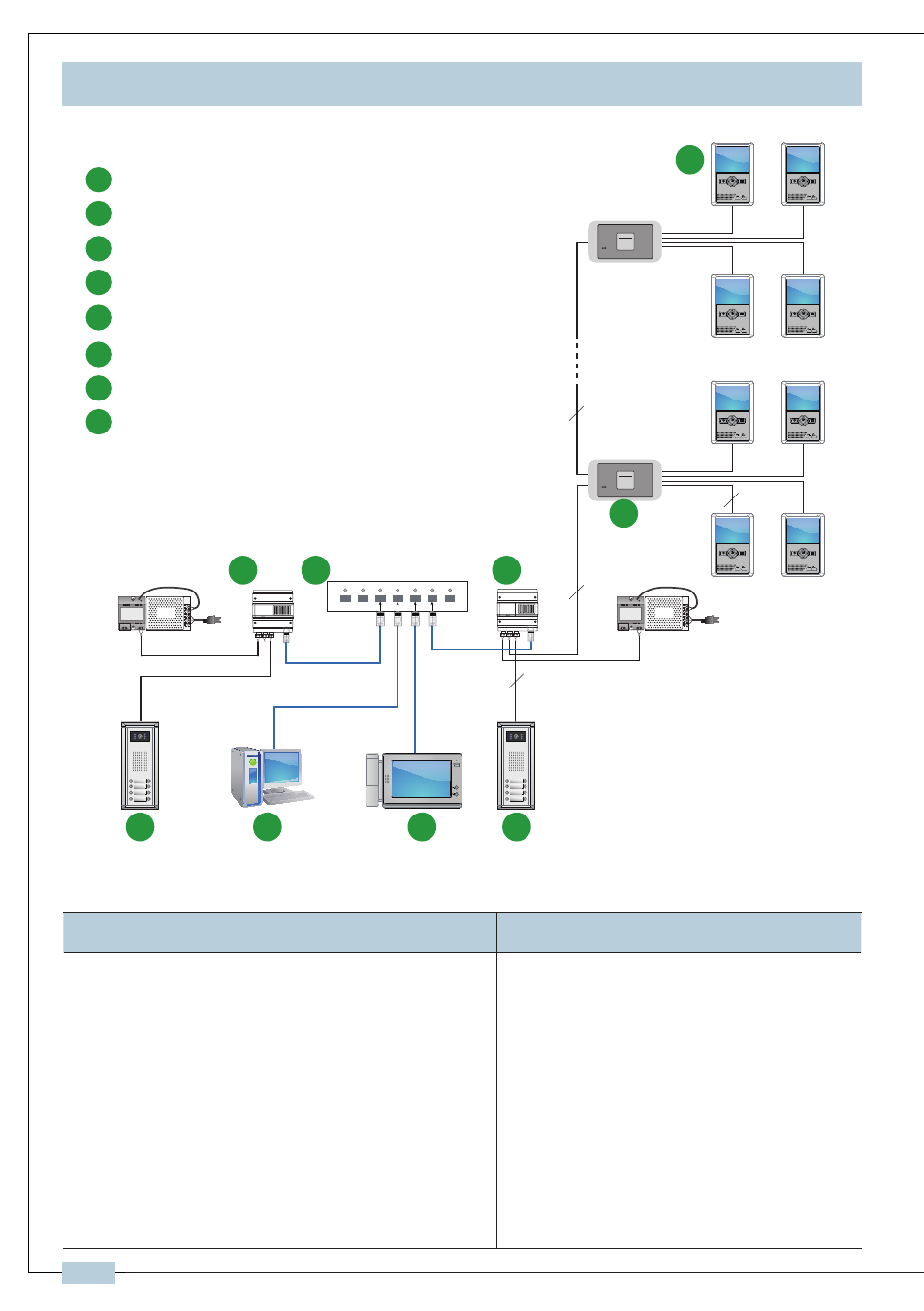

§ 1.3 IP System Features
1
2
3
4
5
6
7
8 Entrance Door Station
User Monitor
Video Distributor
IP interface unit (DT-IPC)
Common Door Station
Switchboard using IP-G21
Switchboard using PC
Network Switcher
-5-
IP-2 wire system technical guide
