3. IP Adress Setup by IP Device Software
An IP setup tool has been inserted in IP Device software. The function is the same to
IP8210 config software.
Steps for IP Setup
a) Install PC Station package software. And IP Device software shortcut will be created
automatically in the desktop.
b) Set PC Station IP
Assume using the following IP address :
IP address: 192.168.0.246
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.1
Note that IP address range of PC station must be from 192.168.X.241 to 192.168.X.246. X
is the specific segment number that is configurated by IP Device. Assume that 0 segment
has been specified.
c) Connect the device to PC directly or the network

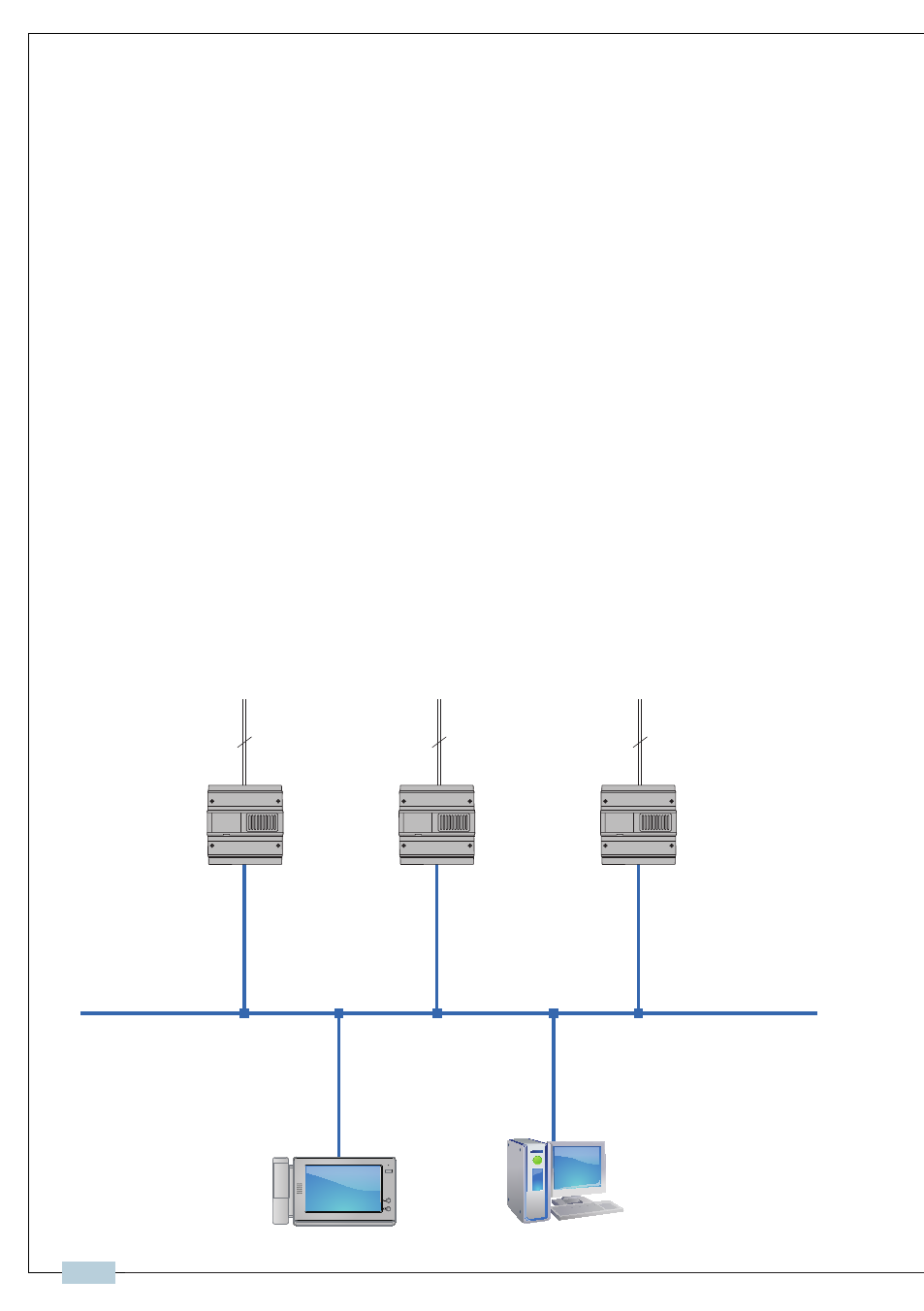

The following is a diagram of network connection
DT-IPC DT-IPC DT-IPC
2
2 wire riser
2
2 wire riser
2
2 wire riser
2 wire IP
interface
(DT-IPC)
2 wire IP
interface
(DT-IPC)
2 wire IP
interface
(DT-IPC)
IP backbone
IP backbone installed
using a dedicated LAN
network
Guard Unit PC
