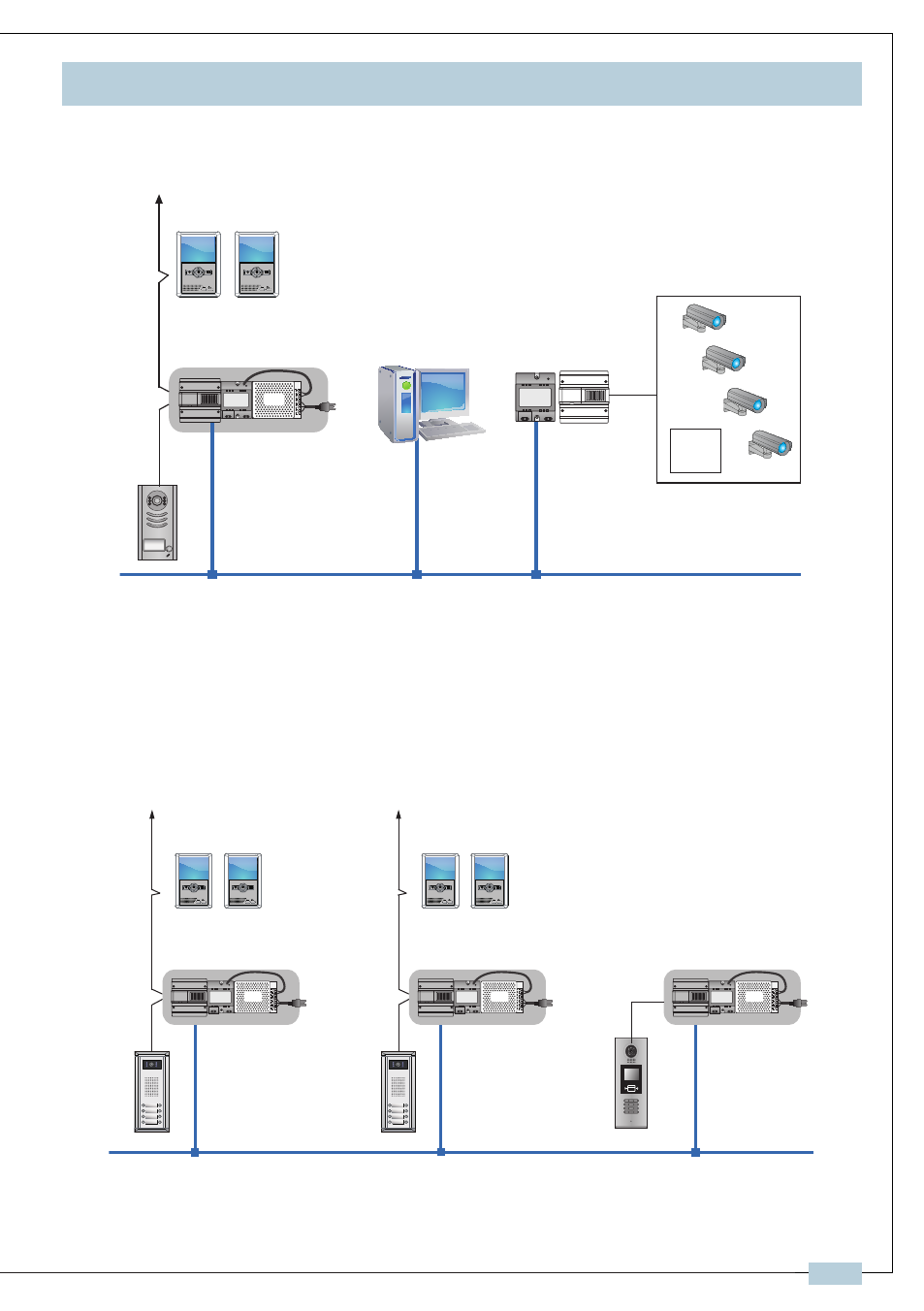

§ 1.4 IP System Typical Applications
1.4.1 Connect with PC in single family system
1.4.2 Connect Common Door Station in system
DT-IPC
CM-IPC
PS5-24V DPS
DPS PS5
MENU TALK MONITOR MENU TALK MONITOR
PS4
Video Surveilance
IP Home Network
PC
1. Answer calls and release the door from PC
2. Monitoring Door Station camera or Video Surveillance cameras from PC
1. All Common Door Stations can call all the unit in each apartment
2. Switchboard is not needed in this case
IP Home Network
Apartment 1
MENU TALK MONITOR MENU TALK MONITOR
Apartment N
Common Door Station
1 2 3
6 5 4
7 8 9
# 0 *
RF CARD
DT-IPC
PS5-24V DPS
DPS PS5
MENU TALK MONITOR MENU TALK MONITOR
DT-IPC
PS5-24V DPS
DPS PS5 DT-IPC
PS5-24V DPS
DPS PS5
-6-
IP-2 wire system technical guide
