V-Tech DT-IP Technical Guide - Manual (Page 51)

3. Block Config
Double Click A Block, you will find no door stations and monitors there. Door stations and
monitors must be configured.
Take Benchmark Project as an example. There are 2 DT592 and 4 monitors in A blocks.
User Codes of monitors are 00, 01, 02 and 03 respectively.

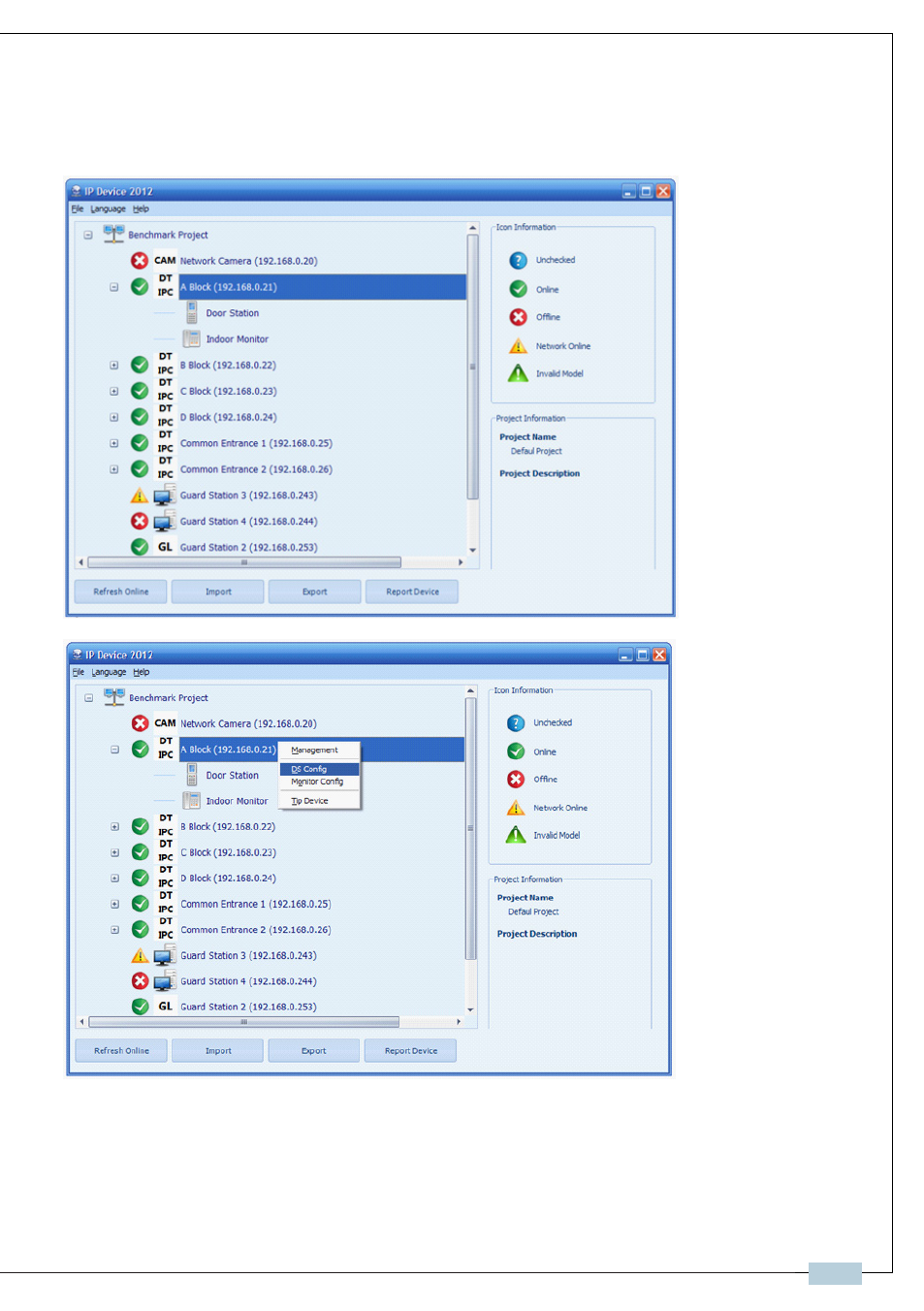

DS Config: Click the right mouse button on A Block -> Select DS Config on the pop-up
window -> Config just like the following picture -> Click Save button to confirm -> Software
will check if the door stations are online automatically.
-49-
IP-2 wire system technical guide
