The DT-TPC unit is designed for DT 2-wire system to support IP networking. It is a network
gateway which is an essential node in IP network.
DT-IPC is capable of connecting block system and Common Door Station, intercom
point. It makes the door intercom can
be available in a PC as well as from the
Indoor station or Guard Unit. Answering
calls and releasing doors, or monitoring
entrances are also available.
Max. 239 DT-IPC can be connected in
system.
• One DT-IPC is required in one block.
• Built-in watchdog circuit in case of
crash.
• LED Indicators to show system status
• RJ45 Standard connection port
• IP address setting & store
• Talking volume adjustable
• Support TCP/IP network and fiber transmission or broad band network access.
• Adopt MPEG4 video protocol and G.729 audio protocol.
• Include 100Mbit Ethernet LAN and RS485 connection port.

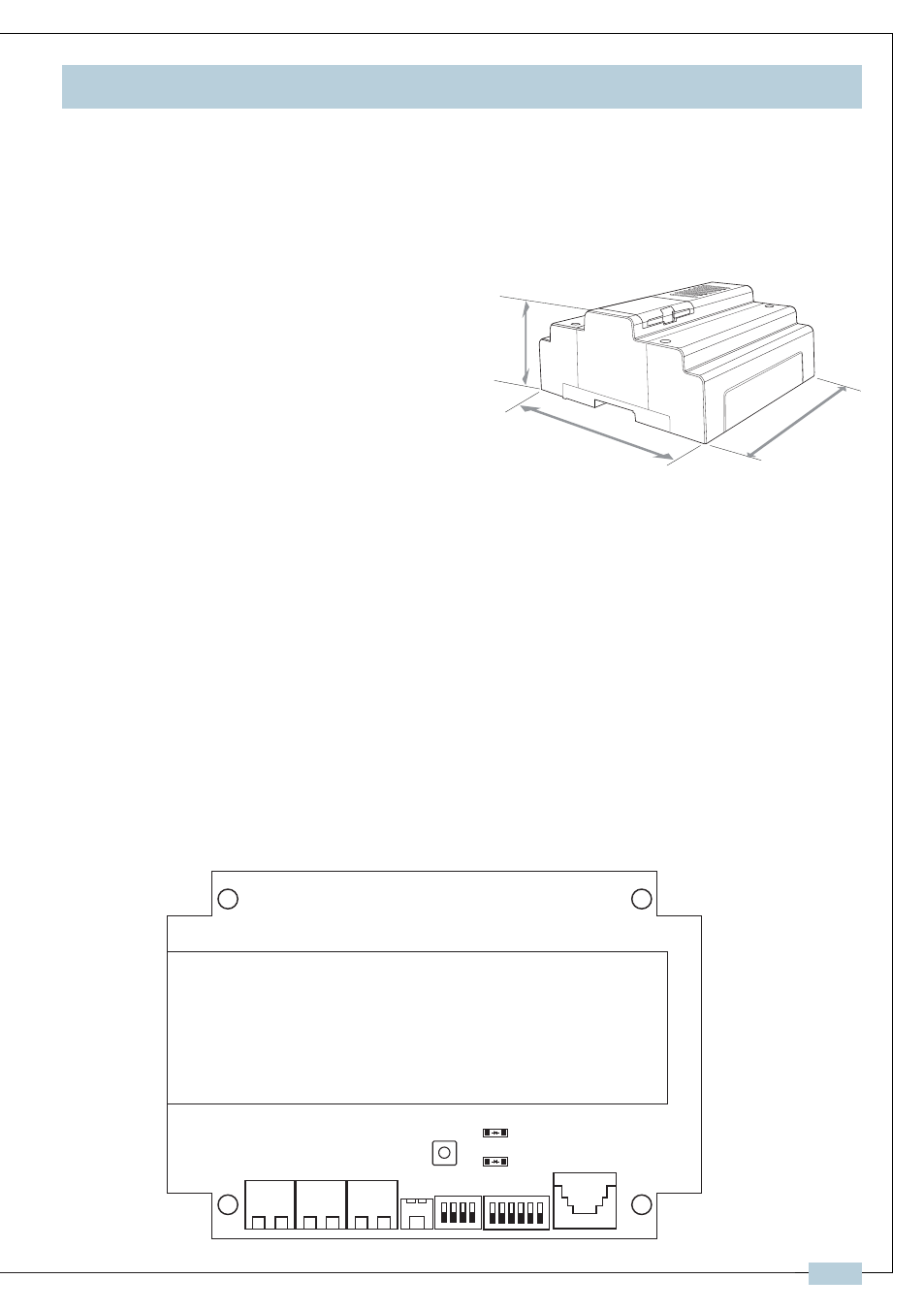

150mm 140 mm
60 mm
2.2.1 About DT‐IPC Unit
2.2.2 Parts and Functions
1
ON DIP
2 3 4 5 6
DIP ON
1 2 3 4
J701
IPC-CT
IPC-PORT
K201
LED202
SW201
CN-BSO CN-BSI CN-DS
RS485
S201
LED203
Diagram:
§ 2.2 DT‐IPC Introduction
