9
Baud Rate Baud Rate Baud Rate Baud Rate Baud Rate
This submenu is used to select the de-
sired baud rate. There are five available
baud rates to choose from: 300, 1200,
2400, 4800 and 9600.

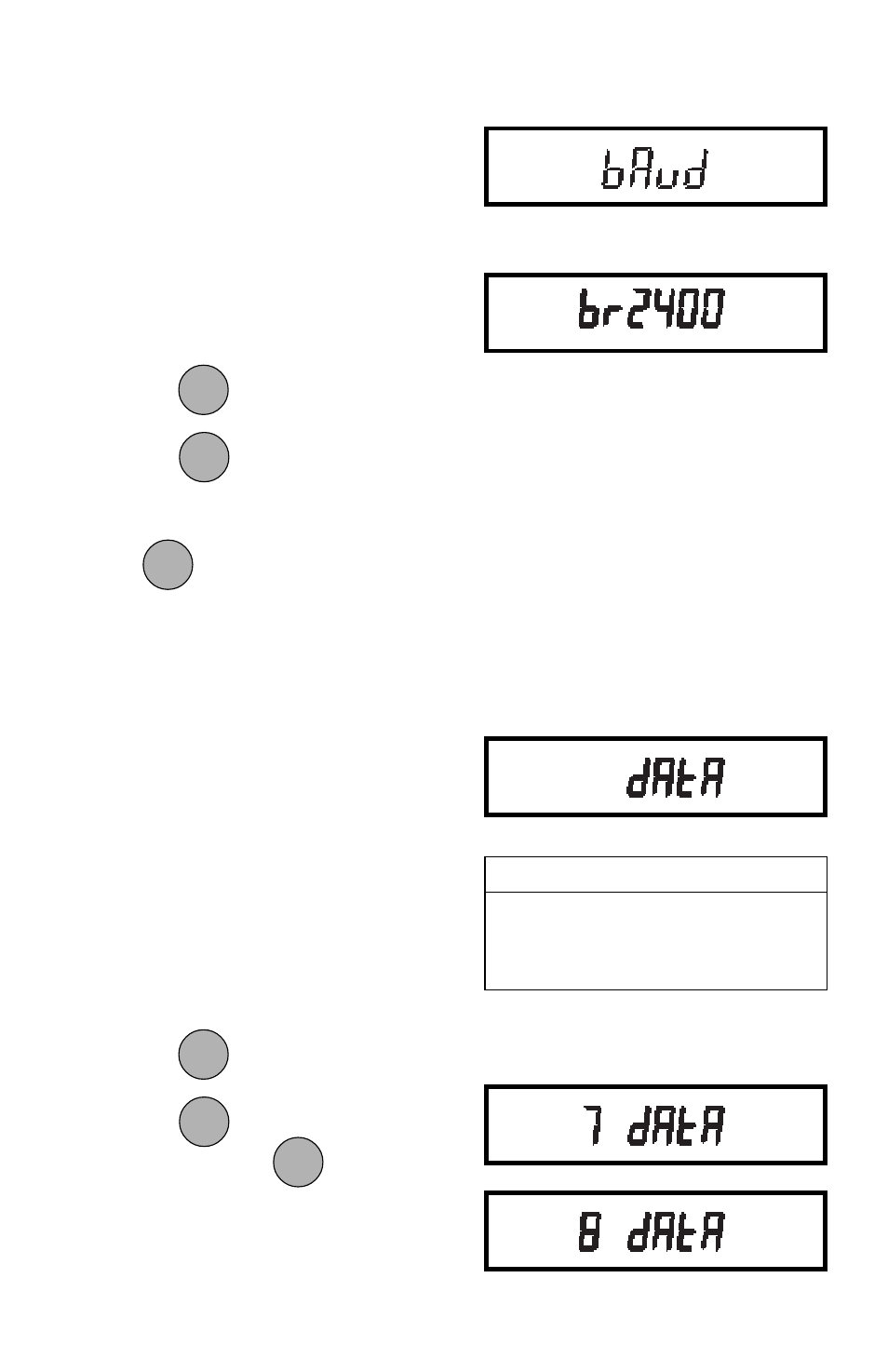

To view or change the baud rate:
1. Access the Baud submenu to dis-
play the current setting.
2. Press to change the setting.
Press to accept the displayed
setting.
When is released, BAUD will be
displayed again and the Print menu
will be returned.
Data Bits Data Bits Data Bits Data Bits Data Bits
The total number of bits for Data, Parity
and Stop must equal 9 or 10. (see ex-
amples). The balance will not permit you
to select a combination that does not equal
9 or 10.
To set the number of data bits to 7 or 8:
1. Access the Data submenu to display
the current setting.
2. Press to change the setting.
Press to accept the displayed
setting. When is released,
DATA will be displayed again and the
Print menu will be returned.
EXAMPLES EXAMPLES EXAMPLES EXAMPLES EXAMPLES
8 Data + 2 Stop + No Parity = 10
8 Data + 1 Stop + Odd Parity = 10
7 Data + 1 Stop + Odd Parity = 9
ON ON ON ON ON
TARE TARE TARE TARE TARE
ON ON ON ON ON
TARE TARE TARE TARE TARE
OFF OFF OFF OFF OFF
MODE MODE MODE MODE MODE
ON ON ON ON ON
TARE TARE TARE TARE TARE
ON ON ON ON ON
TARE TARE TARE TARE TARE
OFF OFF OFF OFF OFF
MODE MODE MODE MODE MODE
