Gas sampling and gas conditioning technology 3-3.1-ME
6 INTRODUCTION
The patented M&C EC-L gas cooler unit is always to be installed in situations where there is
interference from moisture in the gas to be measured.
Reduction of the gas temperature inside the cooler to a stable and very low dew point effects a
condensing-out of the sample gas.
6.1 SERIAL NUMBER
The type plate with the serial number is located at the side panel of the cooler housing. Whenever you
call M&C regarding questions or orders for the spares please give us the serial number of your EC-L.
7
APPLICATION

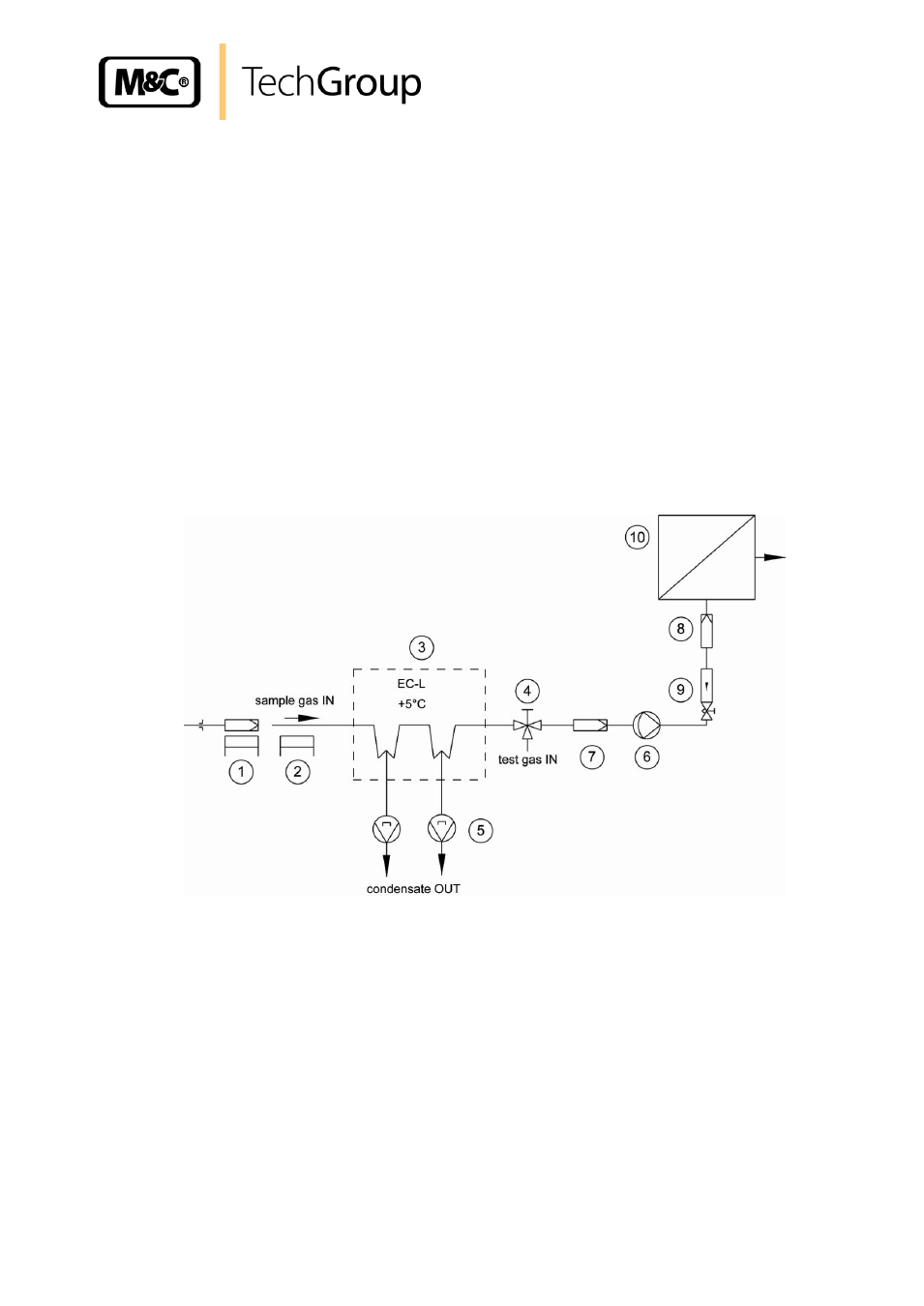

Figure 1 shows a typical example of an application for installation of an EC-L gas cooler unit.
Figure 1 Application example of the EC-L
1 : Filter sample probe SP ...
2 : Heating sample line
3 : EC-L cooler
4 : 3-way ball valve
5 : Peristaltic pump (option)
6 : Membrane pump
7 : Super fine filter FP ...
8 : Aerosol filter CLF-5
9 : Flow meter FM10
10 : Analyser
The gas to be measured is taken from the EC-L gas cooler

by a gas sample probe

via a heated
sample line

and cooled down to a dew point of +5°C. The super-fine filter

located afterwards
removes solid particles. For increased operating safety of the entire system we recommend installing a
super-fine filter

with a liquid alarm sensor. If required an aerosol filter

can be installed
downstream the flow meter

. The gas thus treated can now be passed into the analyser

.
