2.10
230
130 160
230
H1
V1
S1
H2
TA-
(N2) N1 AUS EIN
Heizkreis
Betrieb
temperatur
Über-
Q1 X2 X1
Non-hazardous area
AUS EIN
Netz
X2:
EExi
Zone 1
X1:
EExe
Ex-area
450

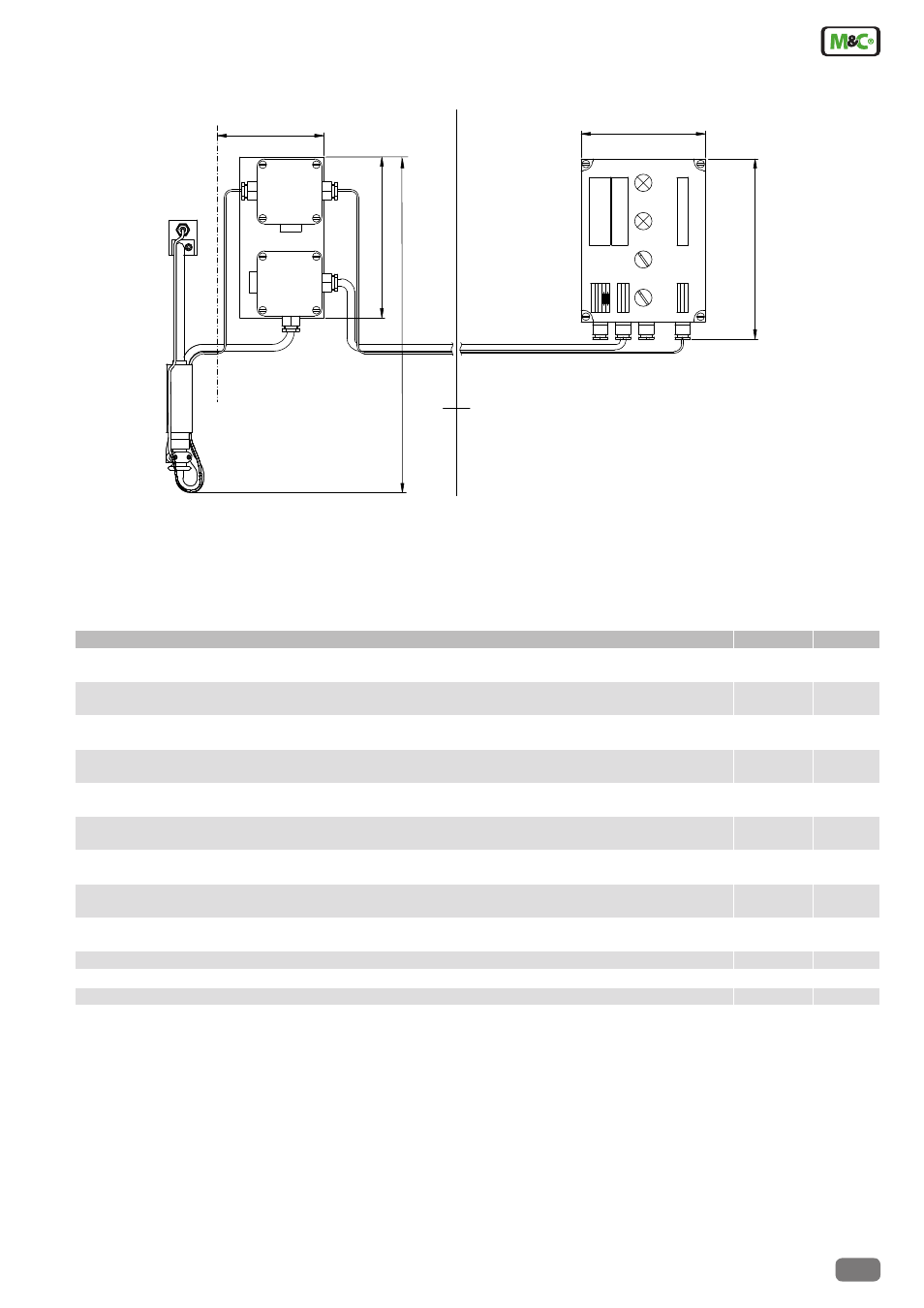

Option heating HEX1-3
Dimensions in mm
Dimensions
Technical specifications and illustrations are without
obligation, subject to modifications. 10.04/11.12
Options pre-filter and extension tubes
Optionen Version Part No.
Stainless steel pre-filter with volume displacer, length 220mm, 46mm o.d., filter porosity 2µm,temperature max. 600°C, material
SS316 V20-0 20 S 9105
Hastelloy pre-filter with volume displacer, length 220mm, 46mm o.d., filter porosity 2µm, temperature max. 900°C, material
Hastelloy-C V20-0/HC 20 S 9115
Stainless steel pre-filter with volume displacer, length 520mm, 60mm o.d., filter porosity 2µm, temperature max. 600°C, material
SS316 V20-1 20 S 9145
Hastelloy pre-filter with volume displacer, length 520mm, 60mm o.d., filter porosity 2µm, temperature max. 900°C, material
Hastelloy-C V20-1/HC 20 S 9155
Hastelloy pre-filter with volume displacer, length 520mm, 60mm o.d., filter porosity 0,5µm,temperature max. 900°C, material
Hastelloy-C V20-1/HC 20 S 9156
Stainless steel pre-filter with volume displacer, length 300mm, 31mm o.d., filter porosity 2µm, temperature max. 600°C, material
SS316 V20-3 20 S 9300
Extra charge for extension of insitu stainless steel filter V20-3 or V20-4 for each 100 mm further length (from standard length
300mm to .... mm), max. 1000 mm total filter length, material: SS316.········· V20-3 20 S 9310
Backflushable hose pre-filter with internal support tube, length: 400mm, 40mm o.D., filter porosity 15µm,temperature max. 200°C,
material PTFE, SS316 V20-T 20 S 9315
Insitu ceramic filter tube in double-layer version for high blow back efficiency, with volume displacer, length 500mm, 40mm o.d.,
filter porosity 1µm, temperature max. 1000°C, material ceramic, SS316, connection G3/4" V12-1A-1 20 S 9559
Extension tube for V20.. with internal volume displacer , length 500mm, temperature max. 600°C, material SS316 Vm500 20 S 9165
Extension tube for V20.. with internal volume displacer , length 1000mm, temperature max. 600°C, material SS316 Vm1000 20 S 9170
Extension tube for V20.. with internal volume displacer , length 1500mm, temperature max. 600°C, material SS316 Vm1500 20 S 9175
For choosing the adequate pre-filter see data sheet 2-1.1.0.8 as well
