EVS XS Version 11.02 - July 2013 Configuration Manual User Manual
Page 73

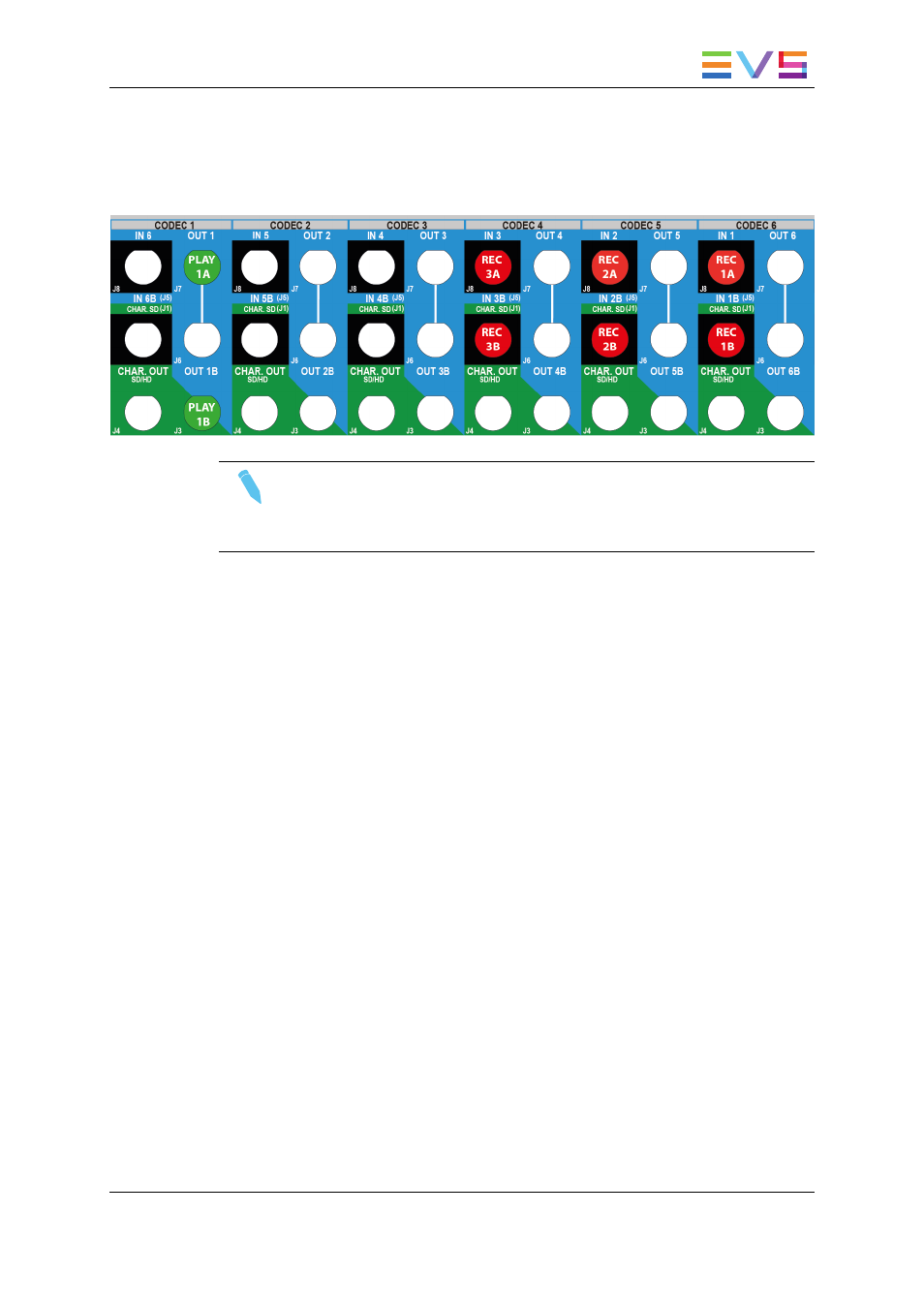

Example: 3D/1080p Dual Link 3REC + 1PLAY
The BNC connectors to be used as recorder and play channels in a 3D or 1080p Dual Link
configuration 3REC + 1PLAY need to be cabled as shown below:
Note
In an equivalent configuration with a single link 3G interface, only the J8
connectors are cabled. However the primary and secondary links on the codec
module of the V3X board are both used.
CONFIGURATION MANUAL XS Server 11.02
3. Multicam Configuration
65
