Channel Assignment

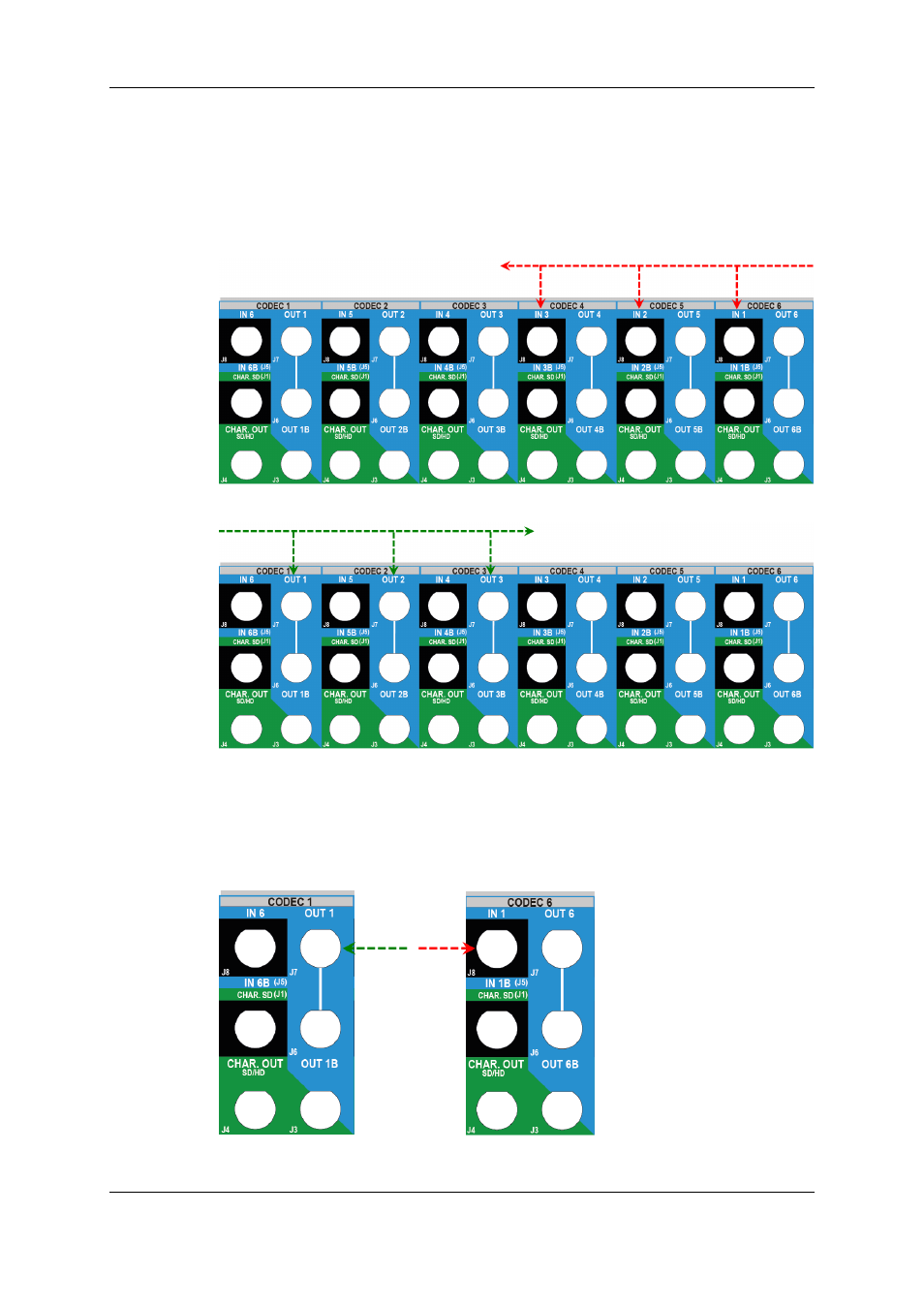

The following general principles apply to all configurations, and are valid for all EVS
servers equipped with V3X or COHX boards:
• The record channels (IN connectors) are always assigned from the right to the left.
• The play channels (OUT connectors) are always assigned from the left to the right.
The following principles apply to EVS servers equipped with V3X boards:
• The primary links of the V3X boards mentioned in the tables of this section correspond
to the upper connectors of a codec module.
◦ J8 for IN connectors
◦ J7 for OUT connectors (J6 is also equivalent to J7)
