3.2.4. 3D/1080p Standard Configurations
Assignment Principles
The following rules on connector assignments on the rear panel apply to 3D or 1080p
configurations:
• For 3D or 1080p in Dual Link with V3X boards, the primary link of a codec module is
used for the first connector, and the secondary link for the same codec module is used
for the second connector.
• For 3D or 1080p in Dual Link with COHX boards, the primary link of a codec module is
used for the first connector, and the primary link for the next codec module is used for
the second connector.
• For 3D or 1080p in 3G (single link), the primary link of the codec module is used for the
single connector. However, both primary and secondary links of a codec module of
the V3X board are used. The 3D/1080p configurations in 3G are only supported on an
XS server equipped with V3X boards.
Warning
Bear in mind that, even with a 3G interface (single link connected to the rear
panel), both primary and secondary links of a codec module of the V3X board are
used in 3D/1080p.
XS 5U Servers
Available Configurations with V3X Boards

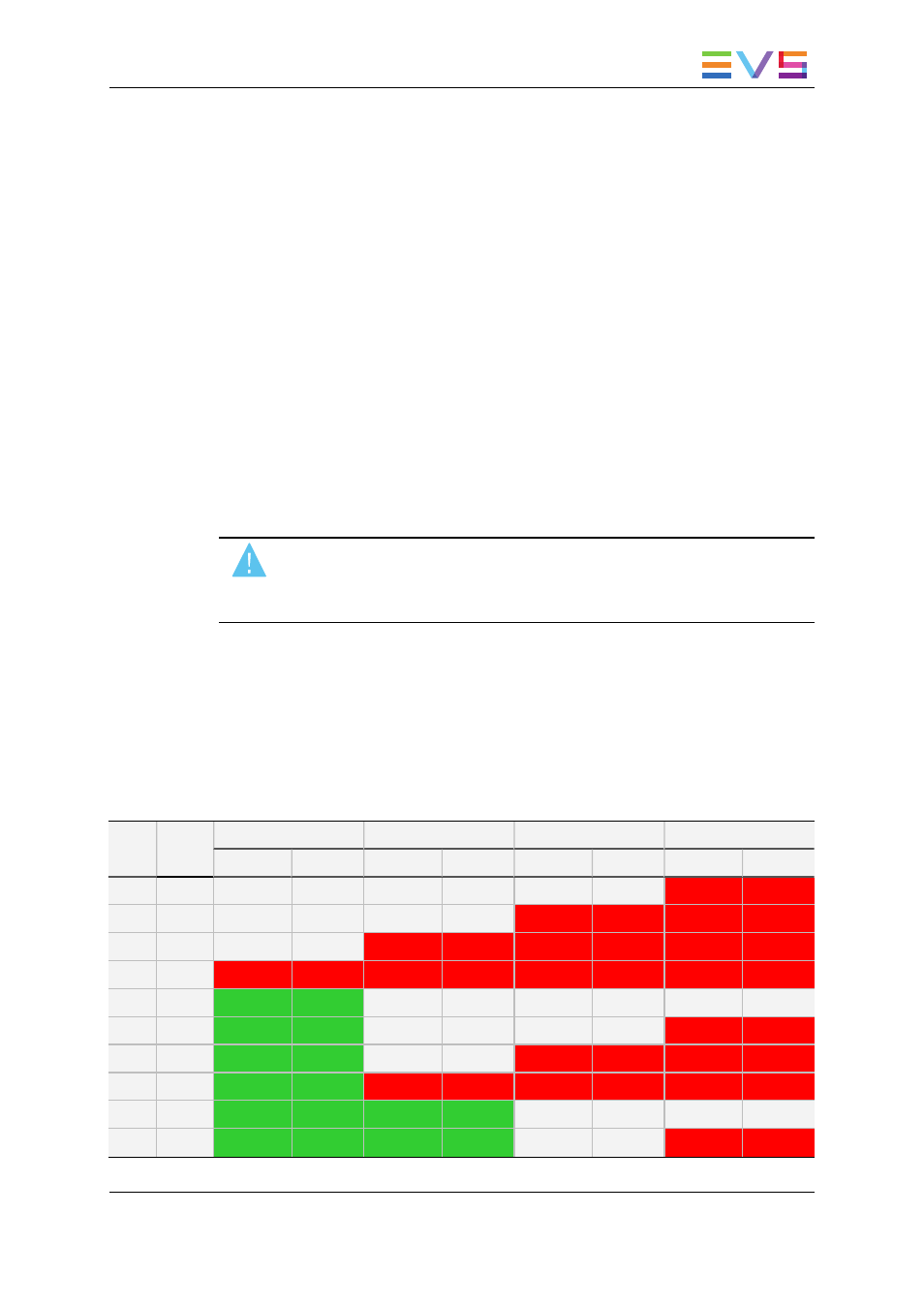

The tables below show the available 3D and 1080p configurations with standard cameras
on a XS 5U server. They show the link assignment at the level of the codec module of a
V3X board.
#REC #PLAY
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
Prim. Link Sec. Link Prim. Link Sec. Link Prim. Link Sec. Link Prim. Link Sec. Link
1 0 REC1A REC1B
2 0 REC2A REC2B REC1A REC1B
3 0 REC3A REC3B REC2A REC2B REC1A REC1B
4 0 REC4A REC4B REC3A REC3B REC2A REC2B REC1A REC1B
0 1 PLAY1A PLAY1B
1 1 PLAY1A PLAY1B REC1A REC1B
2 1 PLAY1A PLAY1B REC2A REC2B REC1A REC1B
3 1 PLAY1A PLAY1B REC3A REC3B REC2A REC2B REC1A REC1B
0 2 PLAY1A PLAY1B PLAY2A PLAY2B
1 2 PLAY1A PLAY1B PLAY2A PLAY2B REC1A REC1B
