#REC #PLAY
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
Prim. Link Sec. Link Prim. Link Sec. Link Prim. Link Sec. Link Prim. Link Sec. Link
2 2 PLAY1A PLAY1B PLAY2A PLAY2B REC2A REC2B REC1A REC1B
0 3 PLAY1A PLAY1B PLAY2A PLAY2B PLAY3A PLAY3B
1 3 PLAY1A PLAY1B PLAY2A PLAY2B PLAY3A PLAY3B REC1A REC1B
0 4 PLAY1A PLAY1B PLAY2A PLAY2B PLAY3A PLAY3B PLAY4 PLAY4B

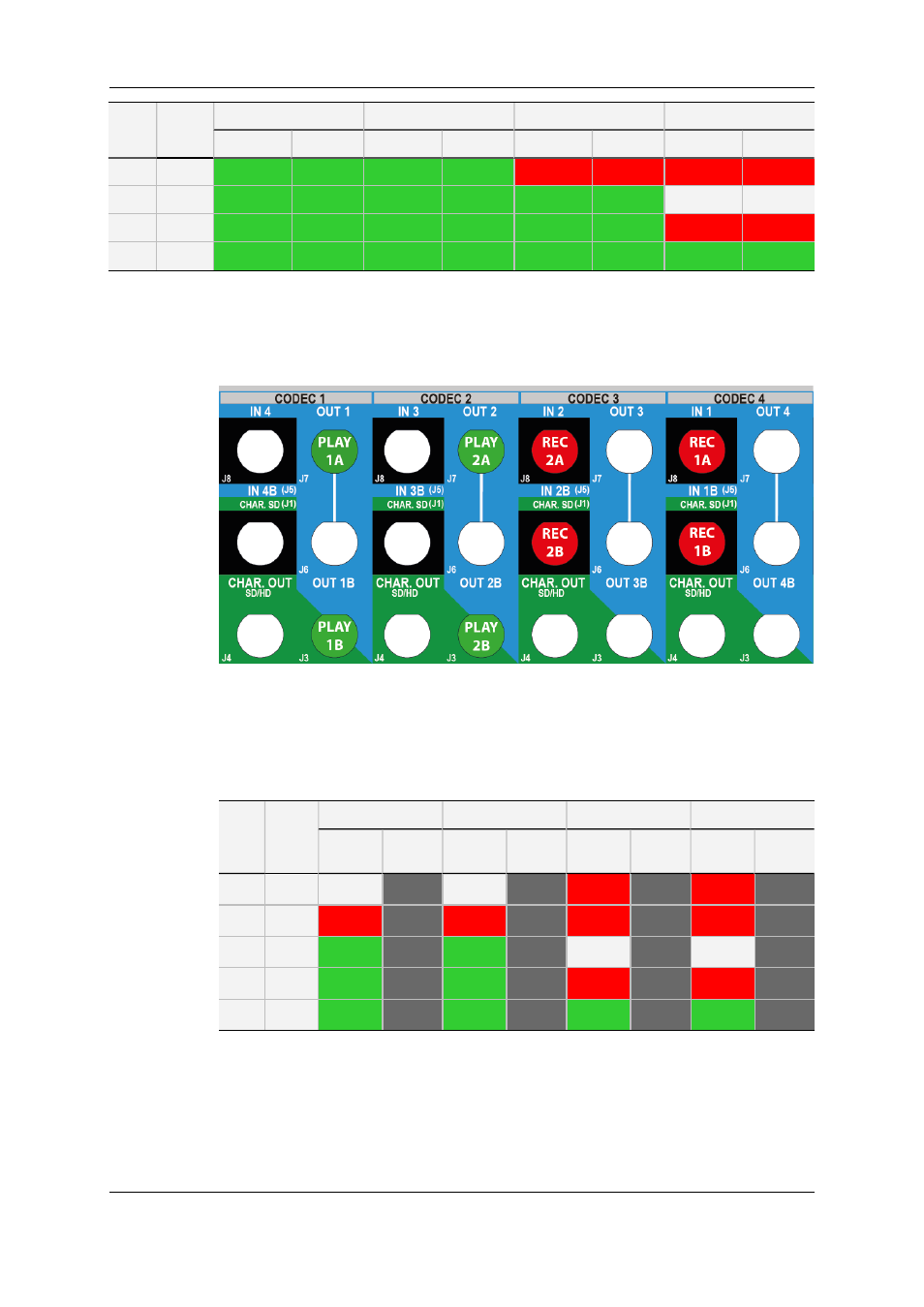

Example: 3D/1080p Dual Link 2REC + 2PLAY
The BNC connectors to be used as recorder and play channels in a 3D or 1080p Dual Link
configuration 2REC + 2PLAY need to be cabled as shown below:
Available Configurations with COHX Boards
The tables below show the available 3D and 1080p configurations with standard cameras
on a XS 5U server. They show the link assignment at the level of the codec module of a
COHX board.
#REC #PLAY
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 0 REC1B REC1A
2 0 REC2B REC2A REC1B REC1A
0 1 PLAY1A PLAY1B
1 1 PLAY1A PLAY1B REC1B REC1A
0 2 PLAY1A PLAY1B PLAY2A PLAY2B
