A Baro Transition Alert is provided to alert the pilot to change the barometric pressure setting when crossing
the transition altitude in either direction. This is displayed by the flashing light blue barometric pressure setting
when crossing the transition altitude.
Setting the Baro Transition Alert:
1) Use the FMS Knob to select the AUX - System Setup Page on the MFD.
2) Press the FMS Knob to activate the cursor.
3) Turn the large FMS Knob to highlight Altitude in the Baro Transition Alert box.
4) Turn the small FMS Knob to turn the alert OFF or ON and press the ENT Key.
5) Turn the small FMS Knob to change the altitude and press the ENT Key.
6) To cancel the selection, press the FMS Knob.

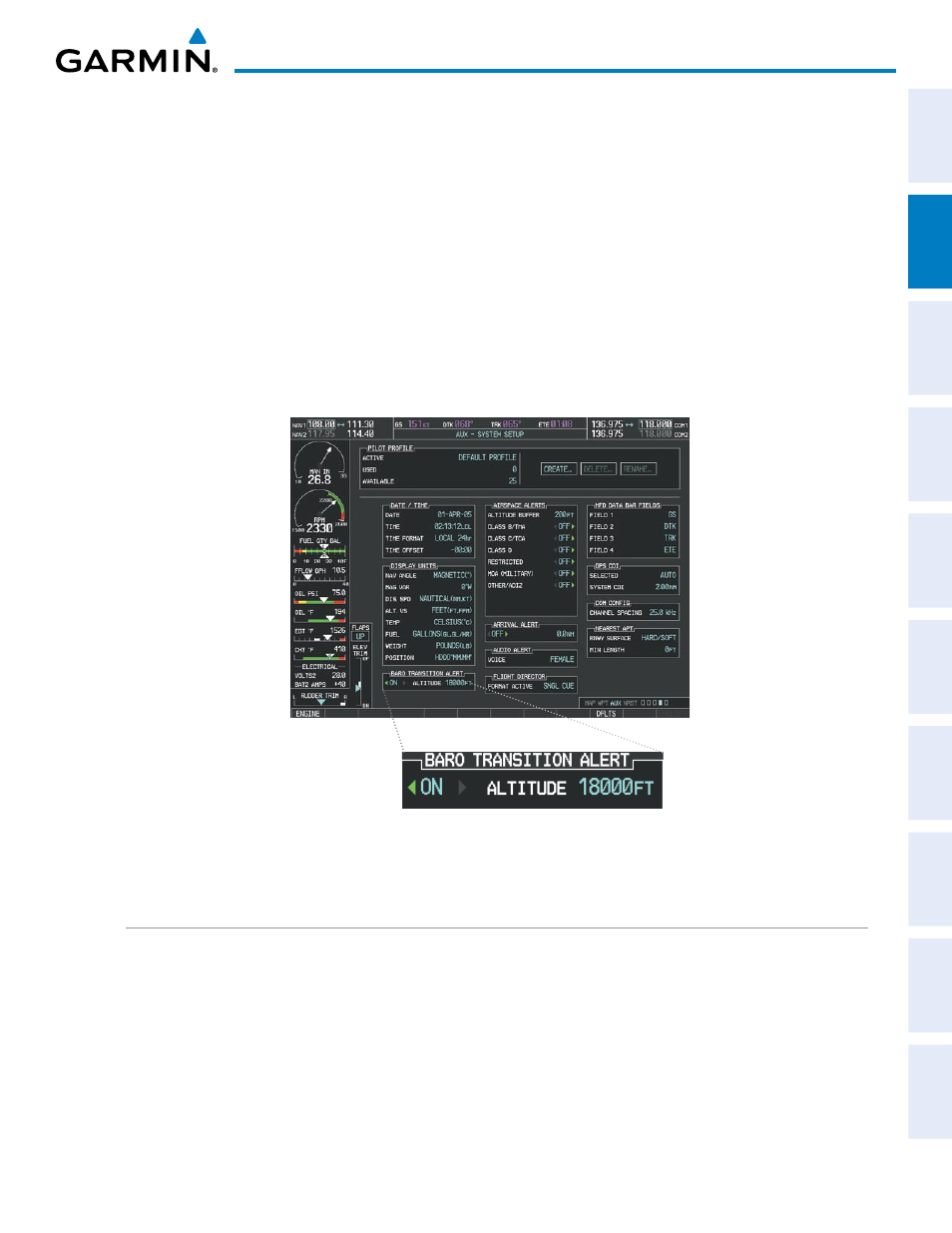

Figure 2-8 Baro Transition Alert
(Aux System Setup Page)
VERTICAL SPEED INDICATOR (VSI)
The Vertical Speed Indicator (VSI) displays the aircraft vertical speed on a fixed scale with labels at 1000 and
2000 fpm and minor tick marks every 500 fpm. Digits appear in the pointer when the climb or descent rate
is greater than 100 fpm. If the rate of ascent/descent exceeds 2000 fpm, the pointer appears at the edge of the
tape and the rate appears inside the pointer.
