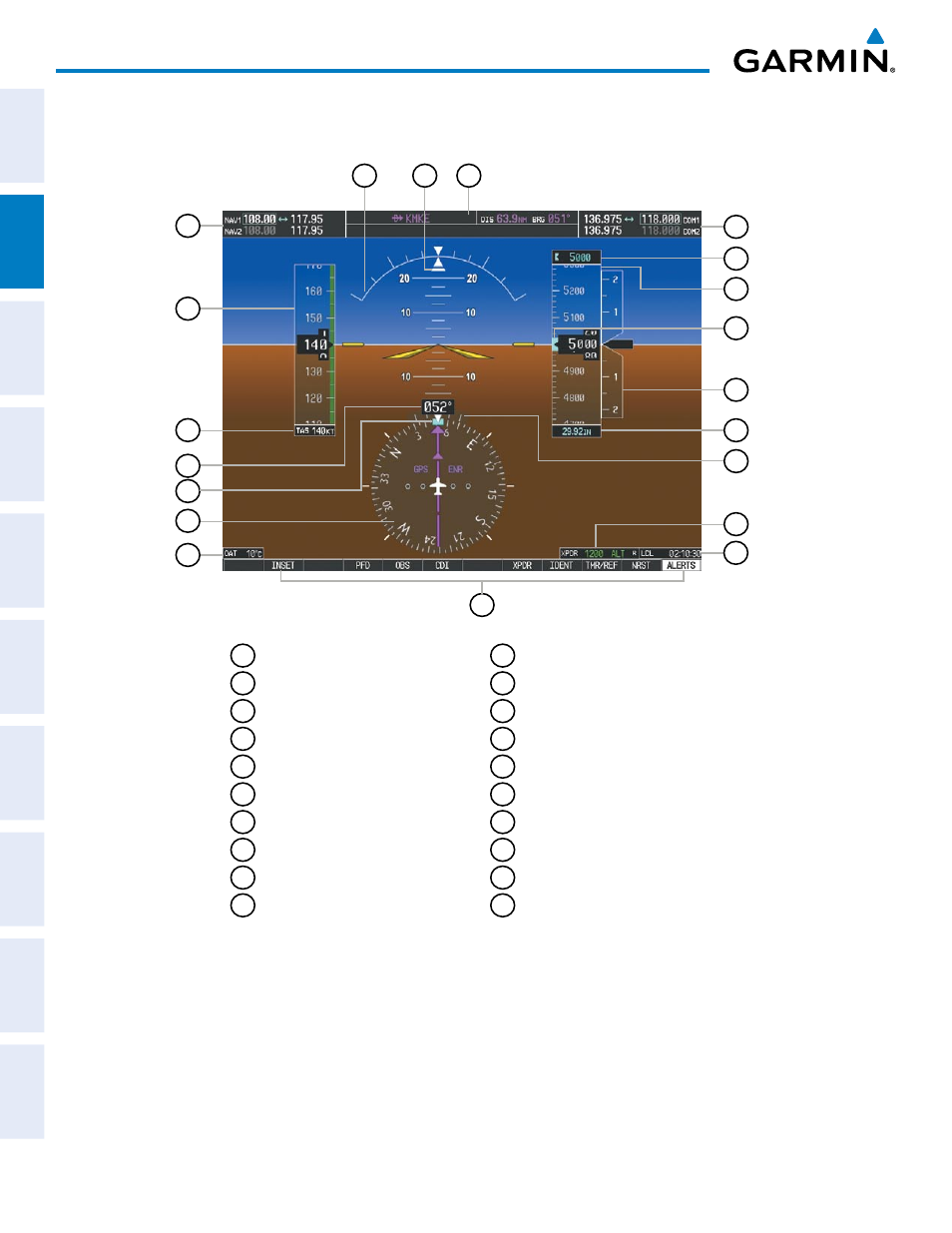

Figure 2-1 Primary Flight Display (Default)
1 NAV Frequency Box
2 Airspeed Indicator
3 True Airspeed
4 Current Heading
5 Heading Bug
6 Horizontal Situation Indicator ( HSI)
7 Outside Air Temperature (OAT)
8 Softkeys
9 System Time
10 Transponder Data Box
11 Turn Rate Indicator
12 Barometric Altimeter Setting
13 Vertical Speed Indicator (VSI)
14 Selected Altitude Bug
15 Altimeter
16 Selected Altitude
17 COM Frequency Box
18 Navigation Status Box
19 Slip/Skid Indicator
20 Attitude Indicator
