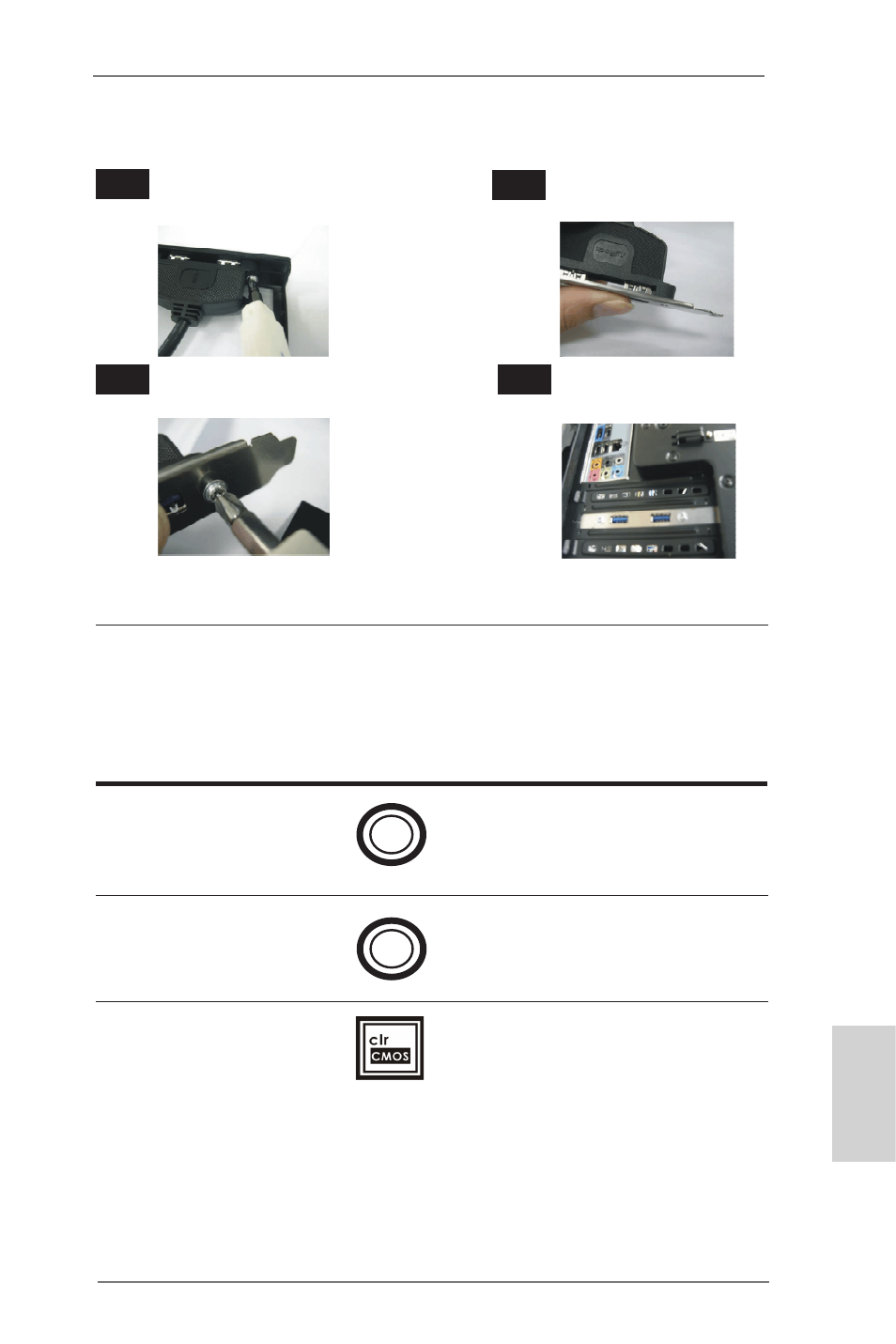

The Installation Guide of Rear USB 3.0 Bracket
Put the USB 3.0 cable and the rear
USB 3.0 bracket together. Unscrew the two screws from the Front USB 3.0
Panel. Step 1 Step 2
Put the rear USB 3.0 bracket into the
chassis. Screw the two screws into the rear USB 3.0
bracket. Step 3 Step 4
Power
Reset
2.9 Smart Switches
The motherboard has three smart switches: power switch, reset switch and clear
CMOS switch, allowing users to quickly turn on/off or reset the sytem clear the
CMOS values.
Power Switch Power Switch is a smart switch,
(PWRBTN) allowing users to quickly turn
(see p.2 No. 21) on/off the system.
Reset Switch Reset Switch is a smart switch,
(RSTBTN) allowing users to quickly reset
(see p.2 No. 22) the system.
Clear CMOS Switch Clear CMOS Switch is a smart
(CLRCBTN) switch, allowing users to quickly
(see p.3 No. 18) clear the CMOS values.
