21
ASRock 990FX Extreme9 Motherboard
English

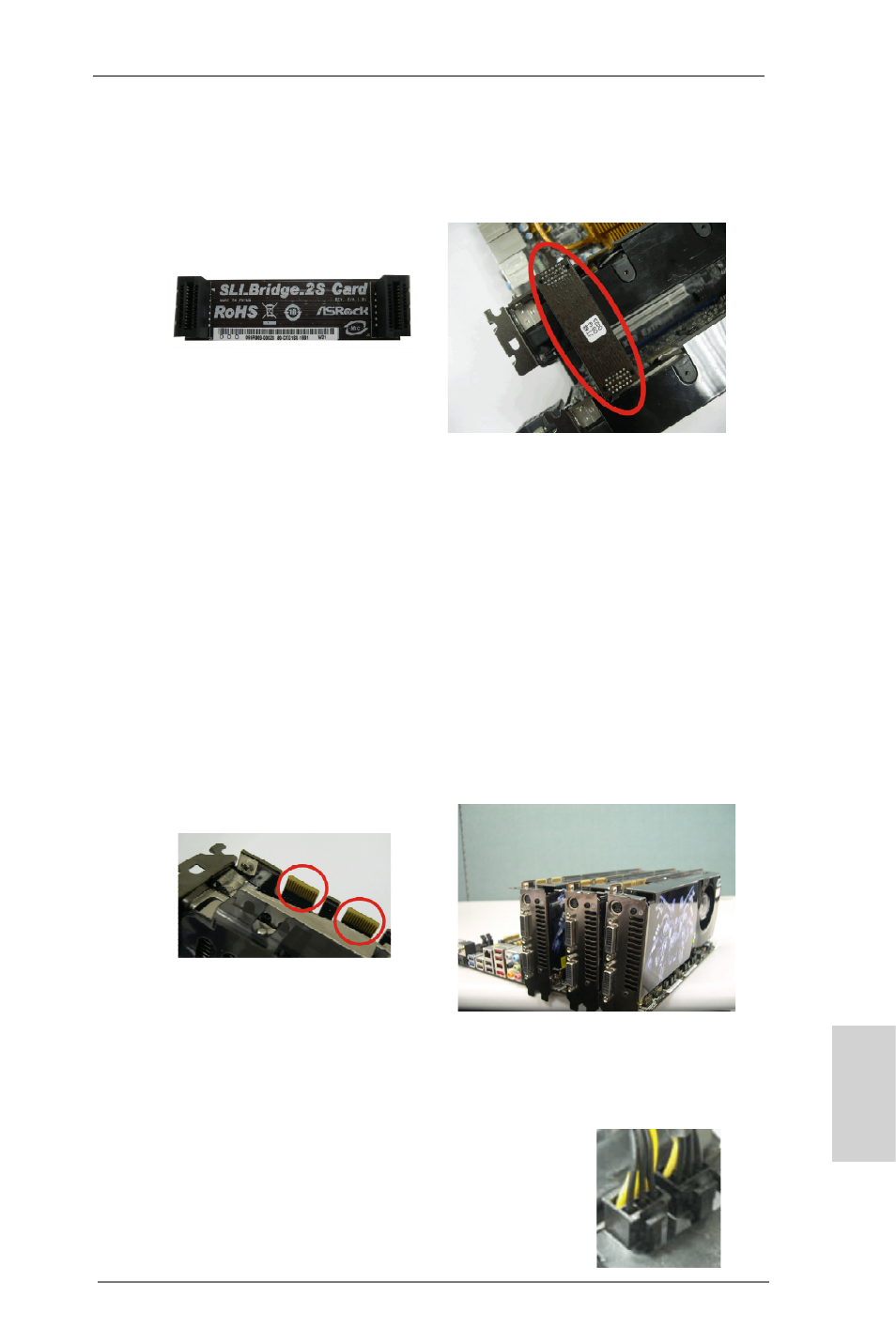

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI
connector of the graphics card that is inserted to PCIE1 slot.
Step3. Align and insert the ASRock SLI_Bridge_2S Card to the goldfingers on
each graphics card. Make sure the ASRock SLI_Bridge_2S Card is firmly
in place.
ASRock SLI_Bridge_2S Card
2.5.1.2 Installing Three SLI TM -Ready Graphics Cards
Step 1. Install the identical 3-Way SLI TM -ready graphics cards that are NVIDIA ®
certified because different types of graphics cards will not work together
properly. (Even the GPU chips version shall be the same.) Each graph-
ics card should have two goldfingers for ASRock 3-Way SLI-2S1S Bridge
Card connector. Insert one graphics card into PCIE1 slot, another graphics
card to PCIE4 slot, and the other graphics card to PCIE5 slot. Make sure
that the cards are properly seated on the slots.
Step2. Connect the auxiliary power source to the PCI Express graphics card.
Please make sure that both power connectors on the PCI Express graph-
ics card are connected. Repeat this step on the three graphics cards.
Two Goldfingers
