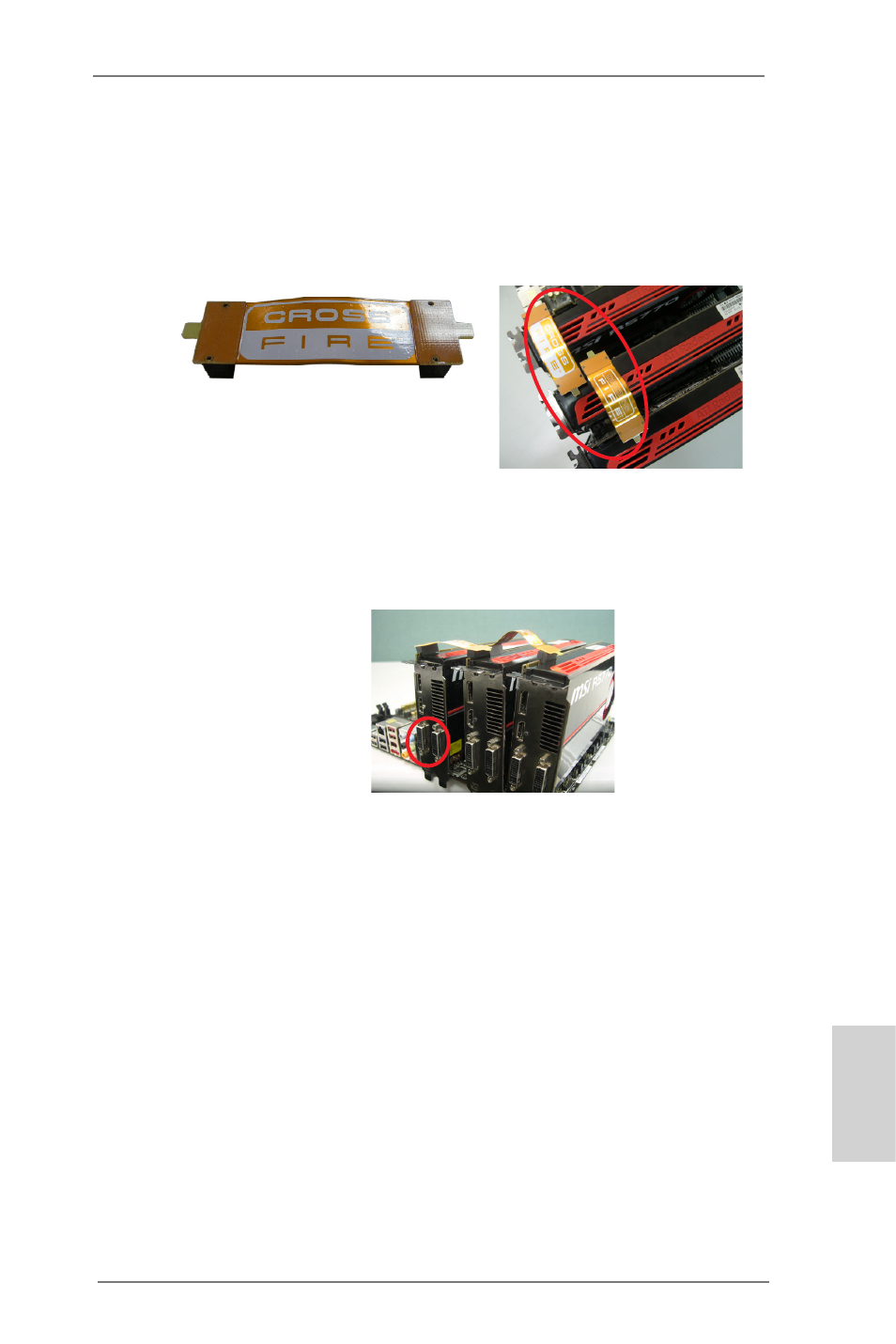

Step 2. Use one CrossFire

Bridge to connect Radeon graphics cards on PCIE1

and PCIE4 slots, and use the other CrossFire

Bridge to connect Radeon

graphics cards on PCIE4 and PCIE5 slots. (CrossFire

Bridge is provided

with the graphics card you purchase, not bundled with this motherboard.
Please refer to your graphics card vendor for details.)

CrossFire

Bridge

Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE1 slot. (You may use the DVI to D-Sub adapter to convert
the DVI connector to D-Sub interface, and then connect the D-Sub monitor
cable to the DVI to D-Sub adapter.)

* CrossFireX

appearing here is a registered trademark of AMD Technologies Inc., and is

used only for identification or explanation and to the owners’ benefit, without intent to infringe.
* For further information of AMD CrossFireX

technology, please check AMD website for

updates and details.

Please refer to the “User Manual“ in our support CD for drivers installation and
setup procedures.
