ASRock FM2A85X Extreme4-M - Manual (Page 27)

27
ASRock FM2A85X Extreme4-M Motherboard
English

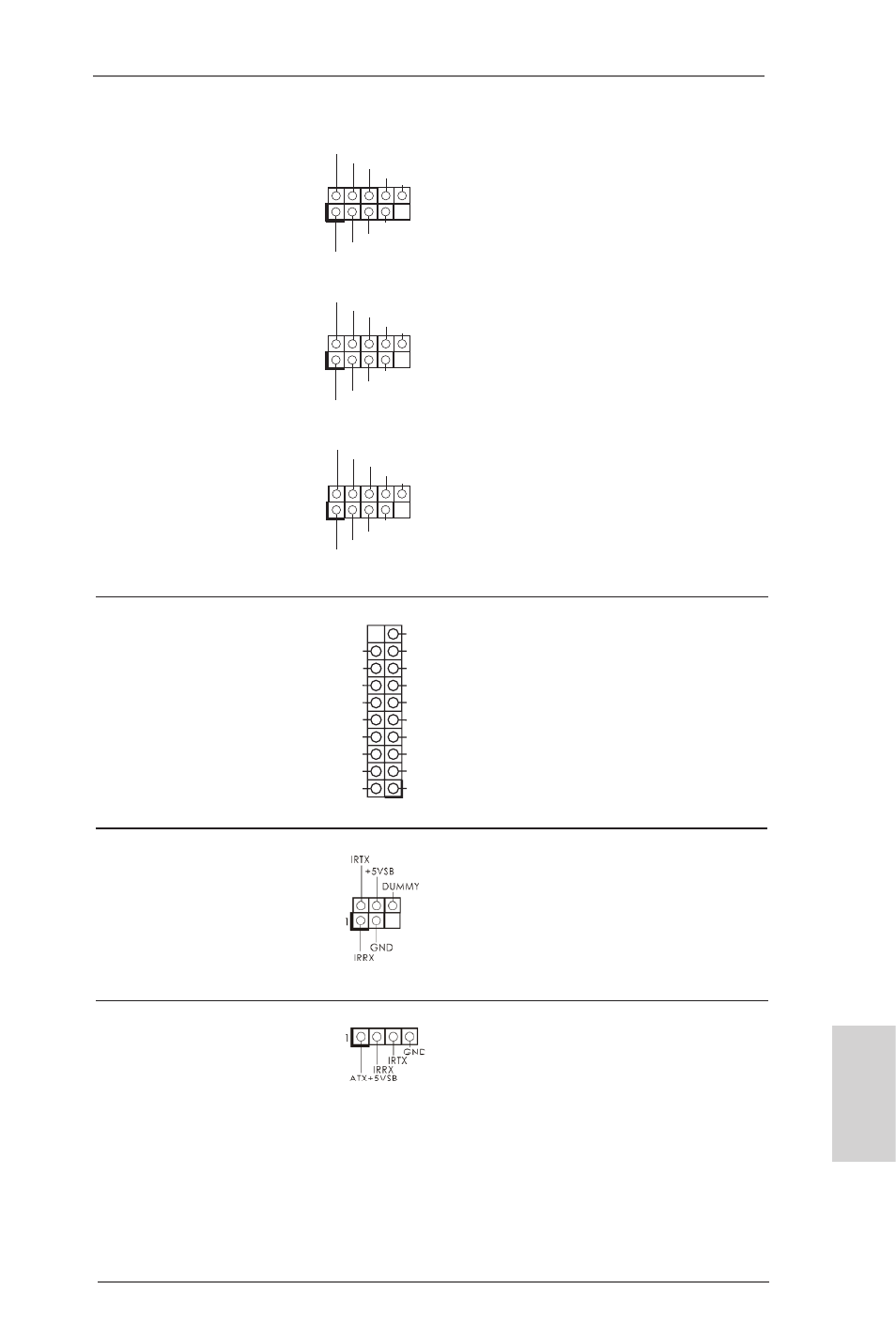

USB 2.0 Headers
and Ports
(9-pin USB5_6)
(see p.2 No. 24)
(9-pin USB7_8)
(see p.2 No. 26)
(9-pin USB9_10)
(see p.2 No. 28)
Besides four default USB 2.0
ports on the I/O panel, there
are three USB 2.0 headers
on this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
1
USB_PWR
P-6
P+6
USB_PWR
P-5
P+5
GND
GND
DUMMY
1
USB_PWR
P-8
P+8
USB_PWR
P-7
P+7
GND
GND
DUMMY
1
USB_PWR
P-10
P+10
USB_PWR
P-9
P+9
GND
GND
DUMMY
Consumer Infrared
Module Header
(4-pin CIR1)
(see p.2, No. 27)
USB 3.0 Header
(19-pin USB3_3_4)
(see p.2, No. 10)
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on
this motherboard. Each USB
3.0 header can support two
USB 3.0 ports.
This header supports an
optional wireless transmit-
ting and receiving infrared
module. Infrared Module Header
(5-pin IR1)
(see p.2, No. 31)
This header can be used
t o c o n n e c t t h e r e m o t e
controller receiver.
IntA_P4_D+
DUMMY
IntA_P4_D-
GND
IntA_P4_SSTX+
GND
IntA_P4_SSTX-
IntA_P4_SSRX+
IntA_P4_SSRX-
Vbus Vbus
Vbus
IntA_P3_SSRX-
IntA_P3_SSRX+
GND
IntA_P3_SSTX-
IntA_P3_SSTX+
GND
IntA_P3_D-
IntA_P3_D+
