26
ASRock FM2A85X Extreme4-M Motherboard
English
Serial ATA3 Connectors
(SATA3_1:
see p.2, No. 18)
(SATA3_2:
see p.2, No. 19)
(SATA3_3:
see p.2, No. 20)
(SATA3_4:
see p.2, No. 17)
(SATA3_5:
see p.2, No. 16)
(SATA3_7:
see p.2, No. 15)
(SATA3_8:
see p.2, No. 14)
Print Port Header
(25-pin LPT1)
(see p.2, No. 29)
1
AFD#
ERROR#
PINIT#
GND SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
Serial ATA (SATA)
Data Cable
(Optional)

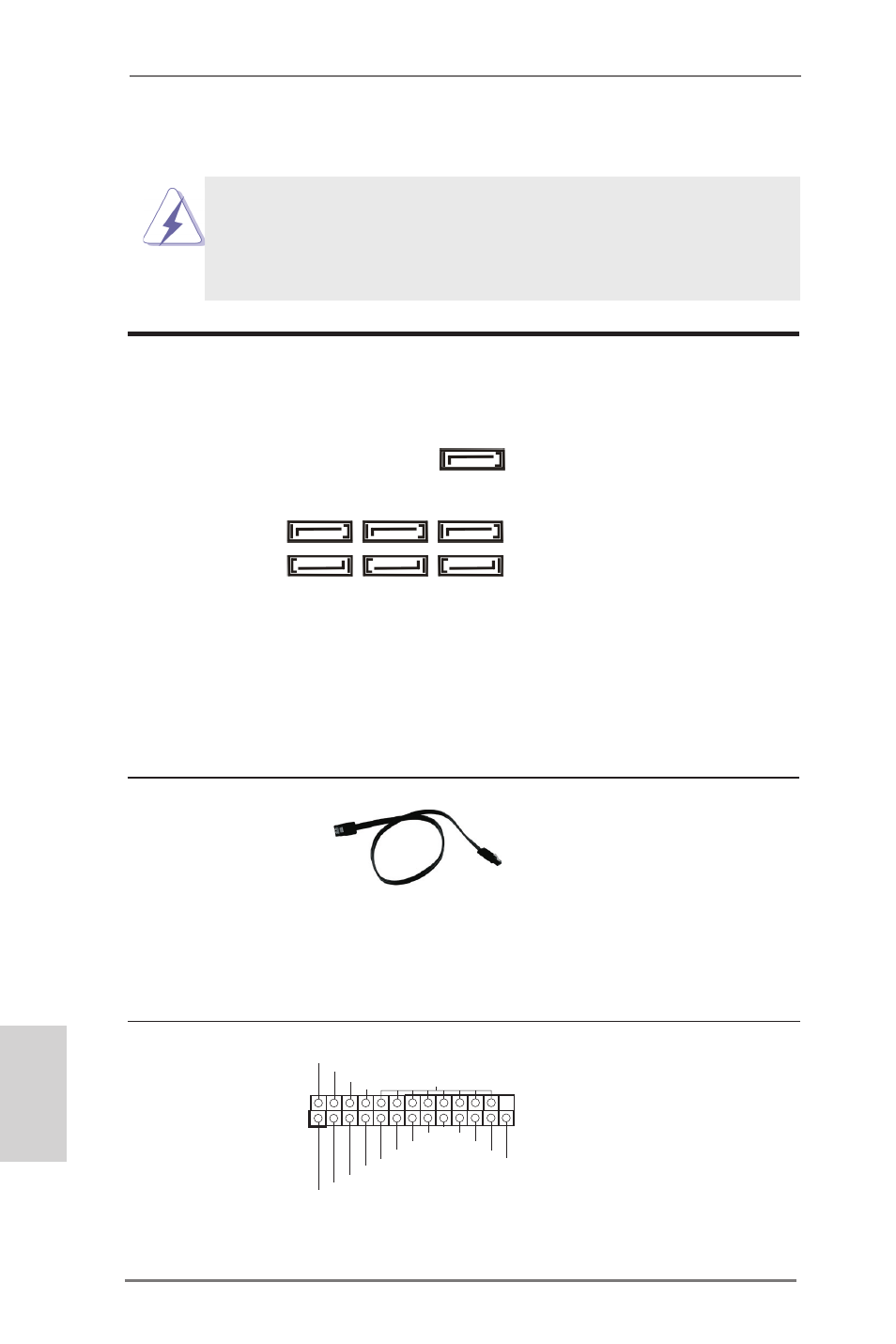

2.7 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT
place jumper caps over these headers and connectors. Plac-
ing jumper caps over the headers and connectors will cause
permanent damage to the motherboard!
These seven Serial ATA3
(SATA3) connectors sup-
port SATA data cables for
internal storage devices.
The current SATA3 interface
allows up to 6.0 Gb/s data
transfer rate.
Either end of the SATA data
cable can be connected to
SATA / SATA2 / SATA3 hard
disks or the SATA2 / SATA3
connectors on this mother-
board.
This is an interface for print
port cables that allows con-
venient connection of printer
devices.
SATA3_7 SATA3_5 SATA3_4
SATA3_3 SATA3_2 SATA3_1
SATA3_8
