ZyXEL Communications PRESTIGE 153 User Manual
Page 27
Prestige 153/153X WAN Bridge/Routers
Getting to Know Your Bridge/Router
1-7
1.4.4 Prestige 153X Back Panel

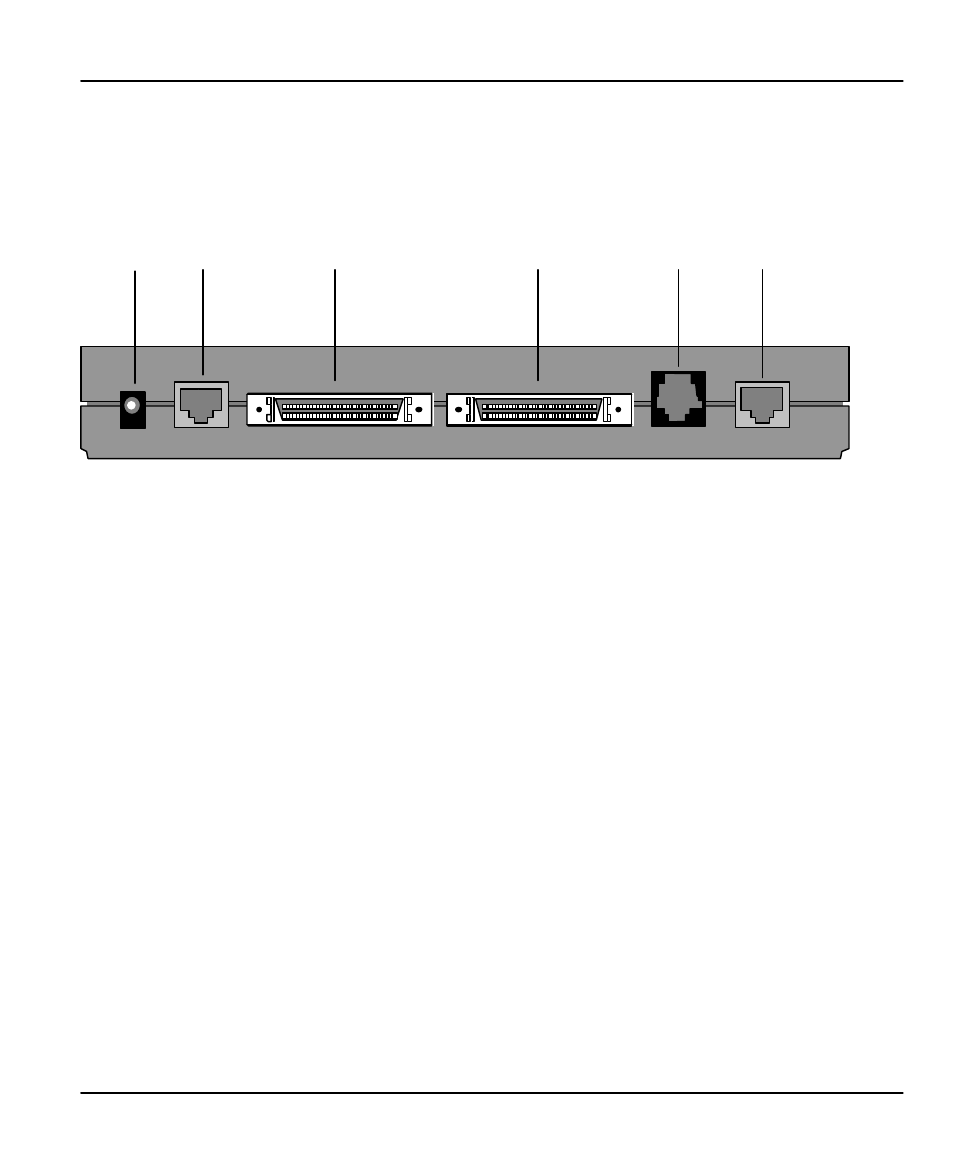

Figure 1-3 shows the rear panel of your Prestige 153X. Refer to this diagram when making
connections.
ℵ
:
POWER = power connector to the AC adapter.
ℑ
:
LAN = RJ-45 Ethernet 10Base-T port (metallic).
ℜ
:
CONSOLE = RJ-45 Console port (off-white).
℘
:
WAN-1 = 68-pin WAN port 1.
⊗
:
WAN-2 = 68-pin WAN port 2.
⊕
:
WAN-3 = RJ-45 WAN port 3 (black).
Figure 1-3.
Prestige 153X Back Panel Ports
ℵ
ℑ
⊕
POWER
LAN
WAN-1
WAN-2
WAN-3
CONSOLE
ℜ
℘
⊗
