Prestige 153/153X WAN Bridge/Routers
1-4 Getting to Know Your Bridge/Router
1.4 Front Panel LEDs and Back Panel Ports
1.4.1 Prestige 153/153X Front Panel
ℵ
:
PWR = Power Indicator
ℑ
:
RUN = Running Indicator (Blinking)
ℜ
:
ETHERNET (LNK/RX, TX, COL) = Receive, Transmit, Collisions on LAN
℘
:
WAN-1 (RDY, TX/RX) = WAN port 1 Ready, Transmit/Receive
⊗
:
WAN-2 (RDY, TX/RX) = WAN port 2 Ready, Transmit/Receive
⊕
:
WAN-3 (RDY, TX/RX) = WAN port 3 Ready, Transmit/Receive

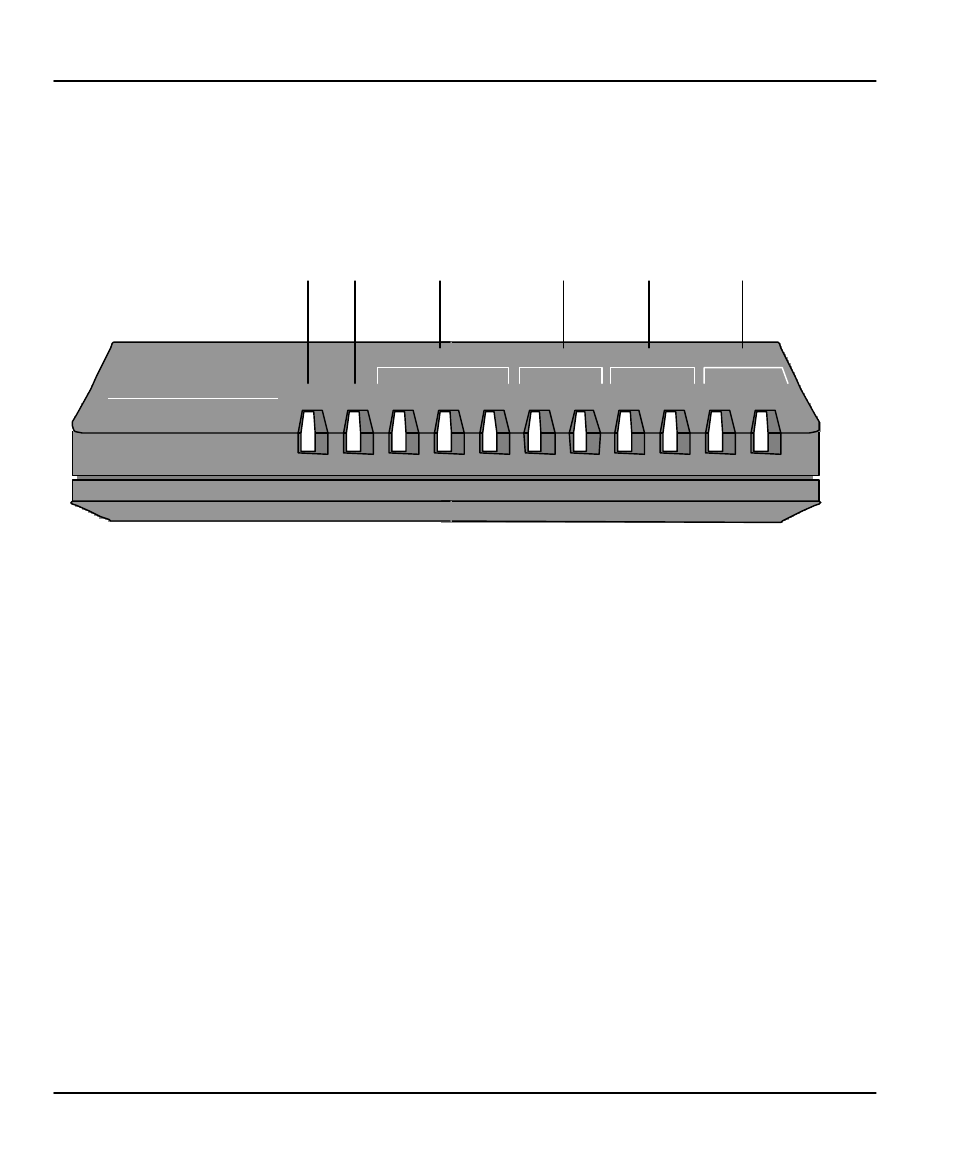

Figure 1-1. Prestige 153/153X Front Panel
ℵ ℑ ℜ ℘ ⊗ ⊕
ETHERNET WAN-1 WAN-2 WAN-3
PWR TST LNK/RX TX COL RDY TX/RX RDY RDY TX/RX TX/RX
Prestige 153/153X
WAN Bridge/Router
