Prestige 153/153X WAN Bridge/Routers
1-6 Getting to Know Your Bridge/Router
1.4.3 Prestige 153 Back Panel

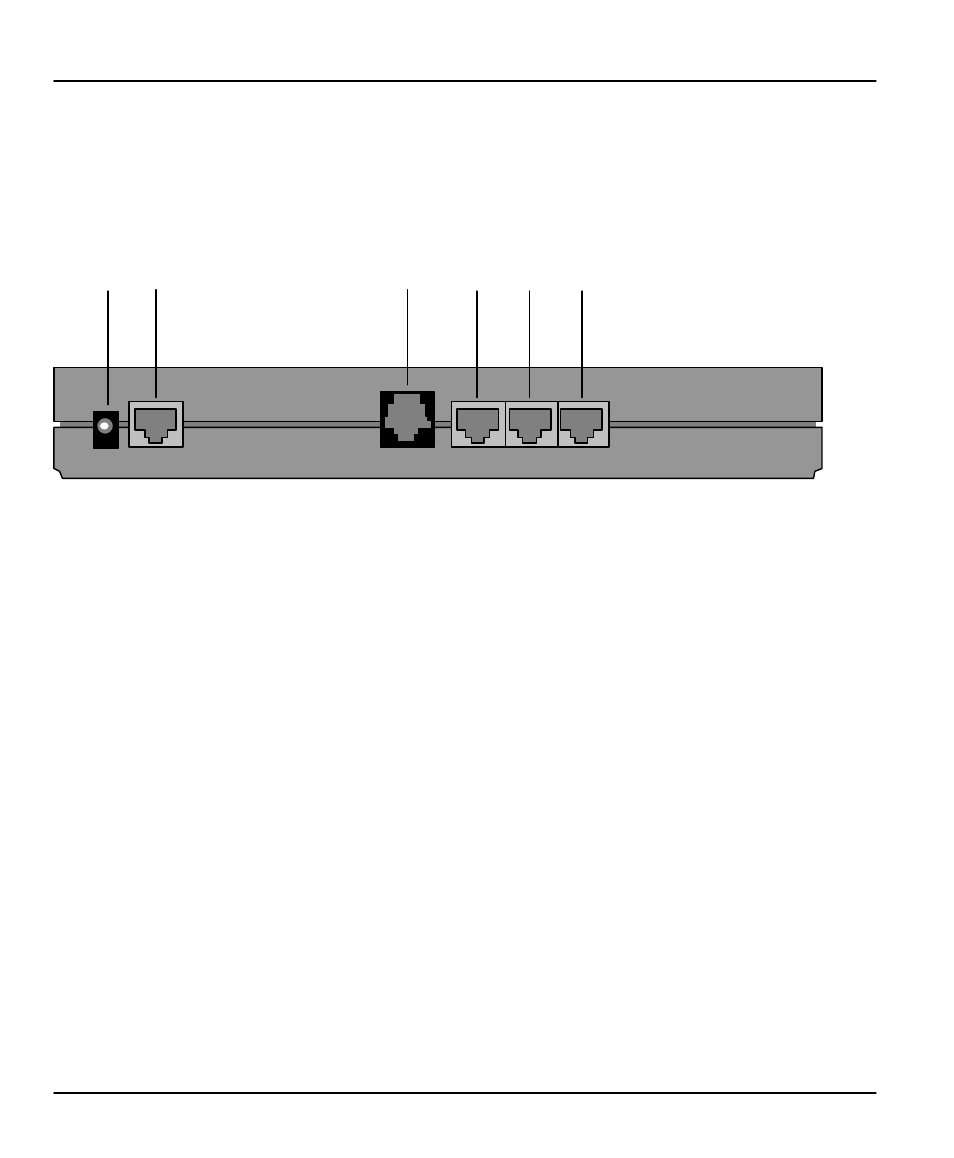

Figure 1-2 shows the rear panel of your Prestige 153. Refer to this diagram when attempting to
make connections.
ℵ
:
POWER = power connector to the AC adapter.
ℑ
:
LAN = RJ-45 Ethernet 10Base-T port (metallic).
ℜ
:
CONSOLE = RJ-45 Console port (off-white).
℘
:
WAN-1 = RJ-45 WAN port 1 (black).
⊗
:
WAN-2 = RJ-45 WAN port 2 (black).
⊕
:
WAN-3 = RJ-45 WAN port 3 (black).
Figure 1-2. Prestige 153 Back Panel Ports
ℵ ℑ ℜ ⊗
POWER LAN WAN-1 WAN-2 WAN-3 CONSOLE
⊕ ℘
