DocuColor 5000 Administrator Guide 2-25
2. System Settings

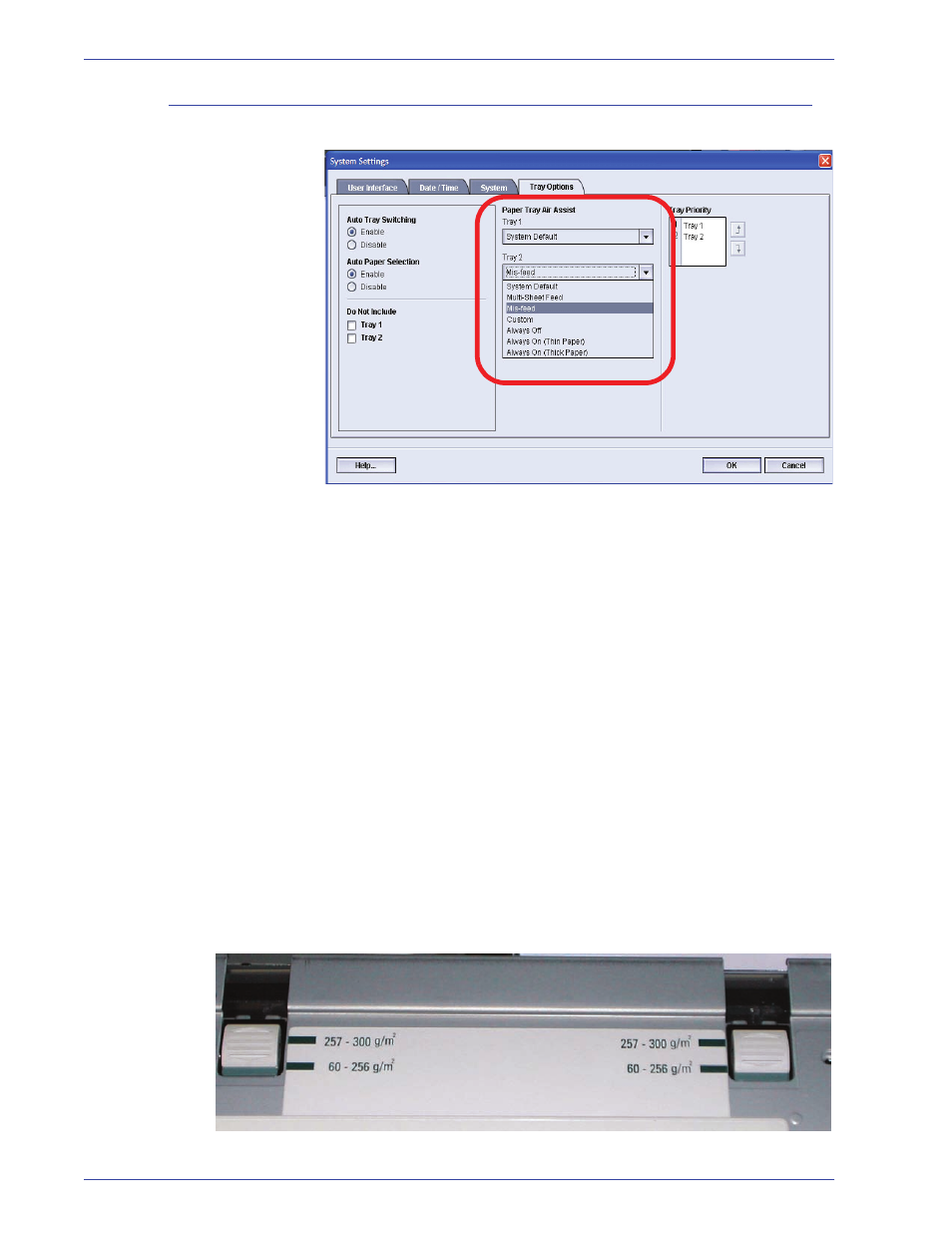

Paper Tray Assist
Blowers help control the environmental conditions in the paper
trays to ensure optimum print capability:
• Each paper tray has two blowers and two fans. The
blowers are located in the front of each tray, while the two
fans are located on the right-side of the tray.
• The lead edge blower is on at all times and produces
heated air if one of the following selections are
made: Coated paper, Transparencies, or Plain paper 106
g/m
2
or heavier. The trail edge blower is on at all times and
does not produce heated air.
• The paper trays also have air adjustment levers on the
drawer to regulate the direction of the air:
– If the paper weight is between 60 and 256 g/m
2
, the
position of the air adjustment levers should be toward
the front of the tray.
– If the paper weight is between 257 and 300 g/m 2 , the
position of the air adjustment levers should be
positioned toward the rear of the tray.
