Operations
Load Media 46
79695L-002 Rev. A Z Series ® /RZ™ Series User Guide 6/6/08

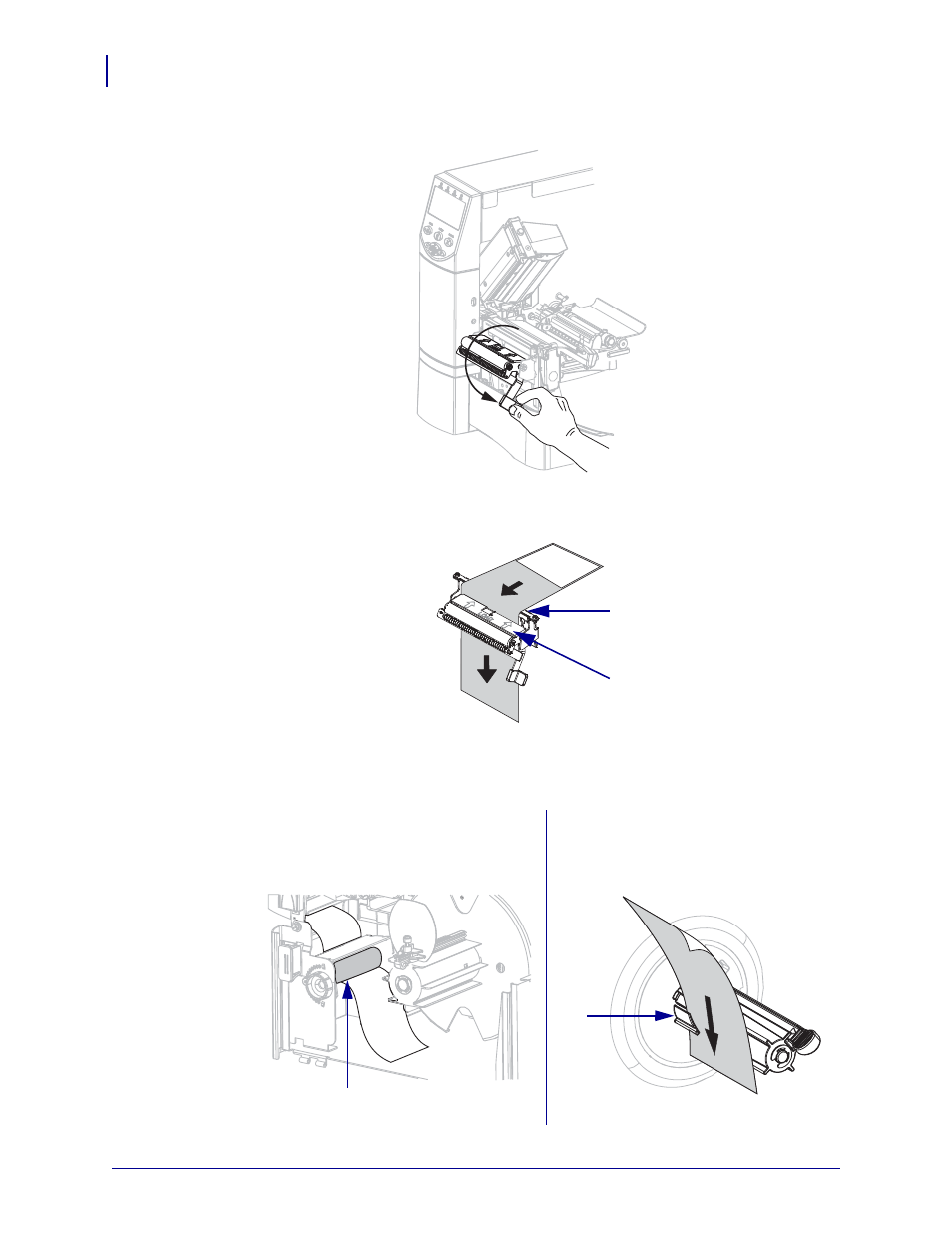

3. Push down the peel-off mechanism release lever to open the peel assembly.
4. Feed the liner over the tear-off/peel-off bar (
1
) and behind the peel assembly (
2
). Make
sure that the end of the liner falls outside of the printer.
5. Complete this step only if you want to use Peel-Off mode with liner take-up. Your printer
must have the Liner Take-Up option or the Rewind option installed. Follow the
instructions for your printer option.
Rewind Option Liner Take-Up Option
a. Feed the liner under the media
alignment roller (
1
).
a. Slide the liner into the slot in the
liner take-up spindle (
1
).
1
2
1
1
