1-13 Ethernet cable connection

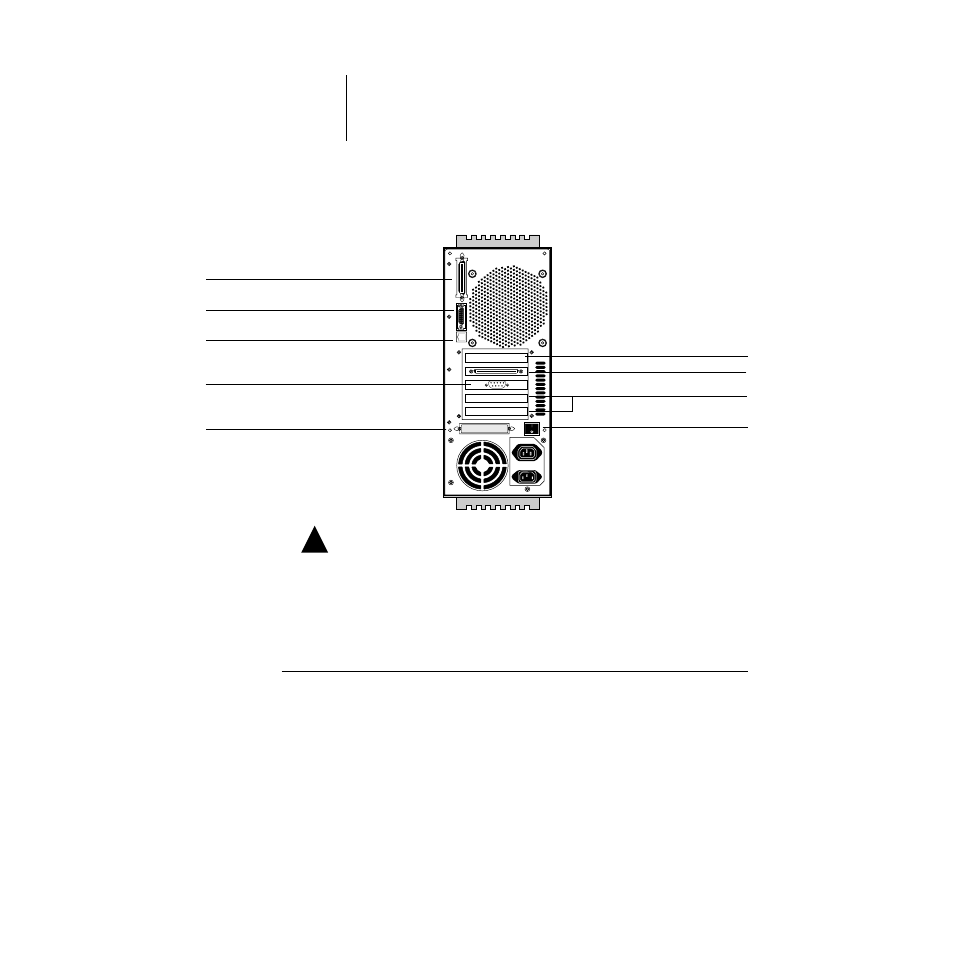

Back view of the DocuColor
Shut down the DocuColor before connecting it to any network device .
N OTE : Do not attach the cable to more than one Ethernet connector on the DocuColor
at one time.
If the Token Ring option is installed, you can attach an unshielded twisted pair cable to
the RJ-45 connector on the Token Ring board and attach a second cable to the RJ-45
Ethernet connector. For more information on Token Ring, see Appendix A.
T O USE THINNET CABLE :
1. With the DocuColor turned off, connect the transceiver to the AUI connector on the
back of the DocuColor. Press down on the latch to lock the transceiver connection.
2. Connect the thinnet cable to the BNC connector on the transceiver.
3. Configure network servers for printing and then proceed to Setup.
Centronics-type parallel connector
AUI connector for thinnet and thicknet
RJ-45 connector for twisted pair Ethernet
SCSI connector for external CD-ROM drive
Copier connector slot
Power switch
Serial port
Slots for Token Ring option
Slot for 100BaseT option
!
