Running the sequence program Power Supply setup
In addition to the already familiar power modules condensed status symbols, the
lower row of the display shows a list of system parameters as summarized in the
following table:
Parameter Description
DSPL Set the LCD contrast settings.
BUZ Select the behavior of the internal buzzer (audible alarm).
SER
Temporary (1) activation of the RS232 serial communication
link, selection of operating mode and setting of parameters.
GPIB
Temporary (1) activation of the GPIB communication link and
setting of parameters.
ON Select a state for the power-on retain flag.
(1) Following power-on or a full reset the RS232 and GPIB link activation state is
restored from the dip switches located at the back of the unit.
Viewing system controller information
While the cursor is a the system symbol, press the RCL key to view firmware
version and date, as illustrated bellow:
Setup mode
indication
system
symbol
system
parameters to set
condensed
modules status
Product
name
Firmware
version
Firmware
date

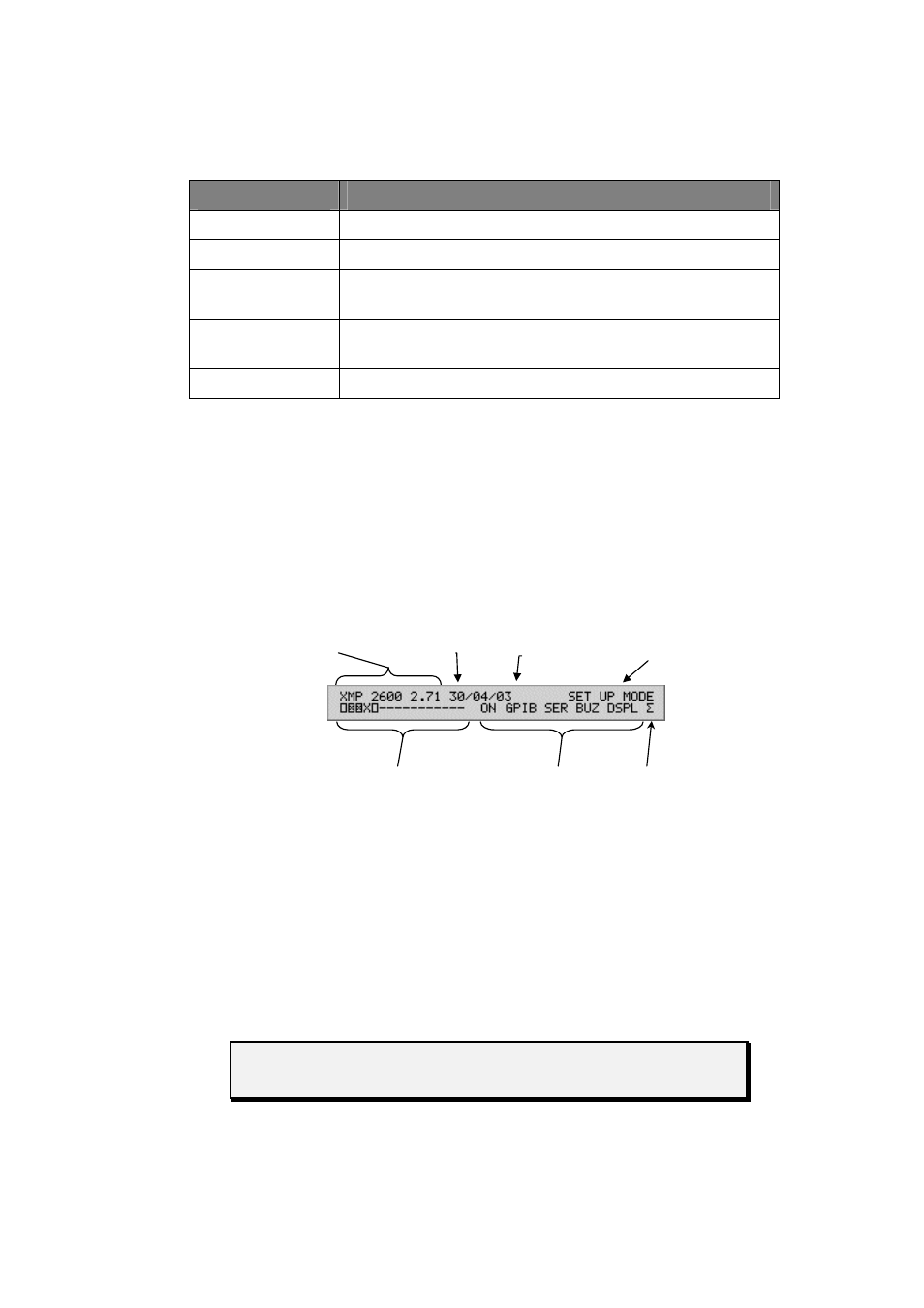

Setup mode display – system controller information
To clear the display, press the SYSTEM key or the LEFT / RIGHT selection keys.
Leaving setup mode
To leave the setup mode of operation proceed as follows:
Move the cursor to the system symbol (“Σ”) using the SYSTEM key.
Press SET.
The SYSTEM key will always move the cursor to the system
symbol even when setting communication link parameters.
78 XMP 2600 User’s Guide rev. 1.0
