Step 1: program output voltage and current First operation steps
IF… Take the action…
You are unable to get the display
you want using the instructions
above.
Reset the power supply:
Method 1: Press and hold the DEL key and
then press LOCAL - the two keys
must be pressed together.
Method 2: recycle power using the line
switch.
Select the power module to program
Now you select the power module to be programmed using one of the following
methods:
Moving the cursor .......... Use the left and right selection (arrow) keys ←
→ to move the cursor to the condensed status
symbol of the desired power module.
Jumping to channel......... press the CH key and in the entry field that
opens at the lower row of the display, enter
(using the numeric entry keys) a two digits
module address or a single digit address followed
by the
ENTER key.
The display should show either LOAD or OUT values. If it does not, use the up and
down selection keys to change the displayed information.
Enter
programming
mode
Press the SET key to enter programming mode. The blinking black rectangle is now
replaced with a blinking carrot (“^”) and the cursor is moved to the upper row of the
display where it appears as an underline (“_”) under the voltage value.
What is displayed
When operating in programming mode, the upper row of the display allows you to
program various power module parameters.
The left part of the display’s upper row shows the parameter’s name and the values
associated with it, while the right side gives you entry guidelines.
cursor
system
symbol
system status
or instructions
condensed
modules status
Entry
guidance foldback
selection operating
mode
value Parameter

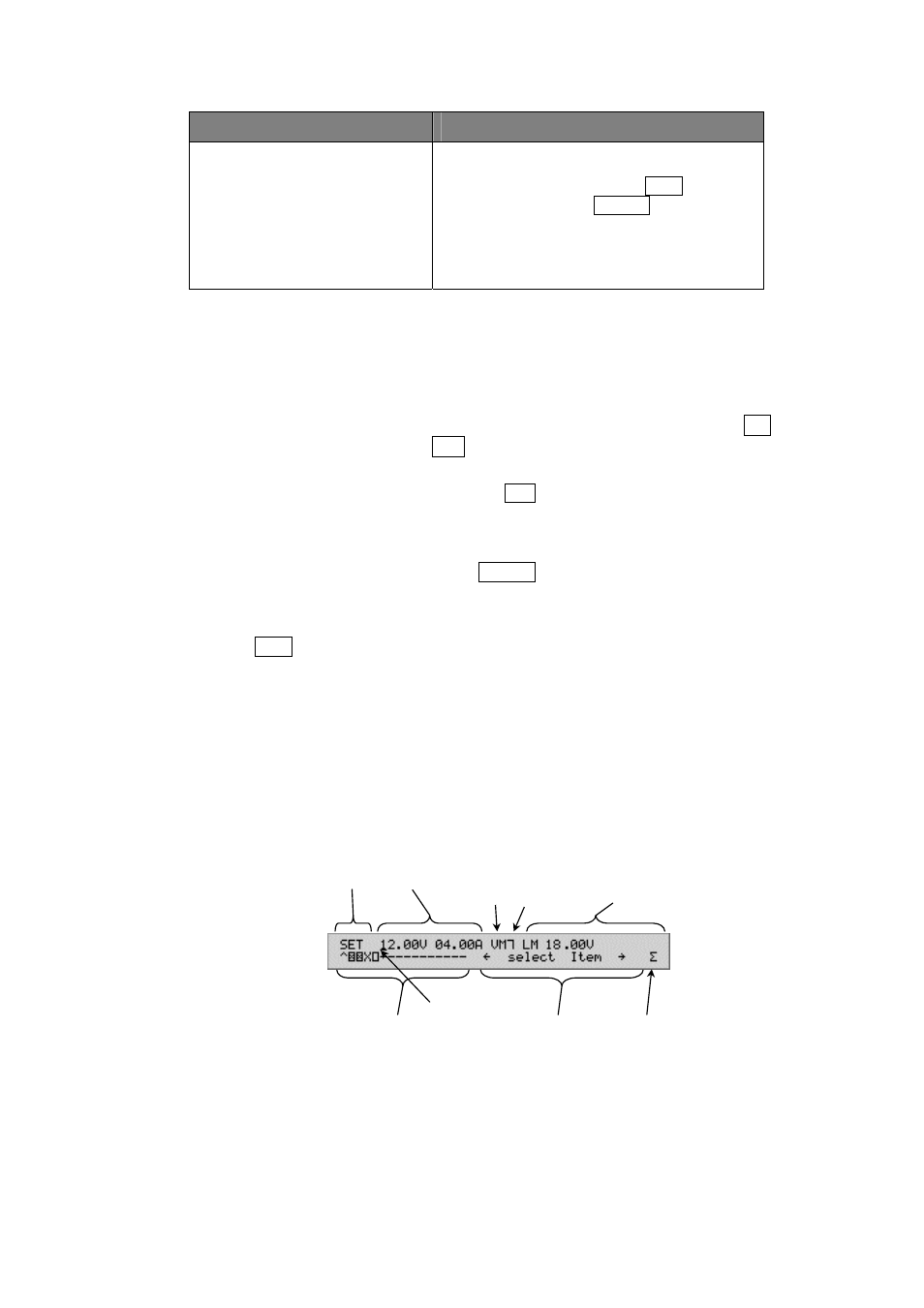

Display in programming mode showing SET values
38 XMP 2600 User’s Guide rev. 1.0
