Oad wiring for modules with dual connectors, Load wiring for modules with dual connectors – Xantrex Technology XMP 2600 User Manual
Page 32
Installation
Load
Connection

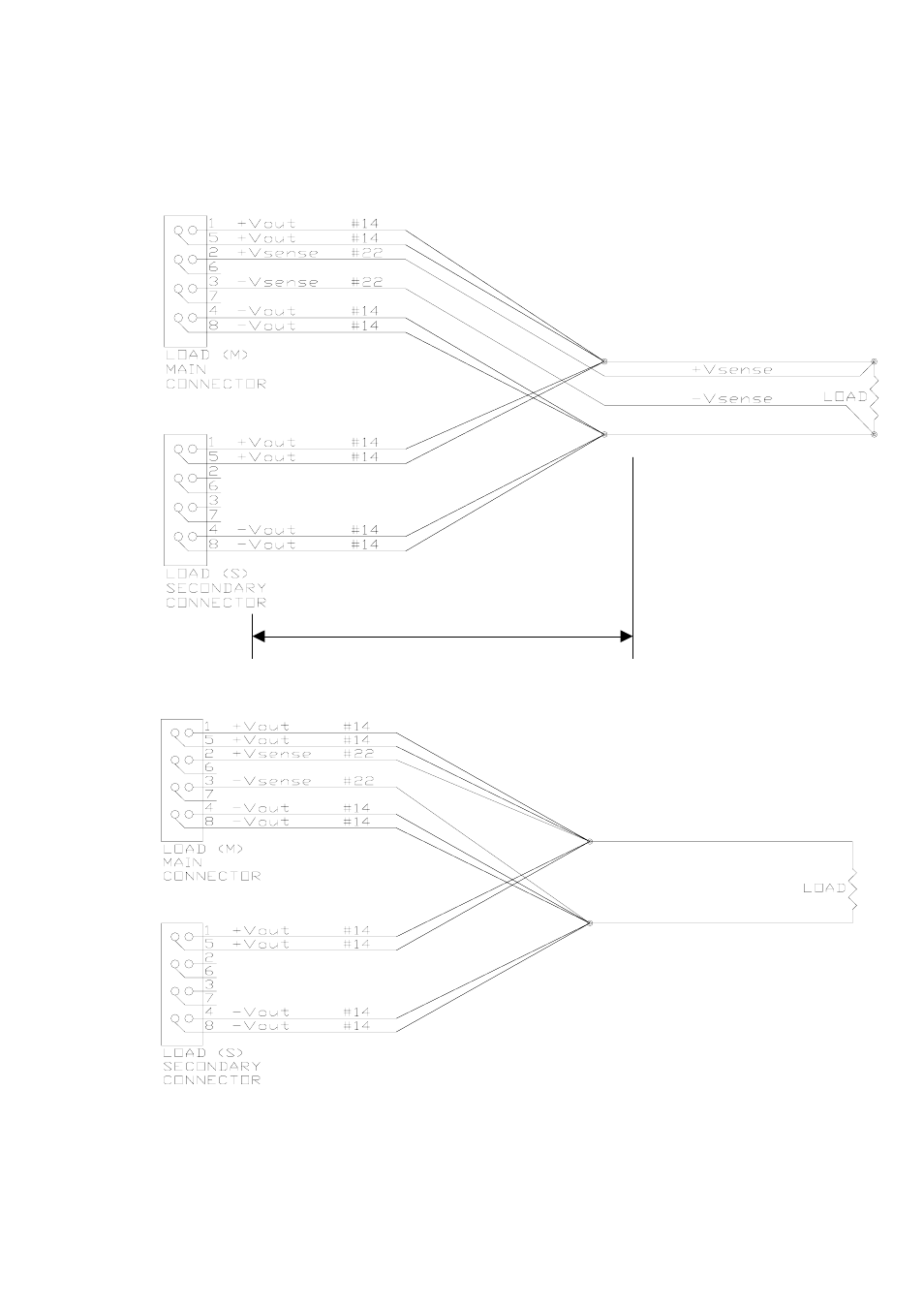

The following illustrations depict both the local and remote sensing connections for
modules with two output connectors (high current modules).
The following illustrations depict both the local and remote sensing connections.
Remote Voltage Sensing
Load wiring
for modules
with dual
connectors
>15cm
Local Voltage Sensing
XMP 2600 User’s Guide
rev. 1.0
13
