ML310 PM Connectors
The ML310 PM connectors are Tyco Z-Dok+ connectors, part number 1367550-5. The "-5"
suffix indicates a 40 pair connector. Each connector has 40 differential pairs and several
power and ground pins.
Together, the two PM connectors on the ML310 support 158 high-speed I/O pins that can
be user defined. The PM1 and PM2 signals are as follows:
•
8 RocketIO MGT pairs (32 pins total)
•
42 LVDS pairs (can be used as 84 single-ended I/O at 2.5V)
•
1 LVDS clock pair
•
38 single-ended I/O
♦
12 at 2.5V
♦
26 at 3.3V
•
2 single-ended 2.5V clocks
•
2 pins not connected
The Tyco data sheet for part number 1367550-5 is available at
.

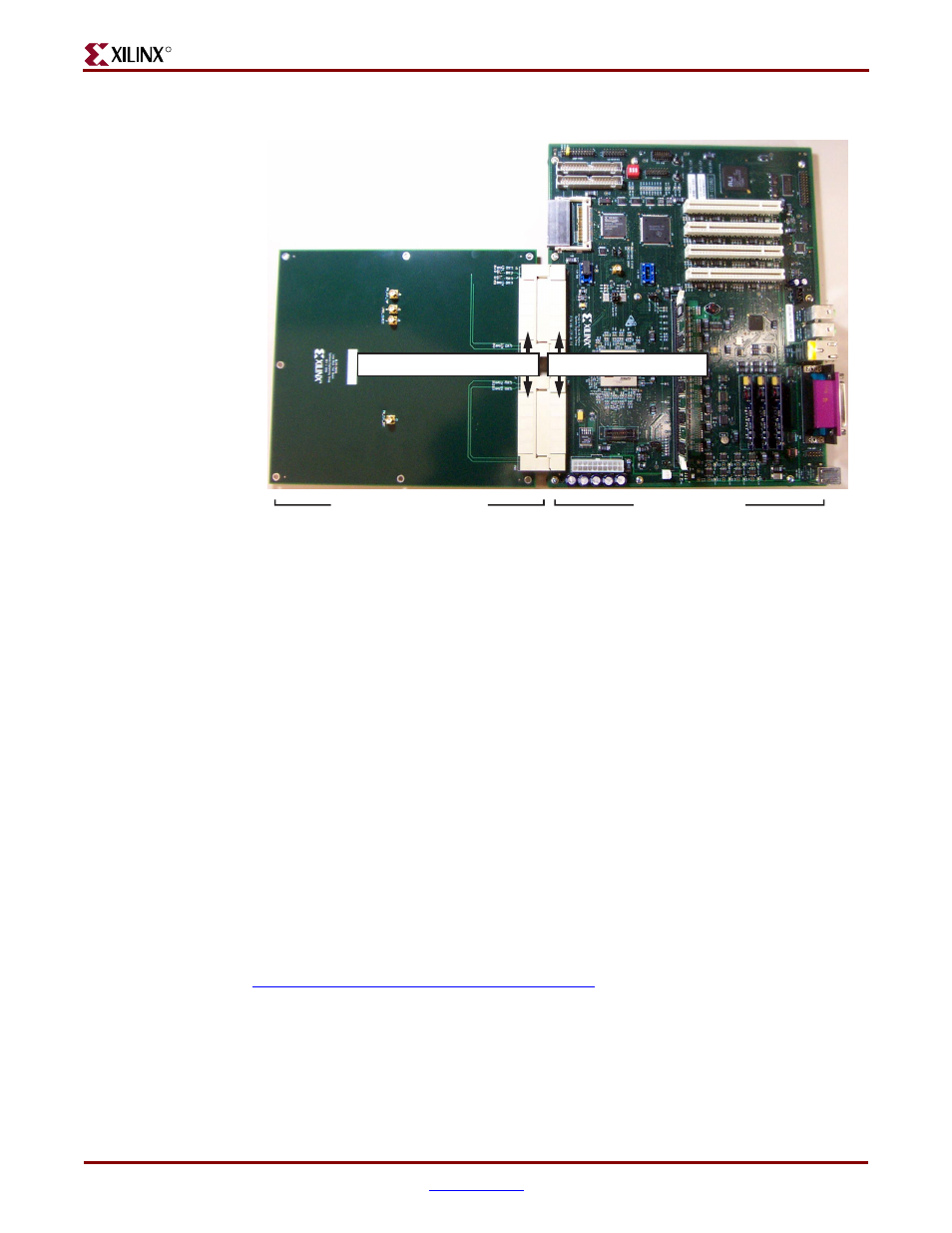

Figure 2-19:
Personality Module Connected to ML310 Board
Host Board Connector
Adapter Board Connector
PM1
PM2
Personality Module
ML310 Board
