Parallel connection
The printer supports a standard (uni-directional) parallel port. The parallel
port can also be set for bi-directional communications using downloadable
utility files or from your World Wide Web browser. Refer to the printer’s
CD-ROM or the PhaserShare Network Cards and Software System Administrator
Manual, respectively, for information on changing parallel communications.
Connect to the printer’s parallel port using the high-density bi-directional
parallel cable included with your printer. This cable is a 36-pin high-density
printer to 25-pin DSUB PC cable.

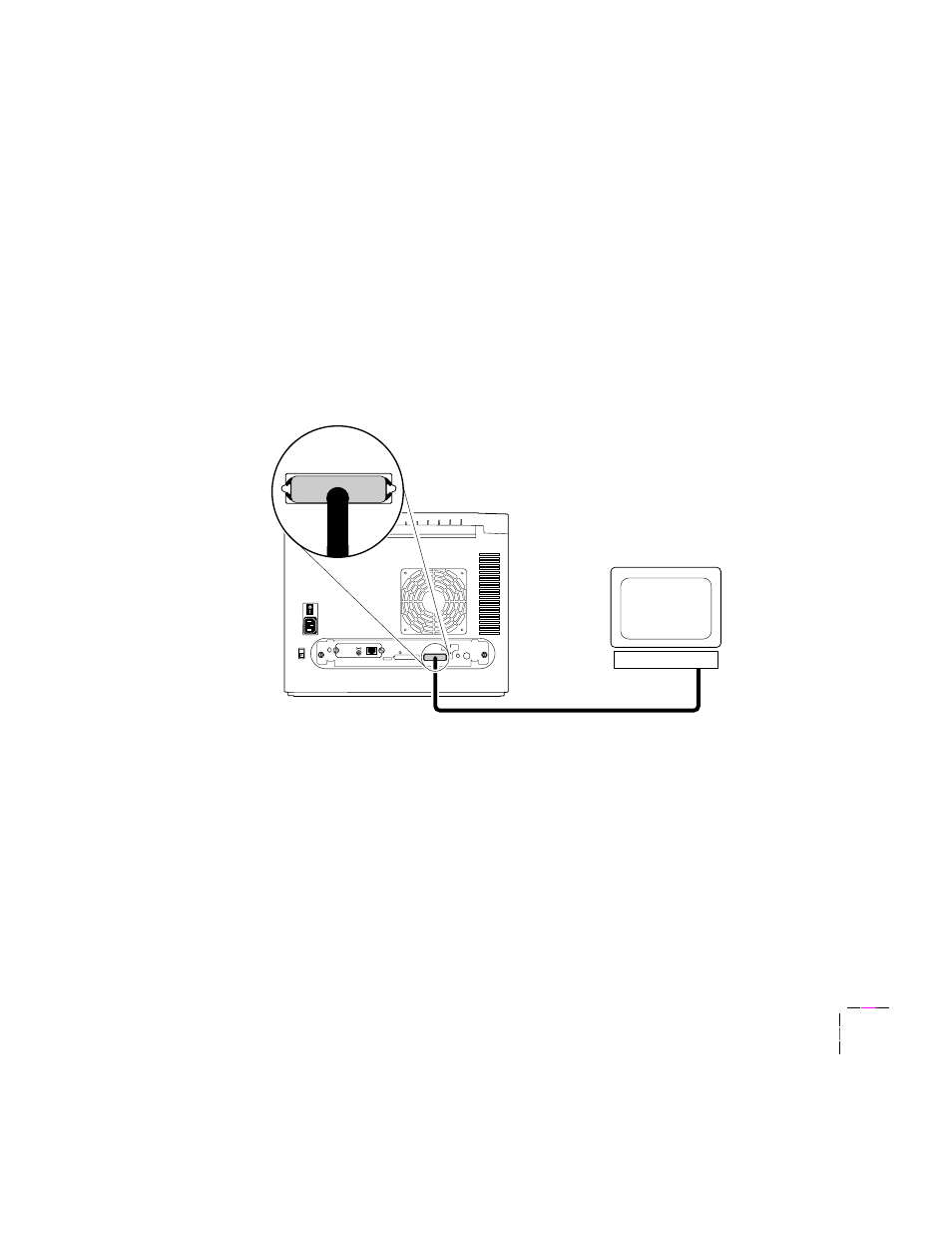

Using the following illustration, connect a parallel interface cable to your
computer and to the printer’s parallel port.
