Installing External Parallel Printer

The Notebook is equipped with an external, bi-directional, ECC/EPP
compatible, 25-pin parallel printer port. The connector pinouts and
connector location are shown in Figure 2-12.

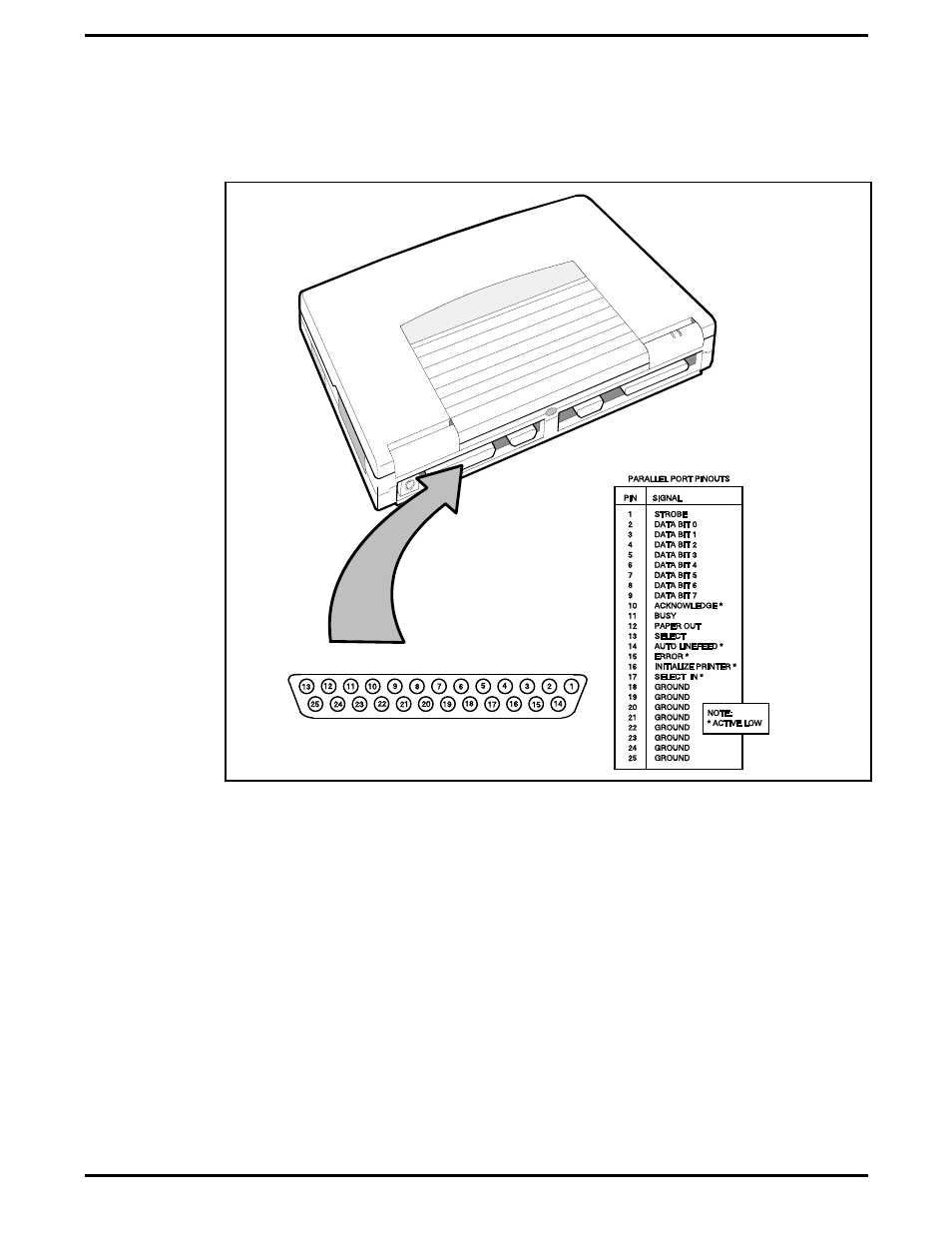

Figure 2-12 Parallel Printer Connector Pinouts

2-14 Installation
