Page 179
Table 6-11 LED Board, P/N 9786128-0001, Parts Listing
PART NO: 9786128-0001 PWB ASSY, LED BOARD, LILY REV: B/ D
Item
TI Part No.
Quantity
Description
01
9786130-0001
REF
LOGIC,LED BOARD,LILY
03
2567988-0003
2
LED,RED/GREEN-SHARP (VHPGL3ED8//-1)
D1,D2
04
9786245-0001
1
CABLE ASSY,LED PCB,TM5000
07
9786128-3301
1
BACKSIDE SMT PARTS FOR 9786128-0001
Note: The following is a breakout of item 7 above.
PART NO: 9786128-3301 BACKSIDESMT PARTS FOR 9786128-0001 REV: B/ D
Item
TI Part No.
Quantity
Description
02
9786129-0001
1
PWB,LED HINGE,TM5000
05
2548483-0001
2
TRANSISTOR, PNP, DTA114YK, SOT-23 PKG
Q1 Q2
06
2248601-0035
4
CHIP RESISTOR, 270 OHM, .1W, 5%, 0805 PKG
R1 R2 R3 R4

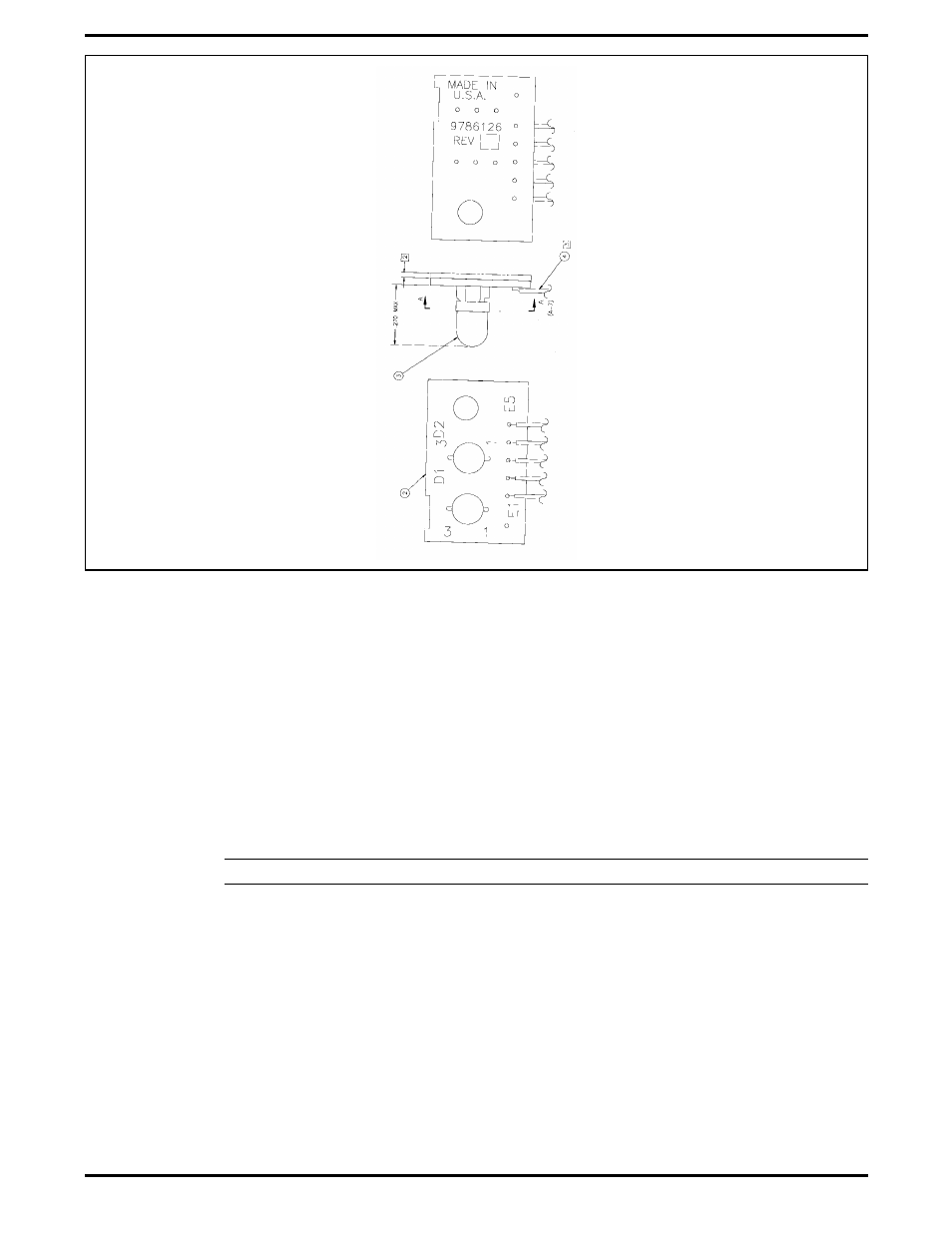

Figure 6-10 LED Board, P/N 9786128-0001
6-44 Illustrated Parts Listing
