Page 176

Table 6-9 IR Board, P/N 9798813-0001, Parts Listing
PART NO: 9798813-0001 PWB ASSY, UNIVER IR TRANSCEIVER, TM5000
REV: A/ C
Item
TI Part No.
Quantity
Description
01
9798815-0001
REF
LOGIC,UNIVERSAL IR TRANSCEIVER,TM5000
04
2248954-0002
2
LED,INFRARED EMITTING,T-1 PKG
CR1,CR2
05
2563216-0001
1
DIODE,IR DETECTING,60VR,1VF
CR3
14
2248332-0007
1
CRYSTAL RESONATOR,3.6864 MHZ,50%,3.6MM H
X1
17
2363830-0008
.0030
LABEL,SYMBOLIZATION (.375" X .375")
19
9798813-3301
1
BACKSIDE SMT PARTS FOR 9798813-0001

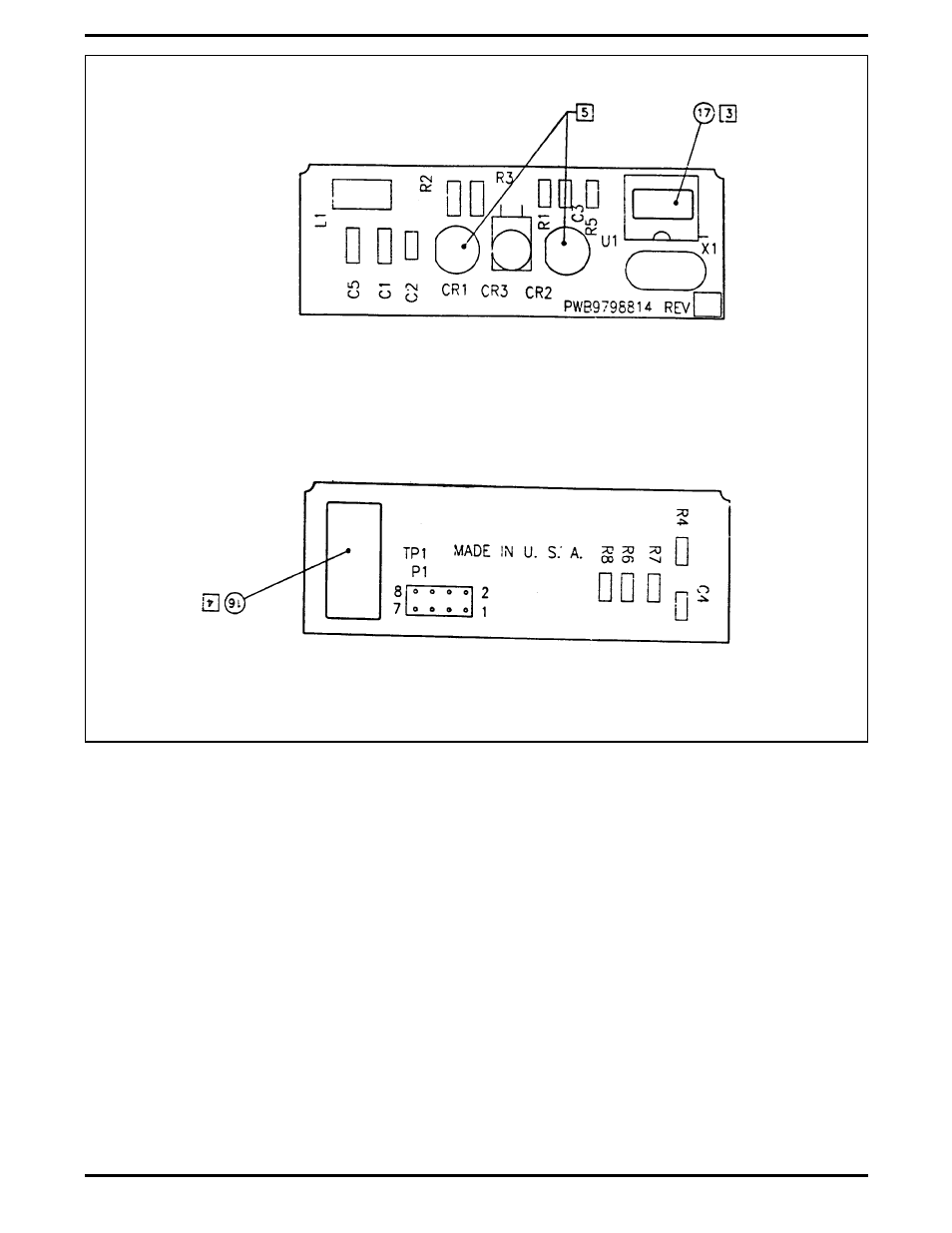

Figure 6-8 IR Board, P/N 9798813-0001
Illustrated Parts Listing 6-41
