Preparing and Starting a Calltrace

1. Click the processing element

Application

in the pipeline, which

you will find either in the monitor branch or in the recording branch.

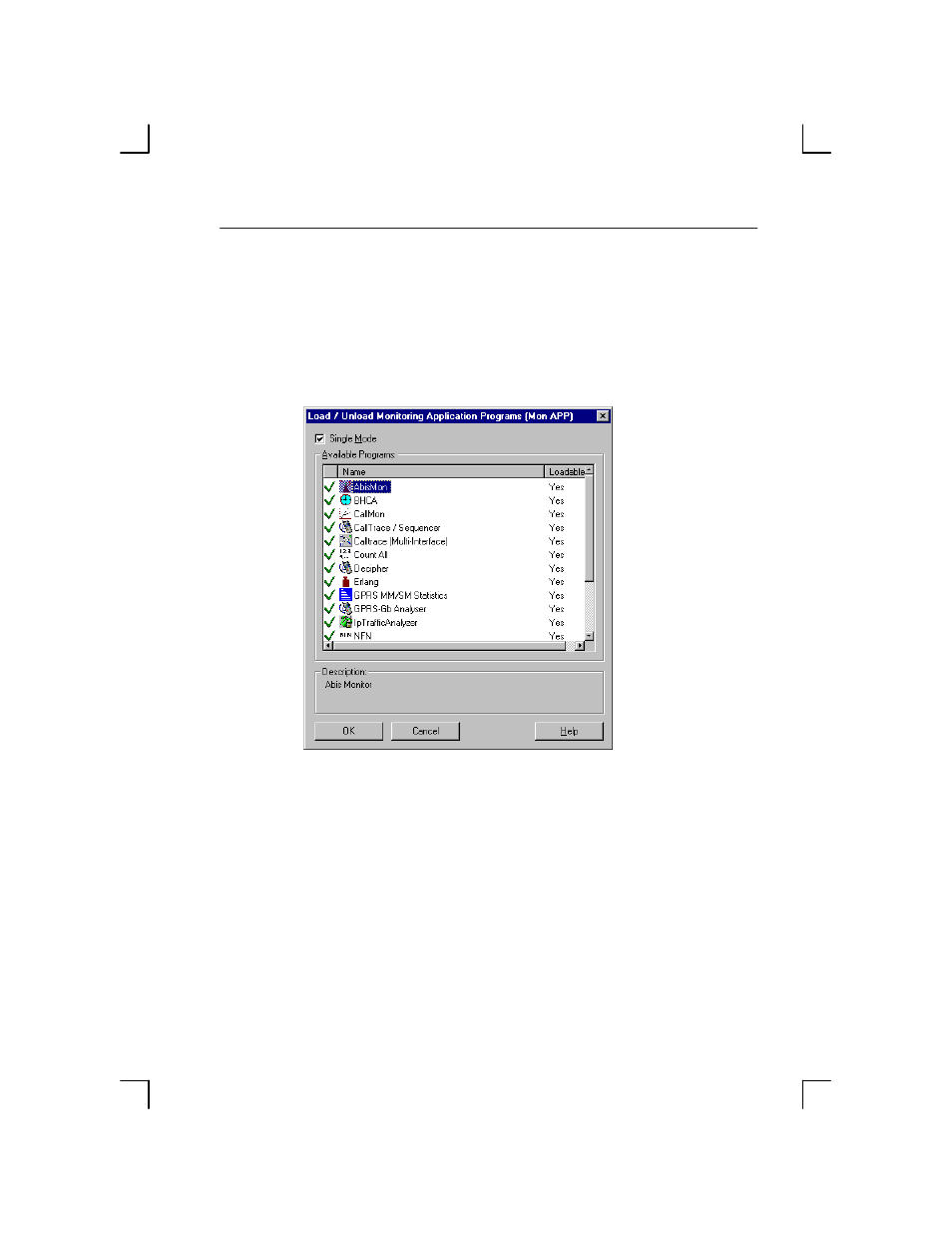

The following dialog box appears:

2. Select

CallTr/Seq

from the list of available applications and

confirm your selection with

Calltrace analyzes the data traffic of a variety of protocols. Therefore,
you have to select the protocol to be tested before starting Calltrace.
The

Calltr/Seq_1

window appears.
