Appendix A: Interfaces
K1297-G20 Monitor User Manual A-13

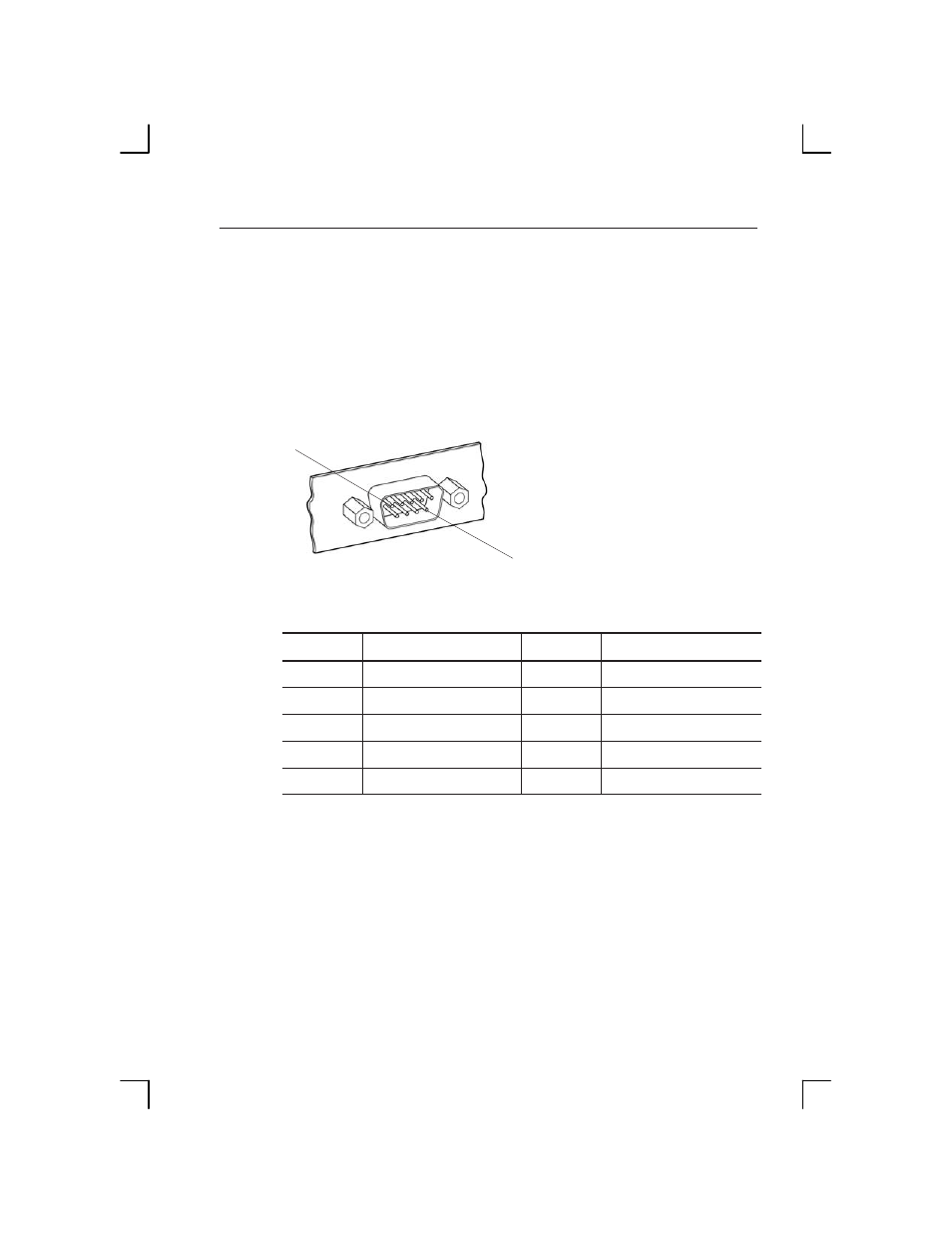

Serial Interface (COM2)
K1297. The serial interface (COM2) is on the rear of the device next to the
PC module front panel.
K1297 Compact. The serial interface (COM2) is behind the front cover
beneath the display.
1
9
Table A–9: Pin assignment for interface COM2
Pin Assignment Pin Assignment
1 DCD 6 DSR
2 RxD 7 RTS
3 TxD 8 CTS
4 DTR 9 RI
5 Ground
