Getting Started
K1297-G20 Monitor User Manual
31
Before setting the hex switch, check which settings are already used for

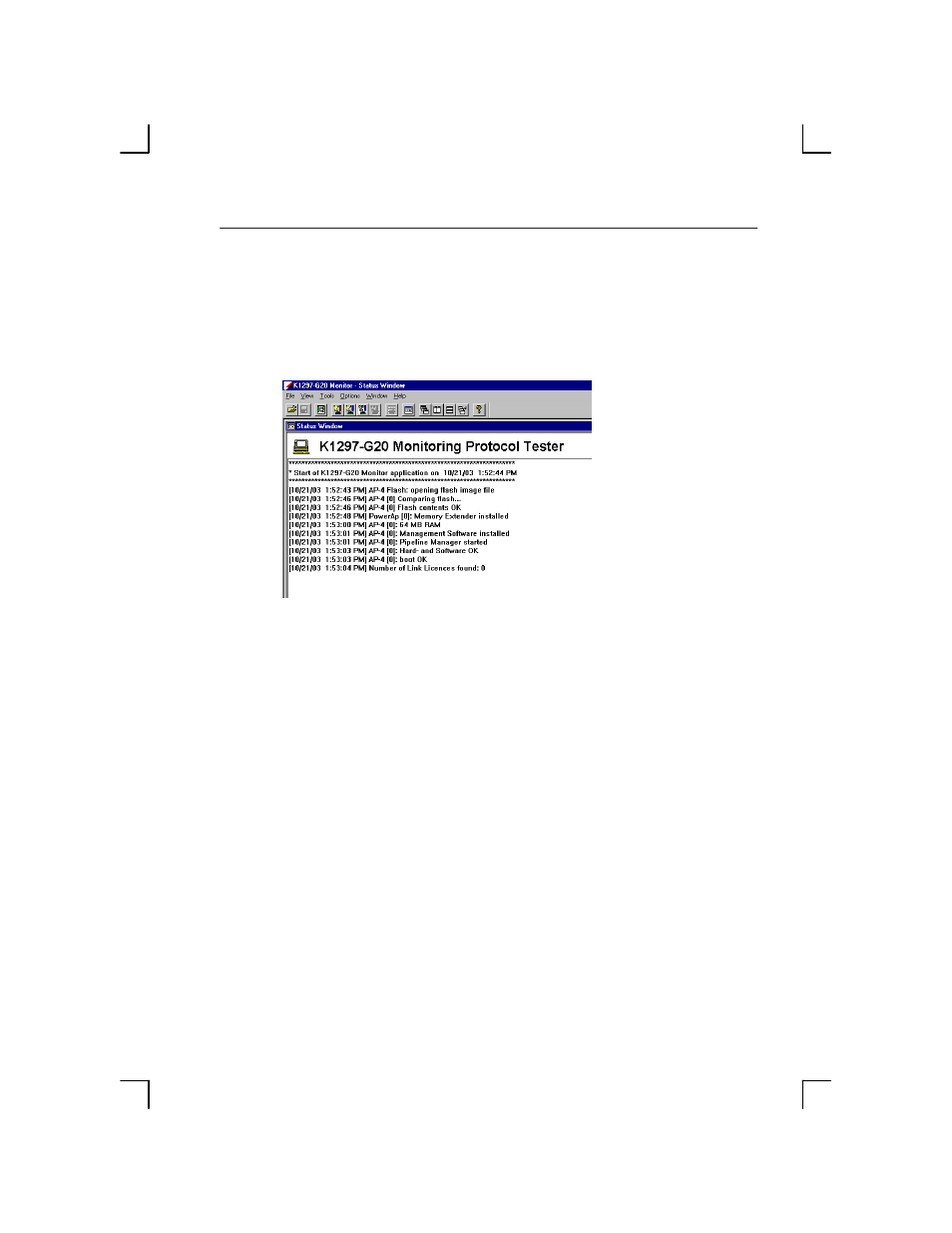

other boards. Therefore, open the K1297-G20 Monitor Status Window via
the appropriate button in the tool bar.
The hex switch of one board must be set on value 1. The values 0 and F
are reserved for the AP-4 board. Do not use the values 0 and F for other
boards and do not change the AP-4 settings.
