Examples

K1297-G20 Monitor User Manual

4. If you want to filter the signalling data according to certain criteria,

such as error events, proceed as follows: First click the pipeline
processing element

Filter

, then within the

Filter Setup

window click

Error Event

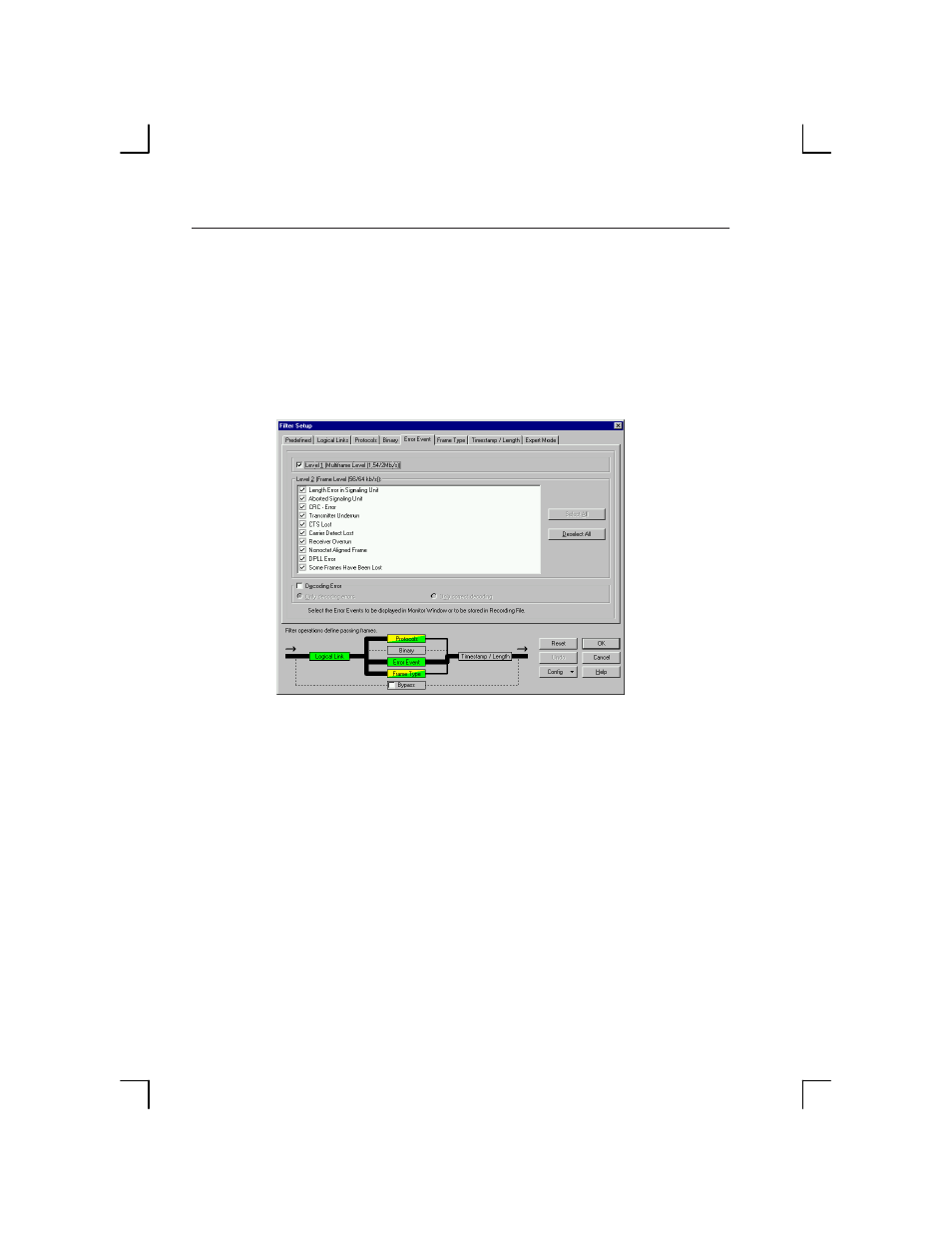

. The following figure shows the

Filter Setup

dialog for the

Display

Filter.

Proceed with your settings and confirm your selection with

5. To view the signalling data switch to the monitor main window by

clicking the processing element

Monitor

at the right end of the

pipeline. The monitor main window with the three views appears. You
can scroll through the recorded data flow using the arrow keys (

↓ and

↑) in the individual views.
