Appendix A: Interfaces
K1297-G20 Monitor User Manual A-41
Adapter Cables and Adapter Cable Interfaces

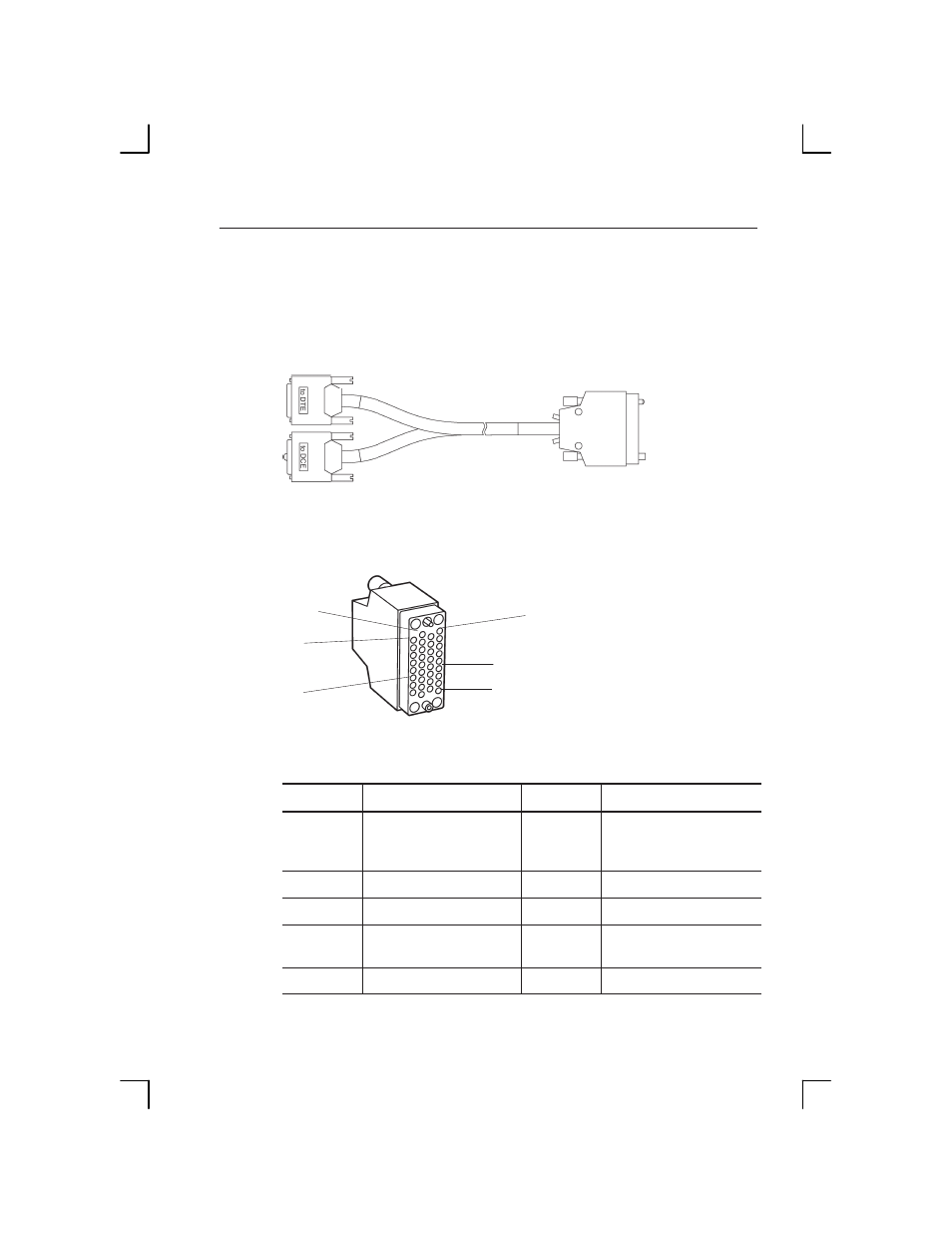

V.35 Monitor Adapter Cable.
V.35 Monitor Adapter Cable Interface.
A
B
C
Z
AA NN
Table A–25: V.35 Monitor
Pin Assignment Pin Assignment
A 101 Cable shield (con-
nected with the connector
housing) V 115 Rx Clk A (IN)
–––X
B 102 Signal ground W 113 Tx ext clk B (IN)
C 105 RTS (IN) X 115 Rx Clk B (IN)
D 106 CTS (IN) Y 114 Tx Clk A (IN)
–––AA
E 107 DSR (IN) Z Not connected
